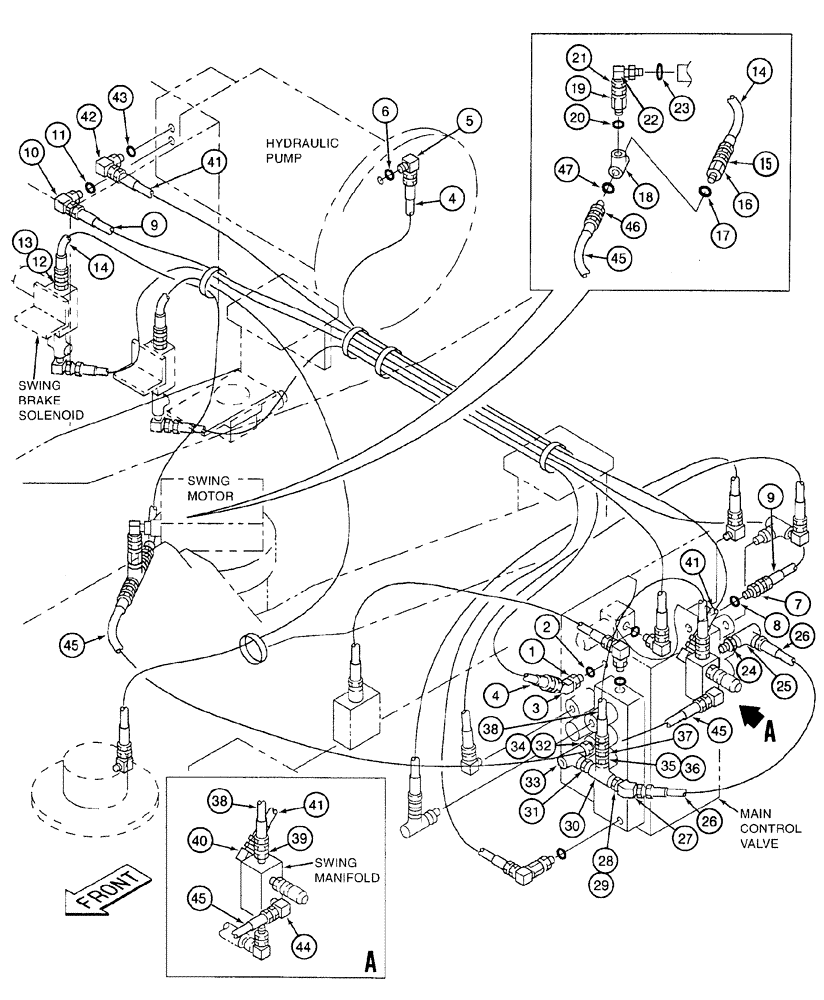

Запчасти Case 9020 (8-042) - PILOT SIGNAL LINES, PUMP REGULATOR LINES, SWING FUNCTION LINES (08) - HYDRAULICS

1

153412A1

SOCKET

REDUCER special, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

reducer

1шт.

3

153599A1

ADAPTER

elbow, 45 degree

1шт.

4

151895A1

HOSE,2450.00 mm

Pump regulator line, Front section (Main control valve port "Ps2" to pump port "P11")

1шт.

5

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

elbow, 90 degree, Includes: Ref. 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

9

152581A1

HOSE,6.3mm ID x 1900mm L

Pump regulator line, Rear section, (Main control valve port "Ps1" to pump port "P21")

1шт.

10

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 13

2шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, (not shown)

1шт.

14

152604A1

HOSE,63.00 mm ID x 1600.00 mm

Swing brake signal line (From swing brake solenoid port "A" to shuttle valve in swing motor port "P")

1шт.

15

153603A1

ADAPTER

straight

1шт.

16

152309A1

SOCKET

REDUCER special, Includes: Ref. 17

1шт.

17

154475A1

O-RING

reducer

1шт.

18

153374A1

SHUT-OFF VALVE

1шт.

19

152309A1

SOCKET

REDUCER special, Includes: Ref. 20

1шт.

20

154475A1

O-RING

reducer

1шт.

21

153601A1

ADAPTER

straight

1шт.

22

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 23

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

24

150847A1

HYD CONNECTOR

CONNECTER straight

1шт.

25

152135A1

TEE

special

1шт.

26

152388A1

HOSE,64.00 mm ID x 700.00 mm

Swing brake signal line, (From tee in port "PA23" of main control valve to shuttle valve/tee in control valve port "PB13")

1шт.

27

153599A1

ADAPTER

elbow, 45 degree

1шт.

28

152309A1

SOCKET

REDUCER special, Includes: Ref. 29

1шт.

29

154475A1

O-RING

reducer, (not shown)

1шт.

30

153374A1

SHUT-OFF VALVE

1шт.

31

152636A1

ADAPTER

straight, Includes: Ref. 32

1шт.

32

154475A1

O-RING

adapter, (not shown)

1шт.

33

152135A1

TEE

hydraulic

1шт.

34

150847A1

HYD CONNECTOR

CONNECTER straight

1шт.

35

152309A1

SOCKET

REDUCER special, Includes: Ref. 36

1шт.

36

154475A1

O-RING

reducer, (not shown)

1шт.

37

153603A1

ADAPTER

straight

1шт.

38

152276A1

HOSE,63mm ID x 550mm L

Swing signal line, (From shuttle valve/tee in main control valve port "PB13" to swing manifold)

1шт.

39

153603A1

ADAPTER

straight

1шт.

40

153596A1

ADAPTER

elbow, 90 degree

1шт.

41

152264A1

HOSE,6.3mm ID x 2200mm L

Swing auto-acceleration signal line, (Swing manifold port "PL3L" to pump port "P22:)

1шт.

42

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 43

1шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

44

152749A1

ADAPTER

elbow, 90 degree

1шт.

45

152761A1

HOSE ASSY.

57-1/16 inch (1450 mm) long, swing brake signal line, (from swing manifold to shuttle valve in swing motor port "P")

1шт.

46

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight

1шт.

47

154475A1

O-RING

adapter

1шт.
