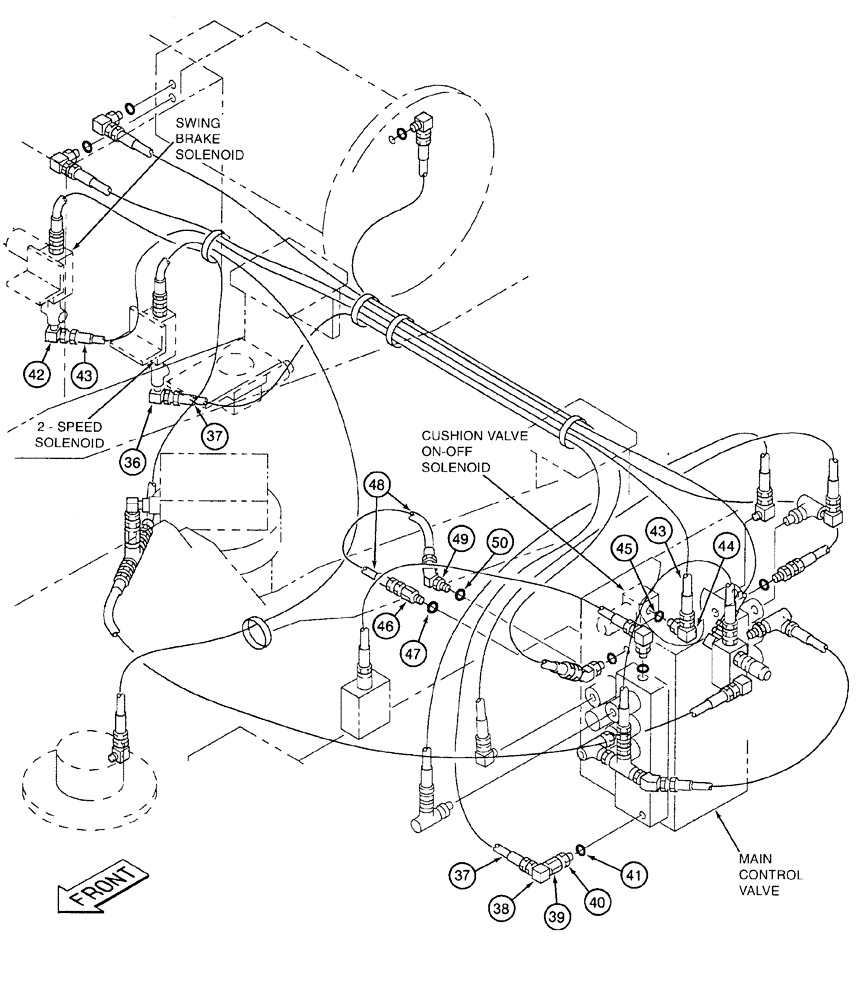

Запчасти Case 9020 (8-040) - PILOT SUPPLY LINES, CONTINUED, AUXILIARY ARM FUNCTION LINE (SEE NOTE) (08) - HYDRAULICS

36

153596A1

ADAPTER

elbow, 90 degree

1шт.

37

152270A1

HOSE,6.3mm ID x 2600mm L

Pilot supply to the main control valve, (From tee in two-speed solenoid port "P" to main control valve port "Pt1")

1шт.

38

153596A1

ADAPTER

elbow, 90 degree

1шт.

39

152754A1

SOCKET

CONNECTOR straight

1шт.

40

152309A1

SOCKET

REDUCER special, Includes: Ref. 41

1шт.

41

154475A1

O-RING

reducer

1шт.

42

153596A1

ADAPTER

elbow, 90 degree

1шт.

43

152264A1

HOSE,6.3mm ID x 2200mm L

Pilot supply to cushion valve on-off solenoid, (From cross in swing brake solenoid port "P" to cushion valve on-off solenoid port "P")

1шт.

44

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

elbow, 90 degree, Includes: Ref. 45

1шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

46

152919A1

STUD

BUSHING reducer, Includes: Ref. 47

1шт.

47

154467A1

O-RING,10.8mm ID x 2.4mm Width

bushing

1шт.

48

152911A1

HOSE ASSY.

13-3/4 inch (350 mm) long, auxiliary arm function line, (high pressure) (main control valve port "P4" to port "P3")

1шт.

49

150933A1

ELBOW

elbow, 45 degree, Includes: Ref. 50

1шт.

50

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.
