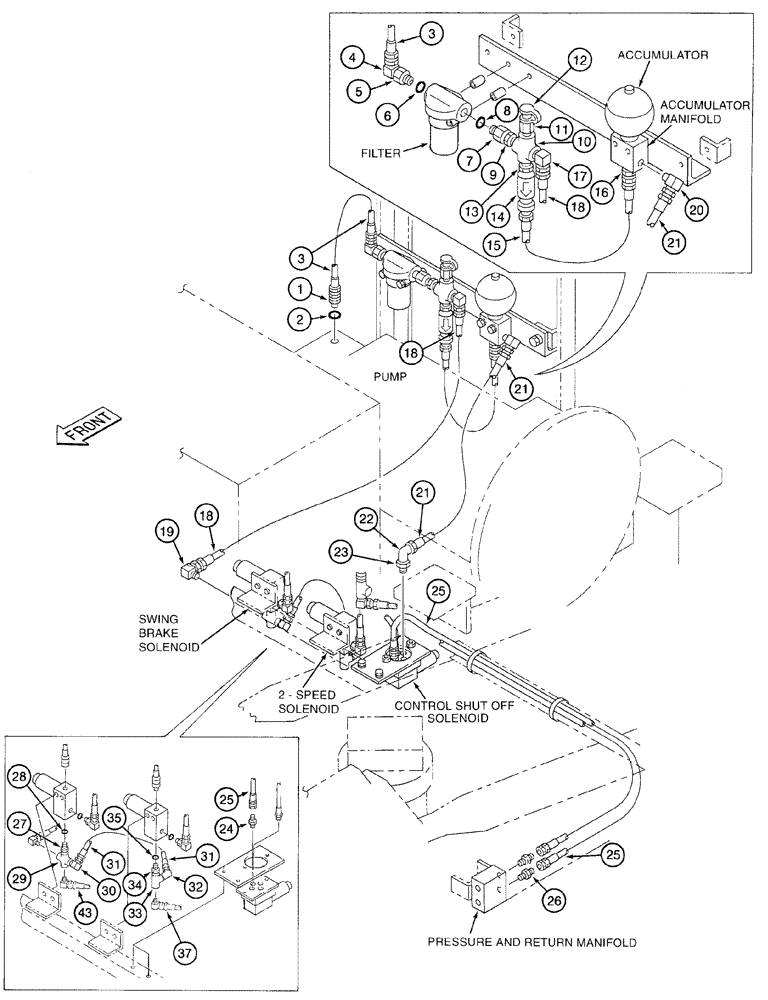

Запчасти Case 9020 (8-038) - PILOT SUPPLY LINES, INITIAL DISTRIBUTION LINES, COMPONENT SUPPLY LINES (08) - HYDRAULICS

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 2

1шт.

2

154475A1

O-RING

adapter

1шт.

3

152872A1

HOSE

27-5/8 inch (700 mm) long, pilot supply line, (pump port "Pp" to filter inlet)

1шт.

4

153495A1

ADAPTER

elbow, 90 degree

1шт.

5

152317A1

SOCKET

REDUCER special, Includes: Ref. 6

1шт.

6

154487A1

O-RING

reducer

1шт.

7

152317A1

SOCKET

REDUCER special, Includes: Ref. 8

1шт.

8

154487A1

O-RING

reducer

1шт.

9

150848A1

NIPPLE, LUBE

NIPPLE ADAPTER straight

1шт.

10

152686A1

CROSS

special

1шт.

11

150499A1

BUSHING

ADAPTER straight, 9/16 inch female straight thread x 3/8 inch PT

1шт.

12

S243647

COUPLING

ASSEMBLY quick disconnect

1шт.

13

150848A1

NIPPLE, LUBE

NIPPLE ADAPTER straight

1шт.

14

152937A1

VALVE, CHECK

1шт.

15

152797A1

HOSE

19-11/16 inch (500 mm) long, pilot supply to accumulator, (filter outlet check valve to accumulator manifold

1шт.

16

153597A1

ADAPTER

straight

1шт.

17

153596A1

ADAPTER

elbow, 90 degree

1шт.

18

151872A1

HOSE ASSY.

33-1/2 inch (850 mm) long, pilot supply to swing brake solenoid, (filter outlet to cross in swing brake solenoid port "P")

1шт.

19

153596A1

ADAPTER

elbow, 90 degree

1шт.

20

153495A1

ADAPTER

elbow, 90 degree

1шт.

21

153365A1

HOSE

29-9/16 inch (750 mm) long, pilot supply to control shutoff solenoid, (accumulator manifold to control shutoff solenoid port "P")

1шт.

22

153563A1

ELBOW

90 degree, replaced by 158860A1

1шт.

22

158860A1

ELBOW

90 degree, replaces 153563A1

1шт.

23

150848A1

NIPPLE, LUBE

NIPPLE ADAPTER straight

1шт.

24

153597A1

ADAPTER

straight

1шт.

25

152770A1

HYDRAULIC HOSE,9.50 mm ID x 1500.00 mm

Pilot supply to controls (Control shutoff solenoid port "B" to pressure and return manifold port "P")

1шт.

26

153597A1

ADAPTER

straight

1шт.

27

152899A1

HYD CONNECTOR

CONNECTOR straight, Includes: Ref. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

connector

1шт.

29

152303A1

4 WAY CONNECTION

hydraulic, (in swing brake solenoid port "P")

1шт.

30

153596A1

ADAPTER

elbow, 90 degree

1шт.

31

151862A1

HOSE,63.00 mm ID x 400.00 mm

Pilot supply to two-speed solenoid (Cross in swing brake solenoid port "P" to tee in two-speed solenoid port "P")

1шт.

32

153599A1

ADAPTER

elbow, 45 degree

1шт.

33

152135A1

TEE

solenoid inlet, (in two-speed solenoid port "P")

1шт.

34

152899A1

HYD CONNECTOR

CONNECTOR straight, Includes: Ref. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

connector

1шт.
