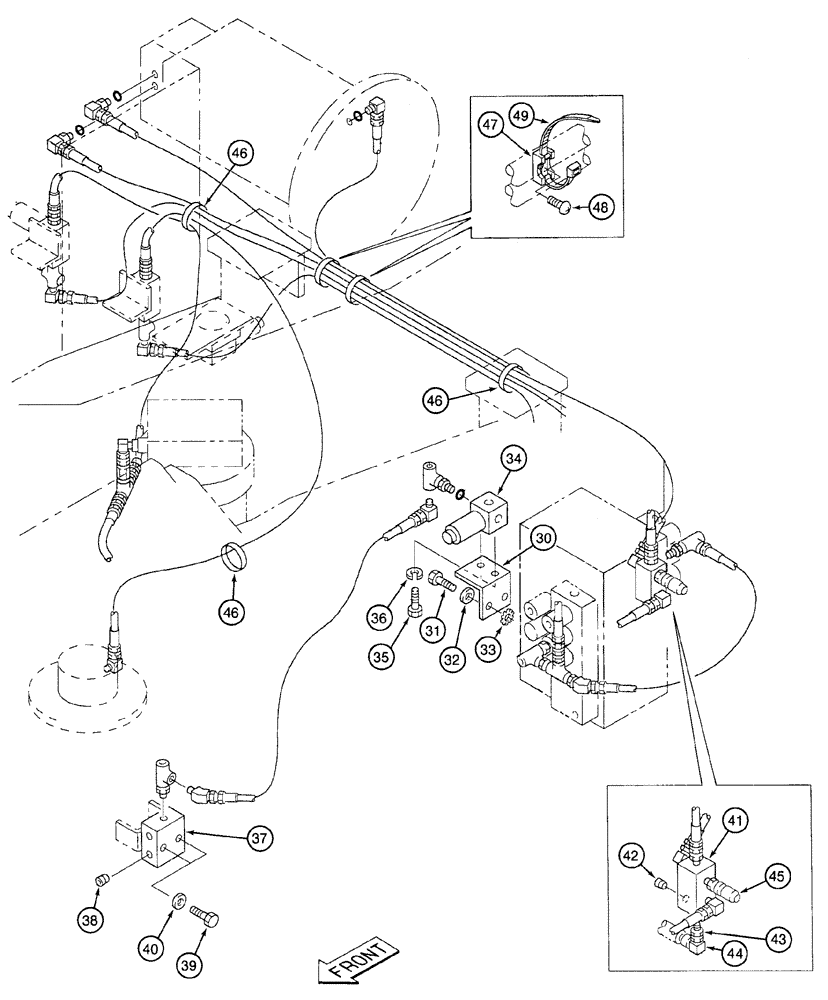

Запчасти Case 9020 (8-036) - PILOT COMPONENT MOUNTING AND HOSE SUPPORTS, CONTINUED (08) - HYDRAULICS

30

150342A1

BRACKET

mounting

1шт.

31

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

32

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

33

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

34

150844A1

VALVE

ASSEMBLY solenoid cushion, parts list figure 8-54

1шт.

35

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

2шт.

36

892-11006

LOCK WASHER,M6

2шт.

37

153049A1

MANIFOLD

hydraulic

1шт.

38

151030A1

PLUG

port

1шт.

39

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

40

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

41

150377A1

MANIFOLD

hydraulic, (in main control valve port "Pt3")

1шт.

42

151026A1

PLUG

port

1шт.

43

153601A1

ADAPTER

straight

1шт.

44

153596A1

ADAPTER

ELBOW 90 degree

1шт.

45

152191A1

BUSHING

REDUCER special pressure switch, (see Ref. 150912A1, figure 4-6)

1шт.

46

150071A1

MOUNTING CLIP

STRAP tie

1шт.

47

150860A1

COLLAR

BRACKET tie strap support

2шт.

48

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

49

150071A1

MOUNTING CLIP

STRAP

2шт.
