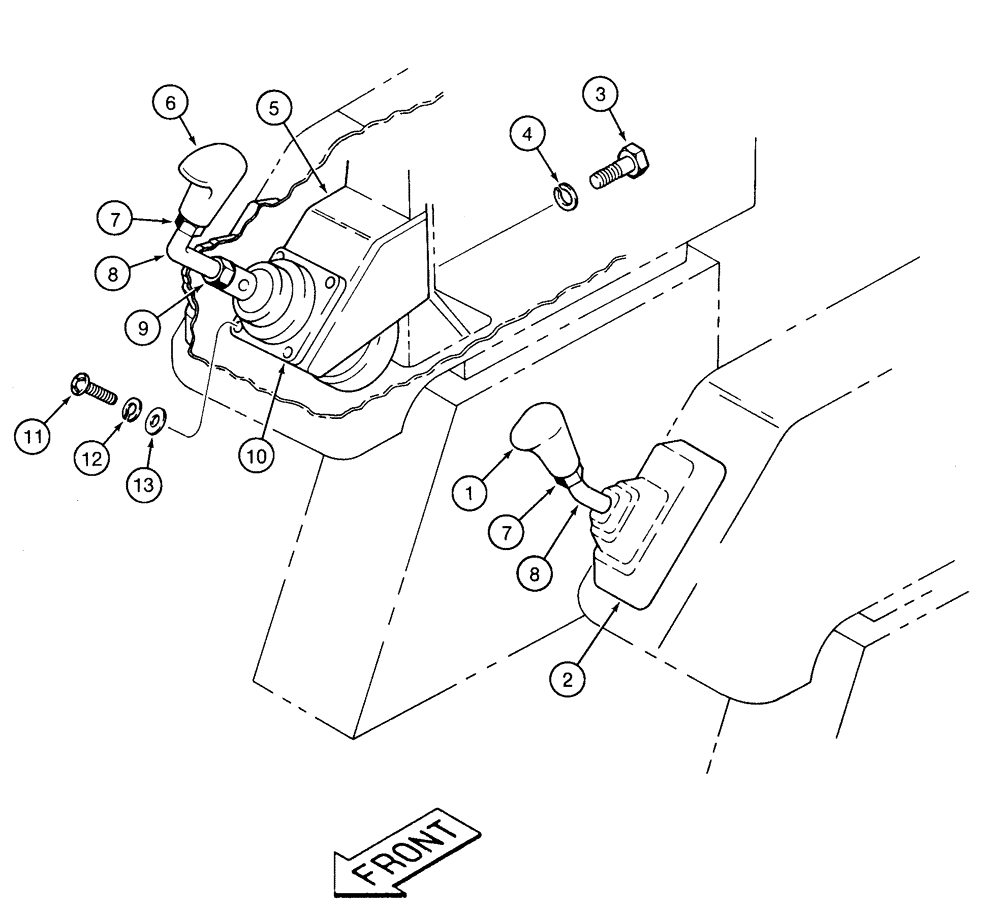

Запчасти Case 9020 (8-032) - MANUAL CONTROL VALVE MOUNTING (08) - HYDRAULICS

1

151613A1

KNOB

control, left hand controller

1шт.

2

151302A1

CAP

BOOT dust protection

2шт.

the picture of the dust boot is incorrect in many catalogs. This is a dust cap. If looking for large rectangular boot the part No. is 152398A1.

1шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

8шт.

4

892-11008

LOCK WASHER,8mm ID

8шт.

5

151027A1

BRACKET

mounting controller

2шт.

6

151616A1

KNOB

control, right hand controller

1шт.

7

150373A1

NUT

hex, 12 mm - 1.25, class 12.9 jam, special

2шт.

8

150906A1

LEVER

control equipment

2шт.

9

151154A1

JAM NUT

hex jam, special

2шт.

10

151609A1

VALVE

ASSEMBLY manual control, parts list Figure 8-47

2шт.

11

152104A1

SCREW

machine, pan head

8шт.

12

892-11006

LOCK WASHER,M6

8шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.
