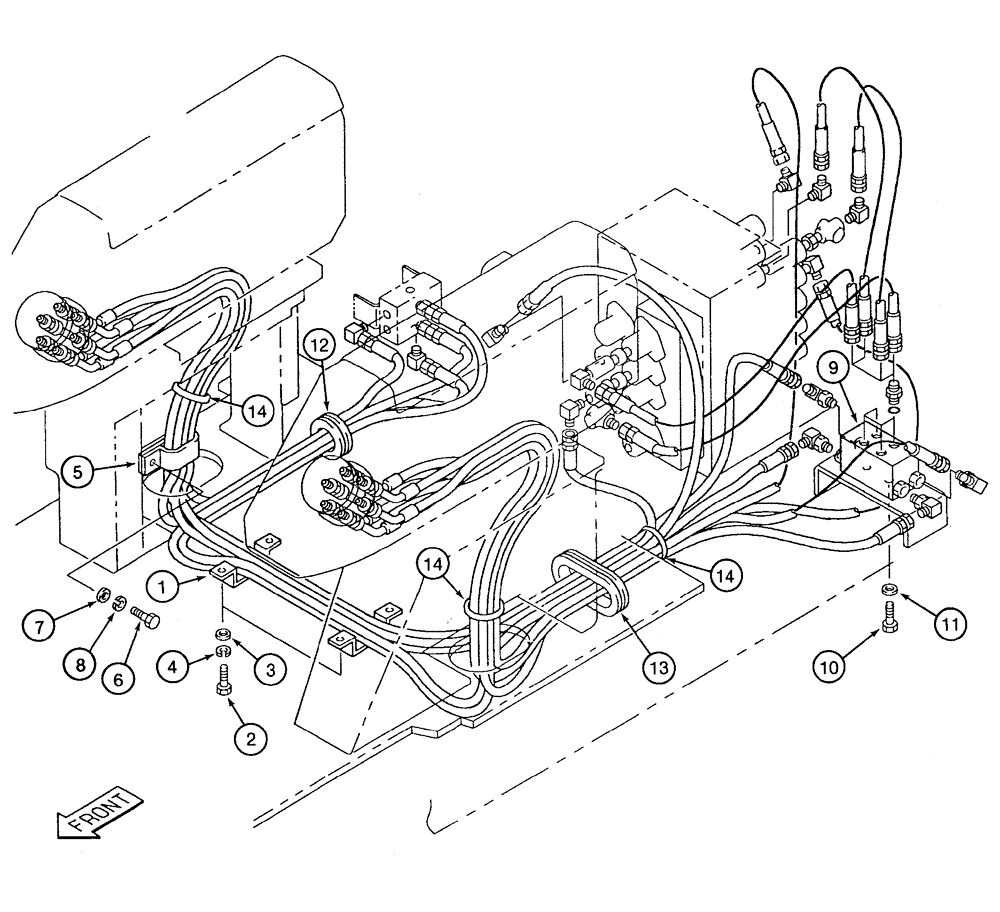

Запчасти Case 9020 (8-026) - PILOT CONTROL COMPONENTS AND HOSE SUPPORTS (08) - HYDRAULICS

1

152999A1

BRACKET

CLAMP hose

2шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

4шт.

4

892-11010

LOCK WASHER,M10

4шт.

5

152762A1

CLAMP

hose

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

8

892-11010

LOCK WASHER,M10

1шт.

9

158009A1

VALVE, CUSHION

ASSEMBLY parts list, Figure 8-103

1шт.

10

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

11

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

12

152531A1

GROMMET

rubber

1шт.

13

152966A1

GROMMET

rubber

1шт.

14

150071A1

MOUNTING CLIP

STRAP tie

1шт.
