(8-024) - REAR PUMP REGULATOR ASSEMBLY

Запчасти Case 9020 (8-024) - REAR PUMP REGULATOR ASSEMBLY (08) - HYDRAULICS

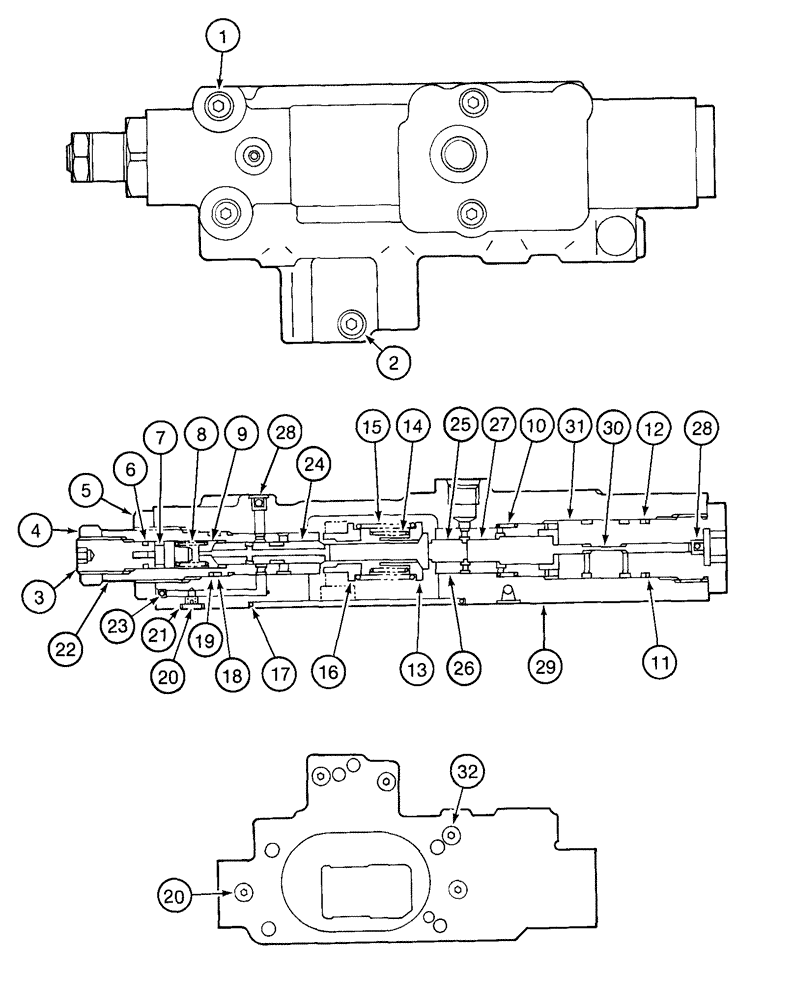

Схема запчастей Case 9020 - (8-024) - REAR PUMP REGULATOR ASSEMBLY (08) - HYDRAULICS
18
28
16
28
31
20
6
2
25
9
17
14
27
4
29
21
11
13
7
1
32
24
5
22
26
19
30
10
8
15
23
12
20
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

157077A1

REGULATOR

ASSEMBLY pump, Includes: Ref. 1 - 32

1шт.

1

863-8050

HEX SOC SCREW,M8 x 50mm, Cl 12.9

hex socket, 8 - 1.25 x 50 mm, class 12.9

4шт.

2

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

1шт.

3

156859A1

PLUG

adjusting

1шт.

4

156860A1

NUT

hex, special

1шт.

5

156862A1

NUT

hex, special

1шт.

6

154459A1

O-RING

plug

1шт.

7

156863A1

SPRING SEAT

1шт.

8

156864A1

SPRING

compression

1шт.

9

156865A1

SPRING SEAT

1шт.

10

156869A1

SPRING

compression

1шт.

11

153979A1

BACK-UP RING

1шт.

12

154499A1

O-RING

plug

1шт.

13

156871A1

SPRING SEAT

1шт.

14

156868A1

SPRING

compression

1шт.

15

156867A1

SPRING

compression

1шт.

16

156866A1

SPRING SEAT

1шт.

17

154697A1

O-RING

passage

1шт.

18

154483A1

O-RING

valve

1шт.

19

153967A1

BACK-UP RING

1шт.

20

156872A1

ORIFICE

PLUG

1шт.

21

154455A1

O-RING

plug

5шт.

157078A1

HOUSING ASSY.

ASSEMBLY regulator, Includes: Ref. 22 - 31

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE regulator

1шт.

23

NSS

NOT SOLD SEPARAT

PLUG oil passage

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL regulator

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL regulator

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE regulator

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON regulator

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG port

17шт.

29

NSS

NOT SOLD SEPARAT

HOUSING regulator

1шт.

30

NSS

NOT SOLD SEPARAT

PISTON regulator

1шт.

31

NSS

NOT SOLD SEPARAT

PLUG special, piston guide

1шт.

32

155961A1

ORIFICE

PLUG

1шт.
