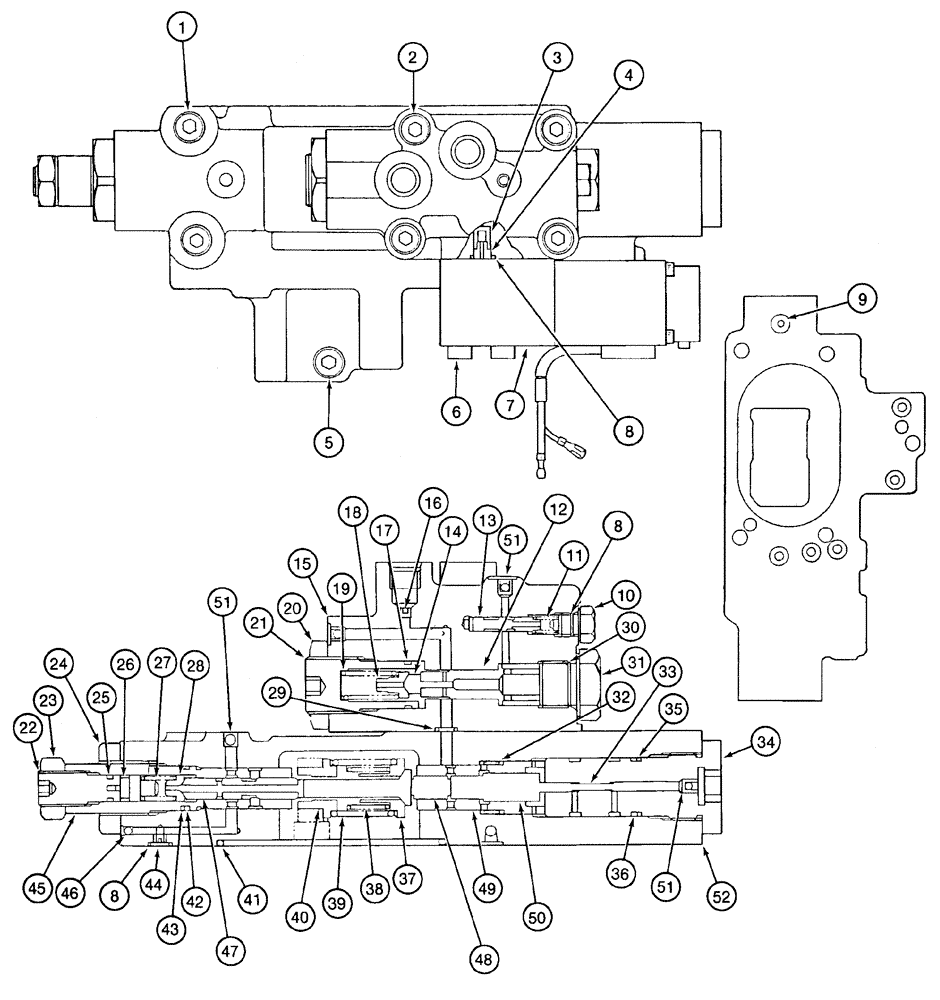

Запчасти Case 9020 (8-020) - FRONT PUMP REGULATOR ASSEMBLY (08) - HYDRAULICS

157222A1

REGULATOR

ASSEMBLY pump, Includes: Ref. 1 - 31

1шт.

1

863-8050

HEX SOC SCREW,M8 x 50mm, Cl 12.9

hex socket, 8 - 1.25 x 50 mm, class 12.9

2шт.

2

156921A1

BOLT (MACHINE)

hex socket, special

4шт.

157076A1

FILTER

ASSEMBLY regulator, Includes: Ref. 3 and 4

1шт.

3

156886A1

FILTER ASSY

regulator

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING filter

1шт.

5

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

1шт.

6

861-6045

HEX SOC SCREW,M6 x 45mm, Cl 12.9

hex socket, 6 - 1.0 x 45 mm, class 12.9

2шт.

7

156885A1

VALVE

solenoid component parts, not serviced seperately

1шт.

8

154455A1

O-RING

passage

8шт.

9

156872A1

ORIFICE

PLUG

1шт.

10

156882A1

PLUG

port

1шт.

11

156881A1

SPRING

compression

1шт.

157225A1

BODY

REGULATOR ASSEMBLY secondary, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING secondary, regulator

1шт.

16

156880A1

ORIFICE

PLUG

1шт.

17

154483A1

O-RING

valve

1шт.

18

156879A1

SPRING SEAT

1шт.

19

156878A1

SPRING

compression

1шт.

20

156862A1

NUT

hex, special plug locking

1шт.

21

156876A1

PLUG

adjusting

1шт.

22

156859A1

PLUG

adjusting

1шт.

23

156860A1

NUT

hex, special plug locking

1шт.

24

156862A1

NUT

hex, special sleeve locking

1шт.

25

154459A1

O-RING

plug

1шт.

26

156863A1

SPRING SEAT

1шт.

27

156864A1

SPRING

compression

1шт.

28

156865A1

SPRING SEAT

1шт.

29

154447A1

O-RING

passage

9шт.

30

154487A1

O-RING

plug

1шт.

31

156883A1

PLUG

port

1шт.

157222A1

REGULATOR

ASSEMBLY pump, Includes: Ref. 32 - 52

1шт.

32

156869A1

SPRING

compression

1шт.

157224A1

PISTON ASSY.

regulator, Includes: Ref. 33 and 34

1шт.

33

NSS

NOT SOLD SEPARAT

PISTON regulator

1шт.

34

NSS

NOT SOLD SEPARAT

PLUG special, piston guide

1шт.

35

153979A1

BACK-UP RING

1шт.

36

154499A1

O-RING

plug

1шт.

37

156871A1

SPRING SEAT

1шт.

38

156868A1

SPRING

compression

1шт.

39

156867A1

SPRING

compression

1шт.

40

156866A1

SPRING SEAT

1шт.

41

154697A1

O-RING

passage

1шт.

42

154483A1

O-RING

sleeve

1шт.

43

153967A1

BACK-UP RING

1шт.

44

156872A1

ORIFICE

PLUG

1шт.

157223A1

HOUSING ASSY.

REGULATOR ASSEMBLY primary, Includes: Ref. 45 - 52

1шт.

45

NSS

NOT SOLD SEPARAT

SLEEVE regulator

1шт.

46

NSS

NOT SOLD SEPARAT

PLUG oil passage

1шт.

47

NSS

NOT SOLD SEPARAT

SPOOL regulator

1шт.

48

NSS

NOT SOLD SEPARAT

SPOOL regulator

1шт.

49

NSS

NOT SOLD SEPARAT

SLEEVE regulator

1шт.

50

NSS

NOT SOLD SEPARAT

PISTON regulator

1шт.

51

NSS

NOT SOLD SEPARAT

PLUG passage

21шт.

52

NSS

NOT SOLD SEPARAT

HOUSING regulator

1шт.
