Запчасти Case 9020 (8-016) - HYDRAULIC PUMP - FLANGE END (08) - HYDRAULICS

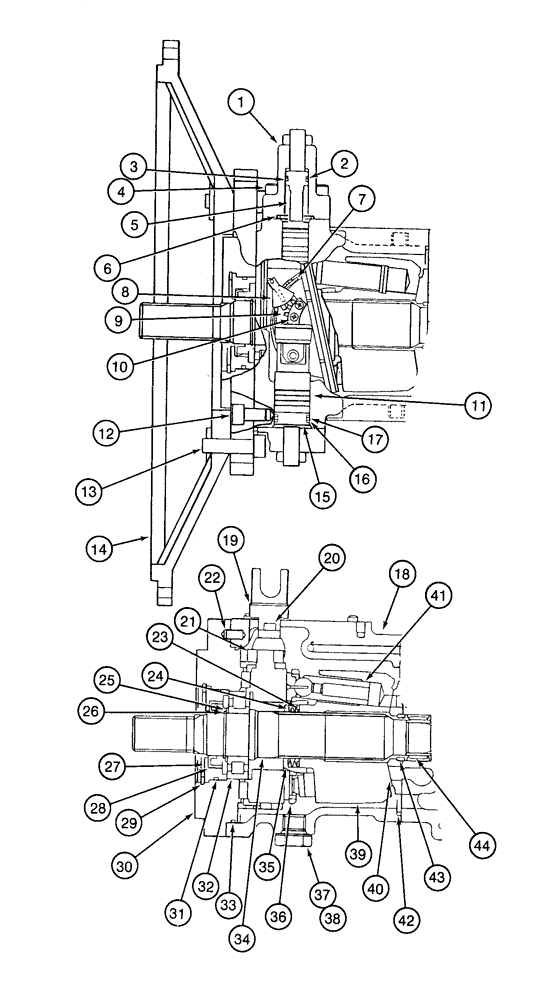

Схема запчастей Case 9020 - (8-016) - HYDRAULIC PUMP - FLANGE END (08) - HYDRAULICS
30
31
16
38
27
34
37
20
25
8
1
24
28
2
22
13
18
11
26
35
29
15
36
23
4
43
33
5
40
21
6
17
7
42
41
44
39
32
10
12
14
3
9
19

Артикул

Название

Примечание

Количество

157066A1

PUMP

ASSEMBLY hydraulic, Includes: Ref. 1 - 44

1шт.

1

156806A1

CAP

HOUSING valve

2шт.

2

153964A1

BACK-UP RING

2шт.

3

154479A1

O-RING

valve

2шт.

4

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

8шт.

5

156807A1

SPRING SEAT

2шт.

6

154509A1

O-RING

valve housing

2шт.

7

156805A1

BEARING, ROLLER

roller

4шт.

8

156804A1

GUIDE

gear, swash plate positioning

4шт.

9

156830A1

GEAR

swash plate positioning

4шт.

10

156829A1

SCREW

fillister head, special

8шт.

11

156828A1

PISTON

regulator

2шт.

12

156827A1

BOLT (MACHINE),Hex Skt

hex socket, special

8шт.

13

157075A1

BOLT

hex socket, special

4шт.

14

157074A1

FLANGE

mounting

1шт.

15

156826A1

STOP

piston

2шт.

16

153987A1

BACK-UP RING

2шт.

17

154509A1

O-RING

regulator

2шт.

18

156833A1

CASE

HOUSING pump flange end

1шт.

19

156832A1

STAY

BRACKET retaining

2шт.

20

861-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

hex socket, 6 - 1.0 x 16 mm, class 12.9

4шт.

21

156831A1

SLIDE

metal

2шт.

22

156825A1

COTTER PIN

dowel

5шт.

23

157070A1

SEAT

spring

2шт.

24

156846A1

KIT

compression

2шт.

25

156852A1

SPACER

bearing

2шт.

26

157071A1

RING

retaining bearing

2шт.

27

156856A1

CASE

RETAINER shaft seal

1шт.

28

156855A1

OIL SEAL

shaft

1шт.

29

156854A1

RING, SNAP

RING SNAP

1шт.

30

156853A1

FLANGE

COVER end housing

1шт.

31

154667A1

O-RING

shaft seal

2шт.

32

156851A1

BEARING, ROLLER

roller

2шт.

33

156850A1

O-RING

end cover

2шт.

34

156849A1

SHAFT

drive

1шт.

157069A1

HOLDER

RETAINER ASSEMBLY piston, Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

BUSHING spherical

2шт.

36

NSS

NOT SOLD SEPARAT

RETAINER piston

2шт.

37

156847A1

PLUG

port

3шт.

38

154487A1

O-RING

plug

3шт.

157067A1

CYLINDER BLOCK

BLOCK ASSEMBLY, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

BLOCK cylinder

1шт.

40

NSS

NOT SOLD SEPARAT

PLATE valve

1шт.

41

NSS

NOT SOLD SEPARAT

PISTON pump

9шт.

42

154767A1

O-RING

passage

2шт.

43

156844A1

COLLAR

shaft

2шт.

44

156843A1

NEEDLE BEARING

needle

2шт.

RACE inner, is part number 156840A1. see Ref. 38 on next Figure.

1шт.

Выбрано товаров: 48
