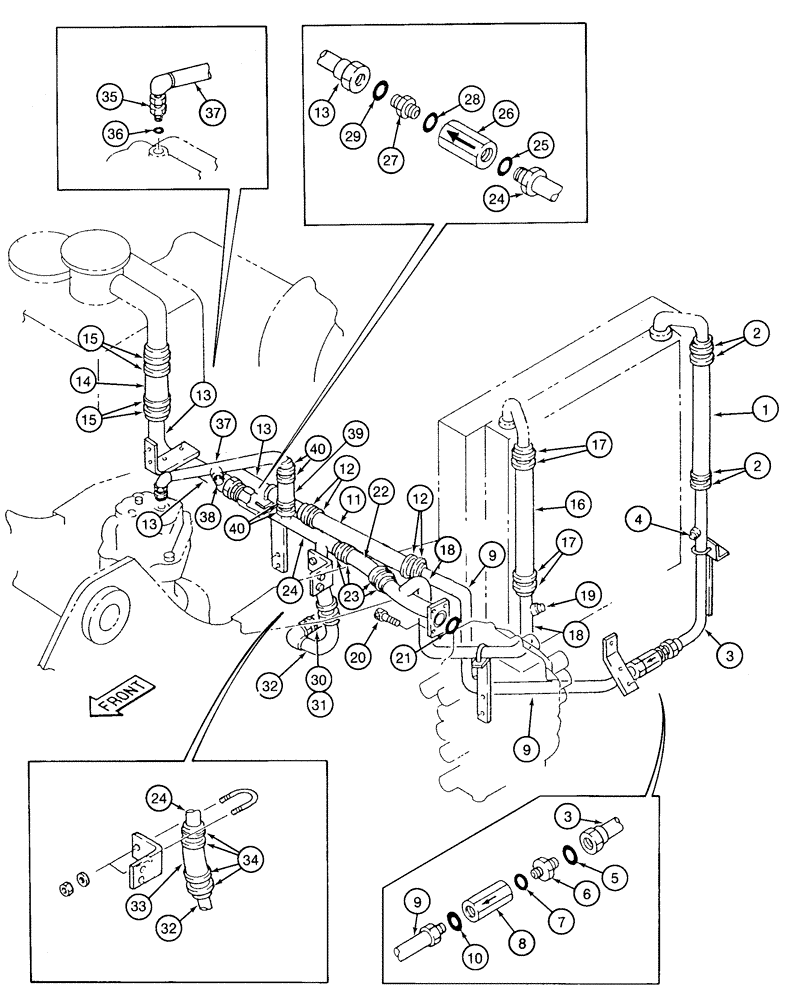

Запчасти Case 9020 (8-014) - COOLING SYSTEM SUPPLY AND RETURN LINES (08) - HYDRAULICS

1

150820A1

HYDRAULIC HOSE,34.00 mm ID x 500.00 mm

Cooler return (From cooler to cooler return tube)

1шт.

2

150885A1

COLLAR

adjustable

4шт.

3

150422A1

TUBE,34 mm OD, 525, 245.5 mm Length

cooler return, (cooler return hose to check valve)

1шт.

4

151030A1

PLUG

port

1шт.

5

150830A1

O-RING

cooler return tube

1шт.

6

151468A1

UNION

CONNECTOR straight, Includes: Ref. 7

1шт.

7

154523A1

O-RING

connector

1шт.

8

153481A1

VALVE, CHECK

1шт.

9

150621A1

TUBE

cooler return, (check valve to cooler return line hose), Includes: Ref. 10

1шт.

10

154523A1

O-RING

cooler return tube

1шт.

11

151958A1

HOSE,34.00 mm ID x 450.00 mm

Cooler return line (Cooler return tube to reservoir return tube)

1шт.

12

150885A1

COLLAR

adjustable

4шт.

13

150420A1

TUBE

reservoir return, (cooler and control valve return lines to reservoir return hose)

1шт.

14

152788A1

HYDRAULIC HOSE

8-5/8 inch (220 mm) long, Reservoir return, (Reservoir return, Serial Range: tube-reservoir)

1шт.

15

150887A1

CLAMP

adjustable

4шт.

16

150820A1

HYDRAULIC HOSE,34.00 mm ID x 500.00 mm

Cooler supply (Cooler recirculating tube to cooler)

1шт.

17

150885A1

COLLAR

adjustable

4шт.

18

150619A1

TUBE

cooler recirculating tube, (from main control valve port "T" to cooler supply hose)

1шт.

19

151030A1

PLUG

port

2шт.

20

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

21

154569A1

O-RING

cooler recirculating tube

1шт.

22

151939A1

HOSE,42.70 mm ID x 250.00 mm

Main control valve return (From cooler recirculating tube to control valve return tube)

1шт.

23

150887A1

CLAMP

adjustable

4шт.

24

150177A1

TUBE,42.6 mm OD, 345, 236 mm Length

control valve return, (control valve return hoses to check valve), Includes: Ref. 25

1шт.

25

154559A1

O-RING

control valve, return tube

1шт.

26

153269A1

VALVE, CHECK

1шт.

27

151471A1

UNION

ADAPTER straight, Includes: Ref. 28

1шт.

28

154559A1

O-RING

adapter

1шт.

29

150562A1

O-RING

reservoir, return tube

1шт.

30

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, Includes: Ref. 31

1шт.

31

154523A1

O-RING

adapter, not shown

1шт.

32

152632A1

TUBE,132.9, 135 mm Length

auxiliary control valve return, (auxiliary control valve port "T2" to control valve return tube)

1шт.

33

151950A1

HOSE,34.00 mm ID x 172.00 mm

Auxiliary control valve return (Auxiliary control valve return tube to control valve return tube)

1шт.

34

150885A1

COLLAR

adjustable

4шт.

35

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, Includes: Ref. 36

1шт.

36

154523A1

O-RING

adapter

1шт.

37

150193A1

TUBE,34 mm OD, 267, 208 mm Length

swing motor return, (swing motor port "C" to swing motor return hose)

1шт.

38

151030A1

PLUG

port

1шт.

39

151950A1

HOSE,34.00 mm ID x 172.00 mm

Swing motor return (Swing motor return tube to control valve return tube)

1шт.

40

150885A1

COLLAR

adjustable

4шт.
