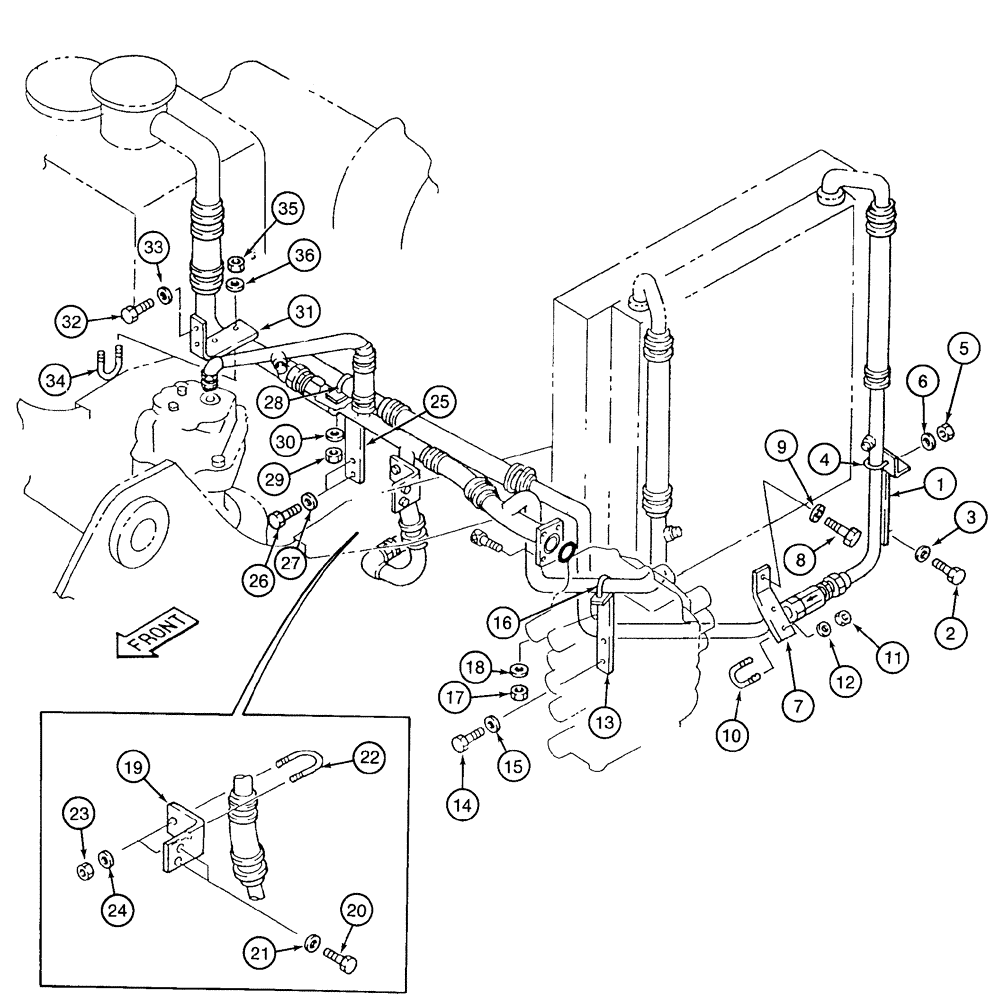

Запчасти Case 9020 (8-012) - COOLING SYSTEM LINE MOUNTING COMPONENTS (08) - HYDRAULICS

1

150304A1

BRACKET

mounting

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

3

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

4

152061A1

U-BOLT,M10 x 46mm W x 60mm L

BOLT "U" type

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

7

150622A1

BRACKET

mounting

1шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

9

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

1шт.

10

152061A1

U-BOLT,M10 x 46mm W x 60mm L

BOLT "U" type

1шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

12

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

13

150623A1

BRACKET

mounting

1шт.

14

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

15

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

16

152061A1

U-BOLT,M10 x 46mm W x 60mm L

BOLT "U" type

1шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

18

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

19

150169A1

BRACKET

mounting

1шт.

20

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

21

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

22

152061A1

U-BOLT,M10 x 46mm W x 60mm L

BOLT "U" type

1шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

24

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

25

150307A1

BRACKET

mounting

1шт.

27

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

28

152061A1

U-BOLT,M10 x 46mm W x 60mm L

BOLT "U" type

1шт.

29

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

30

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

31

150302A1

BRACKET

mounting

1шт.

32

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

33

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

34

152065A1

U-BOLT,M10 x 56mm W x 68mm L

BOLT "U" type

1шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

36

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

26

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
