(8-008) - CONTROL VALVE SUPPLY LINES

Запчасти Case 9020 (8-008) - CONTROL VALVE SUPPLY LINES (08) - HYDRAULICS

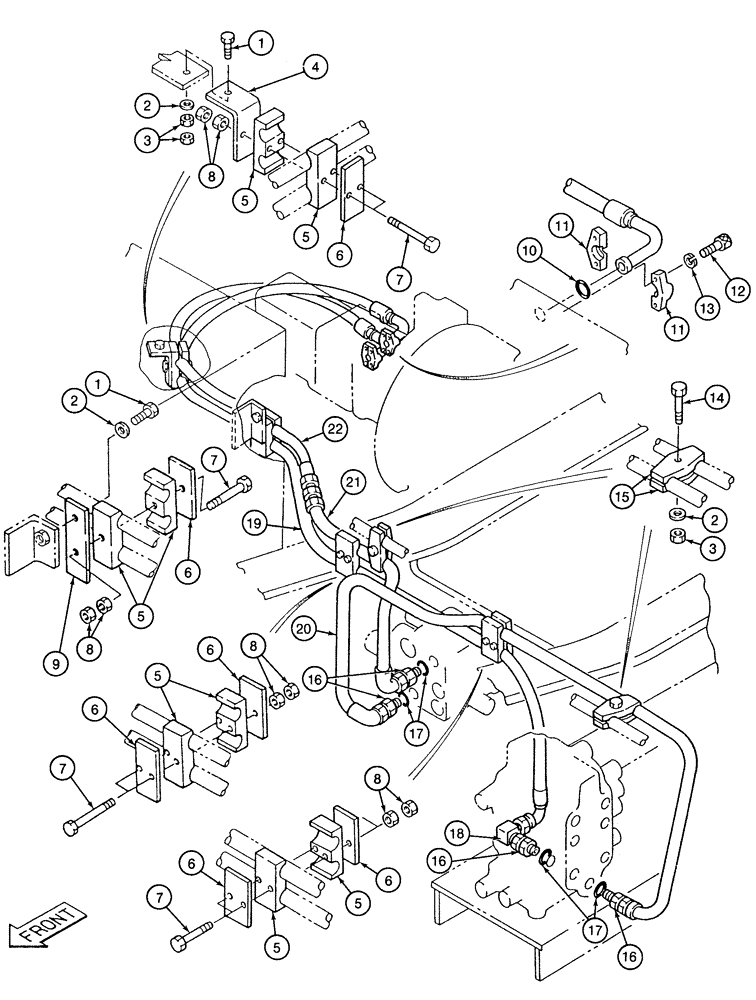

Схема запчастей Case 9020 - (8-008) - CONTROL VALVE SUPPLY LINES (08) - HYDRAULICS
2
12
16
5
2
5
20
6
5
17
19
8
6
16
5
5
14
4
6
2
7
8
18
10
17
21
15
6
22
8
13
5
6
1
7
7
1
9
11
3
3
11
7
16
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

2

150988A1

WASHER

flat, special, 12 mm

5шт.

3

829-1312

NUT,M12 x 1.75, Cl 10

4шт.

4

152921A1

BRACKET

mounting

1шт.

5

152875A1

HOSE CLAMP

hose and tube

8шт.

6

152876A1

PLATE, SPACER

PLATE,SPACER clamp

6шт.

7

828-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

8шт.

8

829-1310

NUT,M10, Cl 10

Hex

16шт.

9

152994A1

PLATE

clamp

1шт.

10

153628A1

O-RING

hose

2шт.

11

153458A1

FLANGE

split

4шт.

12

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

13

112310A1

WASHER

lock, special

8шт.

14

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

15

152742A1

COLLAR

tube

4шт.

16

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight, Includes: Ref. 17

4шт.

17

154503A1

O-RING

adapter

1шт.

18

150643A1

ELBOW

90 degree

1шт.

19

150361A1

HOSE ASSY.

105-15/16 inch (2690 mm) long, main control valve supply line, (pump port "P1" to main control valve port "P2")

1шт.

20

150462A1

TUBE,1372.6, 408.8 mm Length

control valve interconnecting line, (auxiliary control valve port "PB" to main control valve port "P1")

1шт.

21

150457A1

TUBE,353.5, 148.1 mm Length

auxiliary control valve supply line, (auxiliary supply hose to auxiliary control valve port "P")

1шт.

22

150241A1

HOSE ASSY.

63 inch (1600 mm) long, auxiliary control valve supply line, (pump port "P2" to auxiliary supply tube)

1шт.
