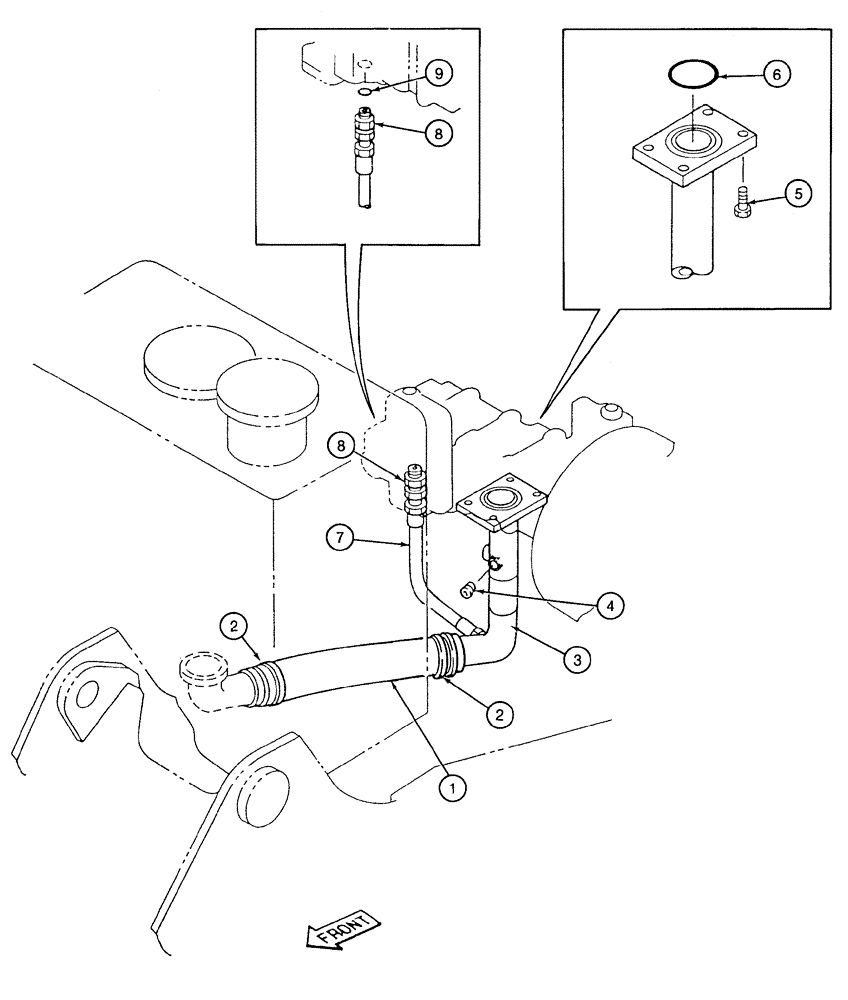

Запчасти Case 9020 (8-006) - RESERVOIR-TO-PUMP SUCTION LINE (08) - HYDRAULICS

1

150404A1

HOSE

15-3/4 inch (400 mm) long, pump supply (reservoir to suction tube)

1шт.

2

150893A1

CLAMP

adjustable

8шт.

3

150625A1

TUBE,60.5 mm OD, 287.8, 170.8 mm Length

suction pump, supply hose to pump port 'S')

1шт.

4

151030A1

PLUG

port

1шт.

5

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Full Thd

4шт.

6

154679A1

O-RING

tube

1шт.

7

157062A1

HYDRAULIC HOSE,19.00 mm ID x 420.00 mm

Pilot Pump Supply Line (Suction Tube to Pump Port "A1")

1шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight, Includes: Ref. 9

1шт.

9

154503A1

O-RING

adapter

1шт.
