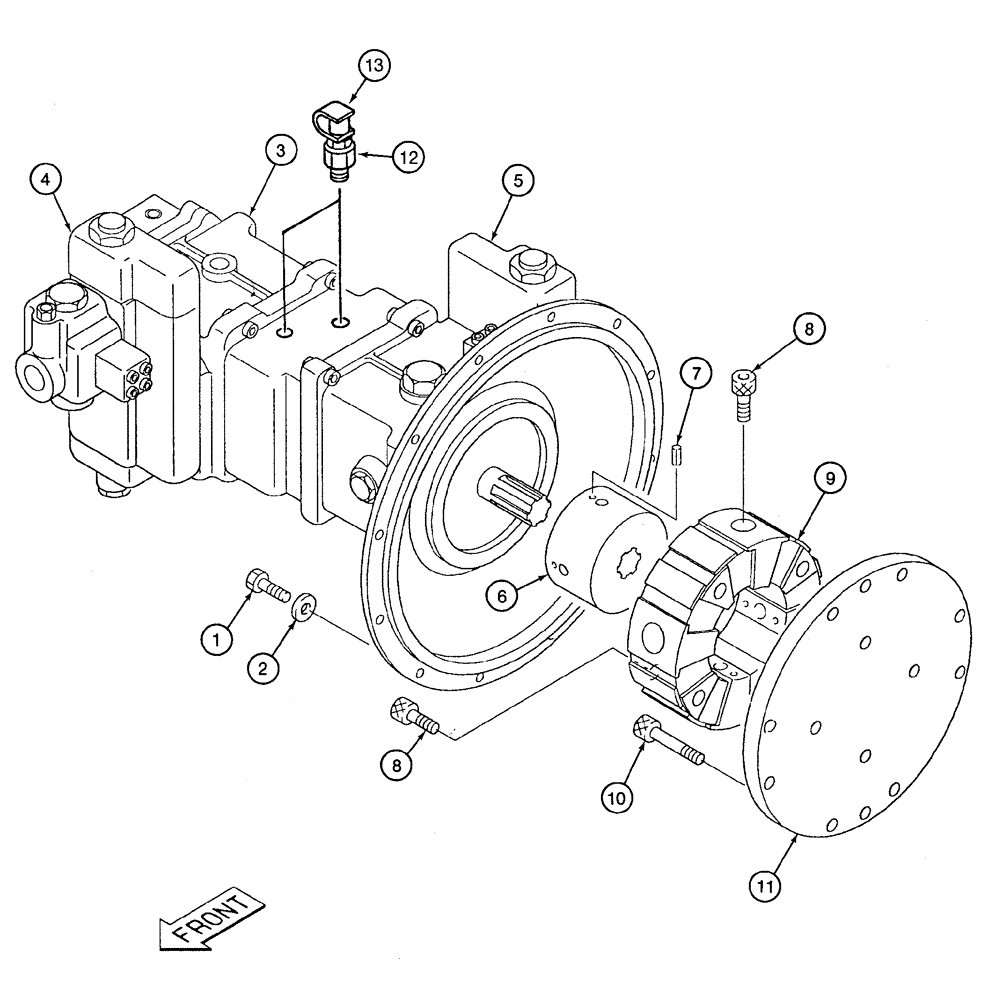

Запчасти Case 9020 (8-004) - HYDRAULIC PUMP AND COUPLING (08) - HYDRAULICS

1

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Replaced by 627-10030

9шт.

2

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

9шт.

150611A1

PUMP, HYDRAULIC

ASSEMBLY oil, Includes: Ref. 3 - 5

1шт.

3

157066A1

PUMP

ASSEMBLY hydraulic, parts list Figures 8-16 and 8-18

1шт.

4

157222A1

REGULATOR

ASSEMBLY pump front, parts list Figures 8-20 and 8-22

1шт.

5

157077A1

REGULATOR

ASSEMBLY pump rear, parts list Figure 8-24

1шт.

6

152680A1

SPLINED COUPLING

splined

1шт.

150612A1

FLEXIBLE COUPLING

DAMPER ASSEMBLY vibration, Includes: Ref. 7 - 9

1шт.

7

738-1510

LOCK PIN,M5 x 10, Slotted

4шт.

8

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

hex socket, 16 - 2.0 x 50 mm, class 12.9

8шт.

9

152578A1

COUPLING

DAMPER vibration

1шт.

10

862-16100

HEX SOC SCREW,M16 x 100mm, Cl 12.9

hex socket, 16 - 2.0 x 100 mm, class 12.9

4шт.

11

157144A1

PUMP

PLATE drive

1шт.

12

151136A1

BUSHING

ADAPTER straight, special

2шт.

13

S243647

COUPLING

ASSEMBLY quick disconnect

2шт.

1

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Replaces 628-10030

9шт.
