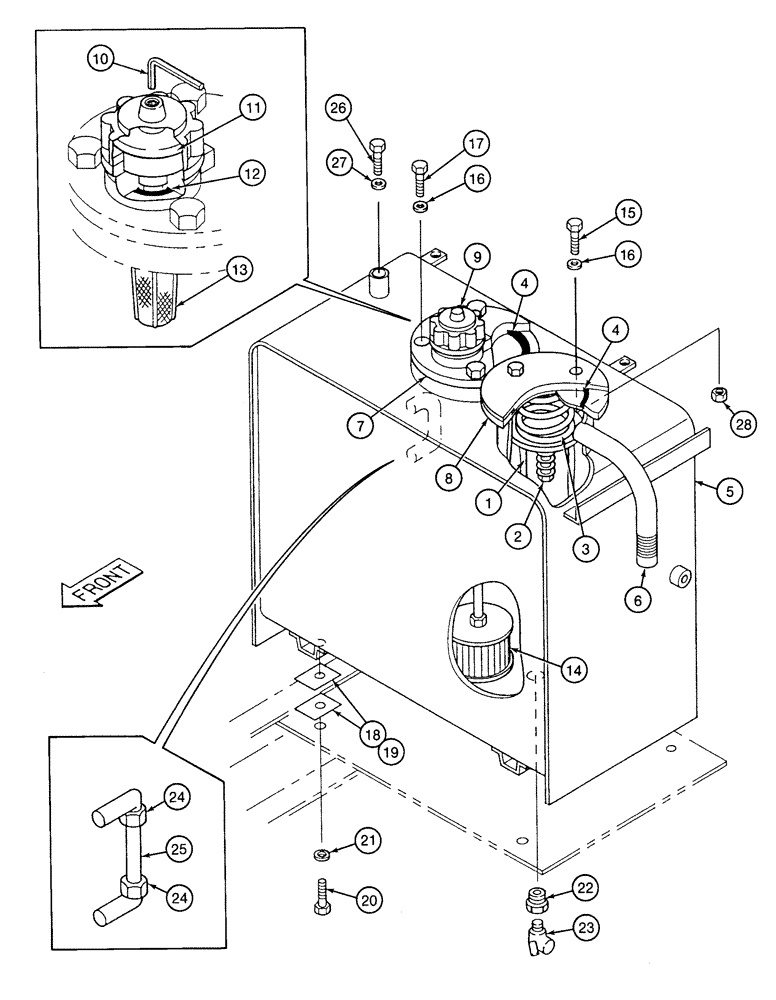

Запчасти Case 9020 (8-002) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

153190A1

HYDRAULIC OIL FILTER

return oil

1шт.

2

153191A1

VALVE

relief reservoir

1шт.

3

151623A1

COMPRESSION SPRING

1шт.

4

151629A1

O-RING,134.4mm ID x 3.4mm Width

cover

1шт.

158861A1

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY hydraulic oil, component parts, not serviced separately, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

RESERVOIR oil

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE reservoir

1шт.

7

153451A1

COVER

air breather

1шт.

8

152597A1

COVER

return filter

1шт.

151665A1

BREATHER

ASSEMBLY air, Includes: Ref. 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

COVER breather

1шт.

10

153611A1

CROSS SPANNER

WRENCH Allen, 4 mm, air breather filter

1шт.

11

151670A1

FILTER, ENGINE OIL

FILTER, OIL

1шт.

12

150579A1

O-RING

filter

1шт.

13

151673A1

STRAINER ASSY.

hydraulic oil

1шт.

14

151620A1

STRAINER ASSY.

hydraulic oil

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

8шт.

17

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

18

150166A1

SHIM

1/32 inch (0.8 mm) thick

1шт.

19

150479A1

SHIM

5/64 inch (2.0 mm) thick

1шт.

20

31141R1

BOLT,Hex, M16 x 2 x 35mm, Grade 10.9

Hex, M16 x 35, 10.9, Full Thd

4шт.

21

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

22

151073A1

BUSHING

reducer

1шт.

23

150962A1

COCK, DRAIN

VALVE reservoir

1шт.

24

150527A1

ELBOW

90 degree, special metric, x 1/4 inch PT oil level gauge

2шт.

25

150531A1

TUBE,8 mm ID, 10 mm OD, 122 mm Length

sight gauge, oil level

1шт.

26

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

28

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

15

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
