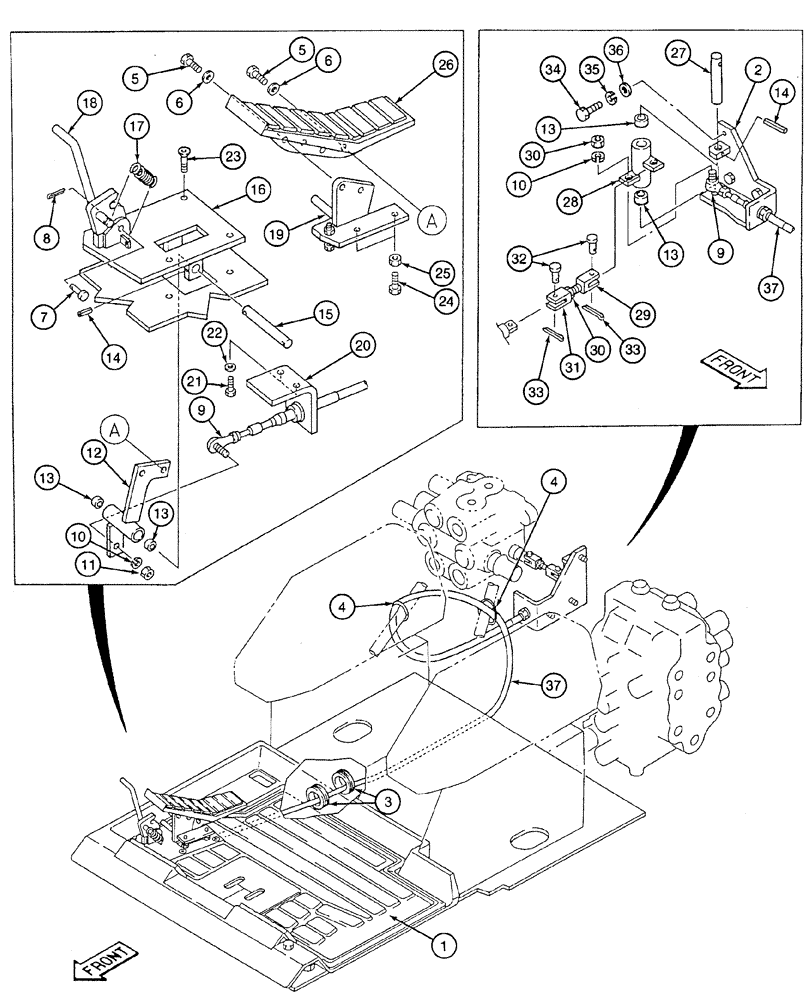

Запчасти Case 9020 (6-18) - AUXILIARY HYDRAULIC EQUIPMENT CONTROLS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
158610A1
KIT
auxiliary hydraulic controls, see note, Includes: Ref. 1 - 37
1шт.
1
156644A1
FLOOR MAT
1шт.
2
156656A1
BRACKET
cable support
1шт.
3
152529A1
GROMMET
rubber
2шт.
40
150498A1
MOUNTING CLIP
tie
1шт.
5
150555A1
BOLT,High Strength, Hex, M10 x 30mm
hex, 10 - 1.5 x 30 mm, class 10.9
4шт.
6
150604A1
WASHER
special
4шт.
7
156652A1
HEADED PIN
1шт.
9
151963A1
END
CONNECTOR cable
2шт.
10
892-11008
LOCK WASHER,8mm ID
2шт.
11
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
1шт.
12
156645A1
LINK ASSY.
control
1шт.
13
150505A1
BEARING, NEEDLE
needle
4шт.
14
738-1632
LOCK PIN,M6 x 32, Slotted
roll, 6 x 32 mm
2шт.
15
156646A1
PIN
dowel
1шт.
16
156650A1
BRACKET
mounting
1шт.
17
156653A1
TENSION SPRING
1шт.
18
158117A1
LEVER
foot
1шт.
19
156647A1
BRACKET
pedal
1шт.
20
156654A1
BRACKET
cable
1шт.
21
627-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd
2шт.
22
150409A1
WASHER
flat, special, 10.5 x 21 x 3.2 mm
2шт.
23
150403A1
SCREW,Spcl, Flat Hd Csk, M10 x 20mm
hex socket, flat head, 10 - 1.5 x 20 mm
4шт.
24
156648A1
BOLT,Hex, M10 x 35mm, Full Thd
special
2шт.
25
156649A1
NUT
special
2шт.
26
150524A1
PEDAL
foot control, auxiliary equipment control
1шт.
27
156658A1
PIN
dowel
1шт.
28
156657A1
LINK ASSY.
control
1шт.
29
157124A1
YOKE
UNIVERSAL JOINT YOKE control
1шт.
30
829-1308
NUT,M8, Cl 10
2шт.
31
156661A1
YOKE
UNIVERSAL JOINT YOKE CLEVIS
1шт.
32
156660A1
HEADED PIN
2шт.
33
153077A1
COTTER PIN
CLIP hair type
2шт.
34
626-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd
hex, full threads, 12 - 1.75 x 25 mm, class 10.9
3шт.
35
892-10012
LOCK WASHER,M12
3шт.
36
150988A1
WASHER
flat, special, 12 mm
3шт.
37
156655A1
CABLE PULLING GRIP
control
1шт.
158894A1
KIT
auxiliary hydraulic components
1шт.
Kit 158610A1 and Kit 158894A1 together comprise the automatic equipment option.
1шт.
Выбрано товаров: 40
