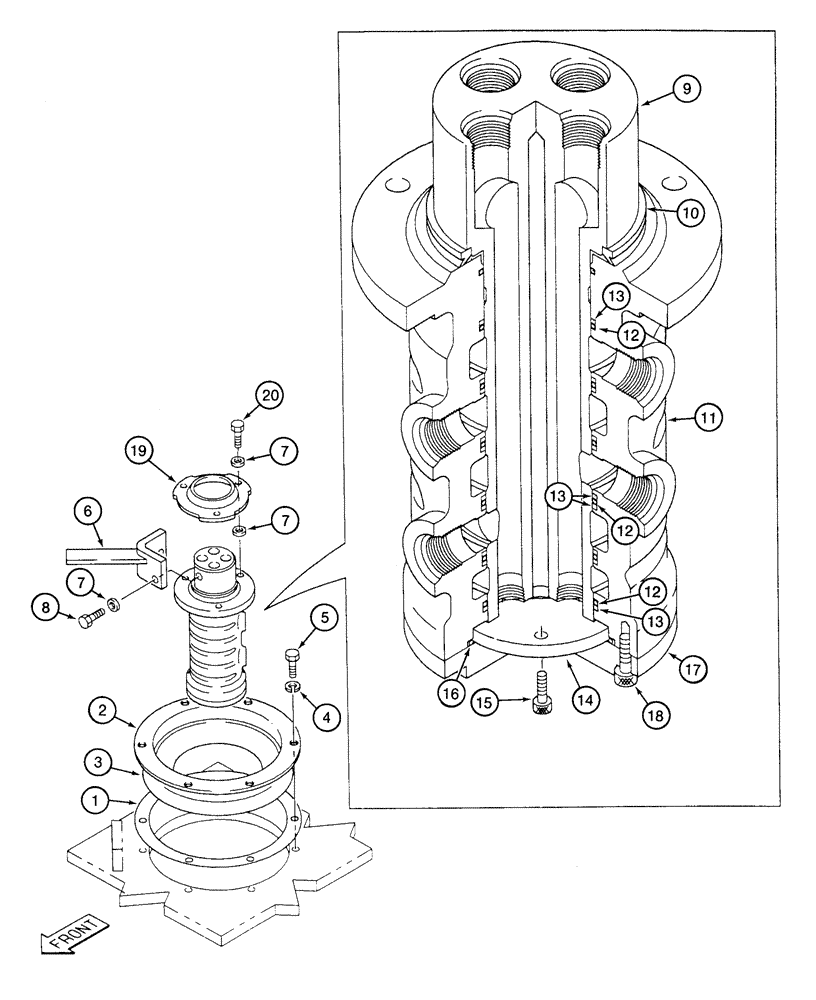

Запчасти Case 9020 (6-16) - HYDRAULIC SWIVEL (06) - POWER TRAIN

1

152596A1

RUBBER SEAL

rubber

1шт.

2

152635A1

RETAINER

RETAINER wiper ring

1шт.

3

151009A1

SEALING RING

RING wiper

1шт.

4

892-10012

LOCK WASHER,M12

6шт.

5

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

6шт.

6

150096A1

BAR

ARM swivel anti-rotation

1шт.

7

150811A1

WASHER

flat, special, 12 mm, replaces washer 150988A1

3шт.

8

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd, Replaces 626-12030

3шт.

152945A1

HYDRAULIC SWIVEL

ASSEMBLY, Includes: Ref. 9 - 18

1шт.

9

152990A1

SHAFT

swivel

1шт.

10

151814A1

SEAL,72mm ID x 84mm OD x 11mm Thk

RING swivel shaft

1шт.

11

152947A1

ROTOR

hydraulic swivel

1шт.

12

152363A1

O-RING,79.4 mm ID

rotor

7шт.

13

150598A1

BACK-UP RING

, Serial Range: rotor-shaft

10шт.

14

152992A1

PLATE

thrust

1шт.

15

861-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

4шт.

16

154713A1

O-RING

thrust plate, replaces 150615A1

1шт.

17

152949A1

COVER

BASE swivel

1шт.

18

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

4шт.

19

151390A1

COVER

swivel

1шт.

20

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.
