Запчасти Case 9020 (6-14) - TRACK DRIVE HYDRAULIC CIRCUIT, HYDRAULIC SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN

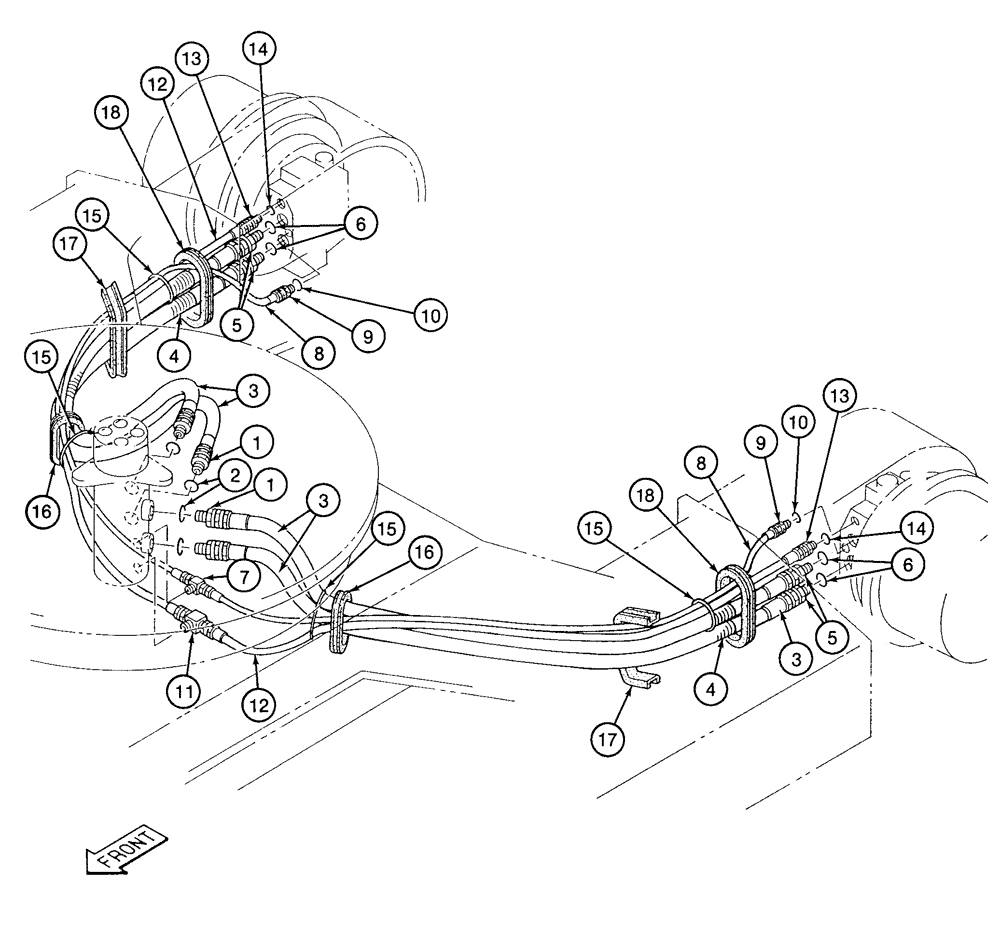

Схема запчастей Case 9020 - (6-14) - TRACK DRIVE HYDRAULIC CIRCUIT, HYDRAULIC SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN
7
5
16
6
5
18
4
16
6
8
15
10
2
1
11
3
15
15
12
3
1
14
4
8
15
3
9
14
10
9
18
17
13
17
13
12

Артикул

Название

Примечание

Количество

1

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight, at swivel, Includes: Ref. 2

4шт.

2

154503A1

O-RING

, Serial Range: O-RING-swivel

1шт.

3

150058A1

HOSE ASSY.

side of swivel, to track drive motors

4шт.

4

151046A1

GUARD

hose

4шт.

5

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight, to track drive motor, Includes: Ref. 6

4шт.

6

154503A1

O-RING

at track drive motor

1шт.

7

152509A1

TEE

special, rear side port of swivel

1шт.

8

152773A1

HOSE ASSY.

72-13/16 inch (1850 mm) long, swivel to track drive motors

2шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, at track drive motor, Includes: Ref. 10

2шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

11

152195A1

TEE

special, at lower rear side of swivel

1шт.

12

150063A1

HOSE ASSY.

72-13/16 inch (1850 mm) long, lower rear side of swivel

2шт.

13

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

straight, at track drive motor, Includes: Ref. 14

2шт.

14

154487A1

O-RING

adapter

1шт.

15

150071A1

MOUNTING CLIP

STRAP tie

4шт.

16

150809A1

CUSHION

GROMMET rubber

2шт.

17

152579A1

CUSHION

GROMMET rubber

2шт.

18

151010A1

CUSHION

GROMMET rubber

2шт.

Выбрано товаров: 18
