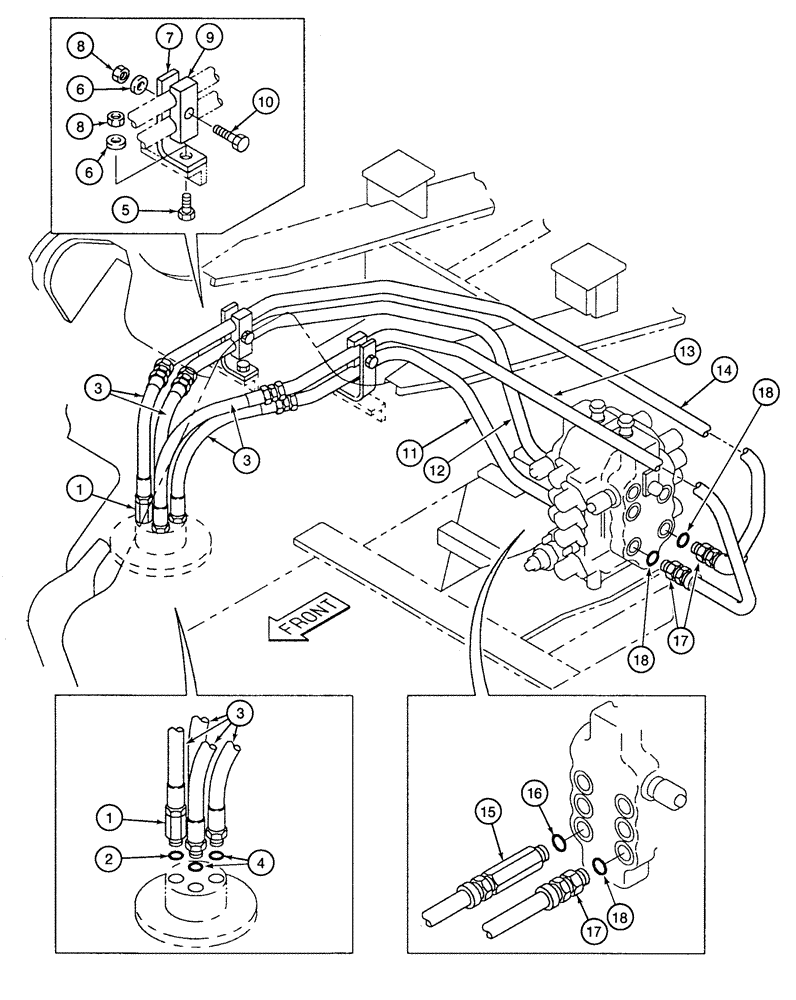

Запчасти Case 9020 (6-12) - TRACK DRIVE HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRAULIC SWIVEL (06) - POWER TRAIN

1

152012A1

ELEC CONNECTOR

straight, Includes: Ref. 2

1шт.

2

154503A1

O-RING

connector

1шт.

3

152556A1

HYDRAULIC HOSE,19.00 mm ID x 490.00 mm

At swivel, Includes Ref. 4

4шт.

5

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

6

150988A1

WASHER

flat, special, 12 mm

4шт.

7

152559A1

BRACKET

mounting

2шт.

8

829-1312

NUT,M12 x 1.75, Cl 10

2шт.

9

152085A1

COLLAR

tube

2шт.

10

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

2шт.

11

150580A1

TUBE,27.2 mm OD, 531, 445.3 mm Length

lower, right-hand front valve, port to swivel

1шт.

12

150590A1

TUBE

lower, right-hand rear valve, Serial Range: port-swivel

1шт.

13

150584A1

TUBE,27.2 mm OD, 985, 548.6 mm Length

lower, left-hand front valve, port to swivel

1шт.

14

150587A1

TUBE

lower, left-hand rear valve, Serial Range: port-swivel

1шт.

15

152019A1

ELEC CONNECTOR

ADAPTER straight, Includes: Ref. 16

1шт.

16

154503A1

O-RING

adapter

1шт.

17

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight, Includes: Ref. 18

3шт.

18

154503A1

O-RING

adapter

1шт.
