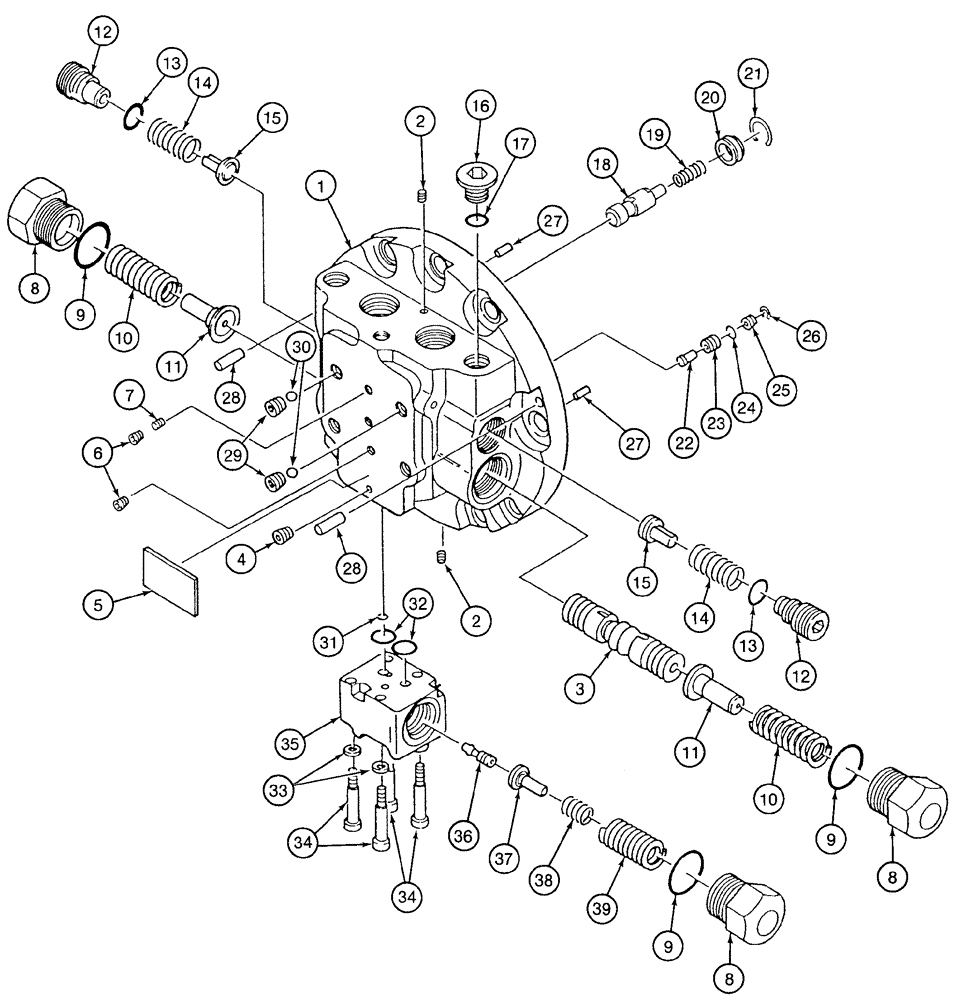

Запчасти Case 9020 (6-08) - TRACK DRIVE MOTOR, COVER AND VALVES (06) - POWER TRAIN

158399A1

MOTOR

ASSEMBLY track drive, includes parts on Figures 6-6 and 6-8, replaces motor 157079A1, Includes: Ref. 1 - 39

2шт.

155825A1

FLANGE ASSY

rear, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

FLANGE rear

1шт.

2

155680A1

EXPANDER

PLUG

4шт.

3

NSS

NOT SOLD SEPARAT

SPOOL 2-speed control

1шт.

4

151026A1

PLUG

port

2шт.

5

NSS

NOT SOLD SEPARAT

PLATE identification

1шт.

6

155490A1

PLUG

port

2шт.

7

NSS

NOT SOLD SEPARAT

PLUG orifice

2шт.

8

155474A1

PLUG

hex spring, retaining

3шт.

9

154539A1

O-RING

plug

3шт.

10

156074A1

SPRING

2-speed control valve

2шт.

11

155595A1

STOP

POPPET valve

2шт.

12

155476A1

PLUG

check valve

2шт.

13

154491A1

O-RING

check valve plug

2шт.

14

156073A1

SPRING

check valve

2шт.

15

155943A1

VALVE

POPPET check

2шт.

16

155492A1

PLUG

port

1шт.

17

154487A1

O-RING

port plug

1шт.

18

155958A1

VALVE

SPOOL travel motor

1шт.

19

156104A1

SPRING

valve spool

1шт.

20

155679A1

STOP

SEAT spring

1шт.

21

155678A1

RING

retaining

1шт.

22

155940A1

VALVE

PLUNGER check

1шт.

23

156068A1

SPRING

return

1шт.

24

154459A1

O-RING

plunger

1шт.

25

155581A1

SEAT, VALVE

plunger

1шт.

26

155580A1

RING

retaining

1шт.

27

837-6016

DOWEL,M6 x 16

dowel, 6 x 16 mm, hardened

2шт.

28

837-10032

DOWEL,10mm OD x 32mm L

dowel, 10 x 32 mm, hardened

2шт.

29

151026A1

PLUG

port

2шт.

30

155957A1

BALL

steel

2шт.

31

154455A1

O-RING

valve body, small

1шт.

32

154491A1

O-RING

large

2шт.

33

156188A1

SPRING WASHER

lock

4шт.

34

861-8060

HEX SOC SCREW,M8 x 60mm, Cl 12.9

hex socket, 8 - 1.25 x 60 mm, class 12.9

4шт.

155774A1

BODY

HOUSING ASSEMBLY spool, Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

HOUSING spool

1шт.

36

NSS

NOT SOLD SEPARAT

SPOOL travel motor

1шт.

37

155681A1

STOP

PLUNGER valve

1шт.

38

156102A1

SPRING

inner

1шт.

39

156103A1

SPRING

outer

1шт.
