(6-06) - TRACK DRIVE MOTOR, SHAFT, CYLINDER BLOCK AND PISTONS

Запчасти Case 9020 (6-06) - TRACK DRIVE MOTOR, SHAFT, CYLINDER BLOCK AND PISTONS (06) - POWER TRAIN

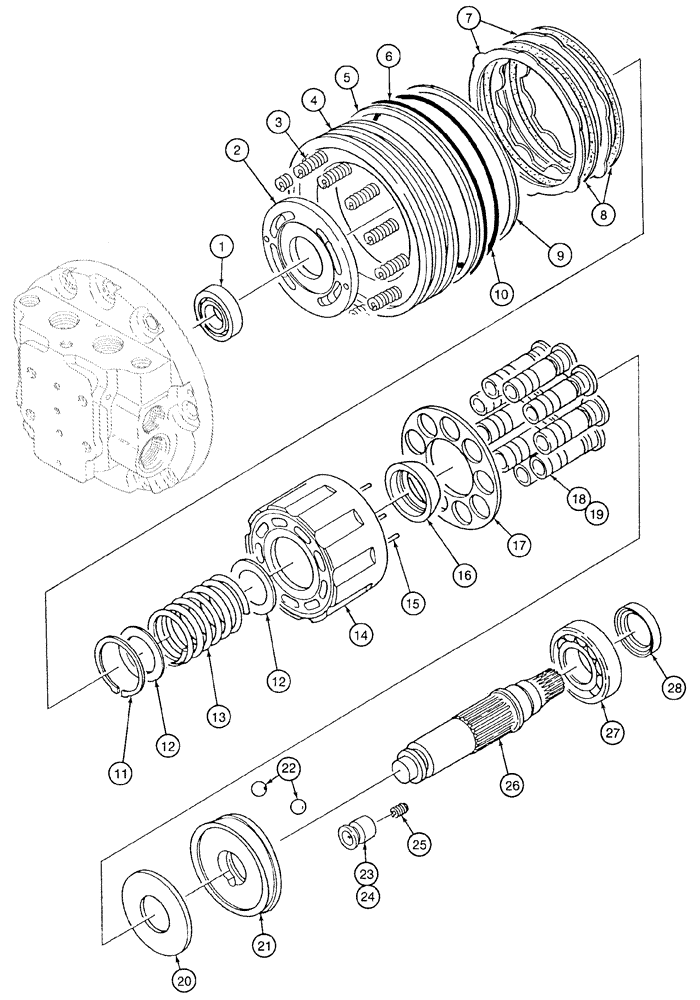

Схема запчастей Case 9020 - (6-06) - TRACK DRIVE MOTOR, SHAFT, CYLINDER BLOCK AND PISTONS (06) - POWER TRAIN
20
14
8
10
3
13
27
23
15
7
28
16
12
1
9
19
25
11
18
5
6
22
21
26
4
17
2
12
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

158399A1

MOTOR

ASSEMBLY track drive includes, parts on Figures 6-6 and 6-8, replaces motor assembly 157079A1, Includes: Ref. 1 - 28

2шт.

1

156152A1

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

shaft, closed end

1шт.

2

156304A1

PLATE

timing

1шт.

3

156066A1

SPRING

piston return

12шт.

4

155938A1

PISTON

brake

1шт.

5

154268A1

BACK-UP RING

1шт.

6

154884A1

O-RING

piston

1шт.

7

156294A1

PLATE

disc

2шт.

8

156293A1

PLATE

friction

2шт.

9

154250A1

BACK-UP RING

1шт.

10

154860A1

O-RING

piston

1шт.

11

800-2162

SNAP RING,M62, Int

1шт.

12

156191A1

WASHER

special, replaces 157080A1

2шт.

13

156067A1

SPRING

return

1шт.

14

157081A1

COVER

BLOCK

1шт.

15

157082A1

ROLLER

piston

6шт.

16

157083A1

BALL

thrust

1шт.

17

156354A1

PLATE

retainer

1шт.

155819A1

PISTON

ASSEMBLY track drive motor with shoes, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON travel motor

9шт.

19

NSS

NOT SOLD SEPARAT

SHOE travel motor

9шт.

20

155397A1

PLATE

thrust

1шт.

21

156353A1

PLATE

swash

1шт.

22

155956A1

BALL

steel

2шт.

155820A1

PISTON

ASSEMBLY track drive motor, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON travel motor

1шт.

24

NSS

NOT SOLD SEPARAT

SHOE piston

1шт.

25

156101A1

SPRING

return

1шт.

26

155368A1

SHAFT

travel motor

1шт.

27

156151A1

ROLLER BEARING,40 mm ID x 80 mm OD x 18 mm

shaft splined end

1шт.

28

153919A1

OIL SEAL

1шт.
