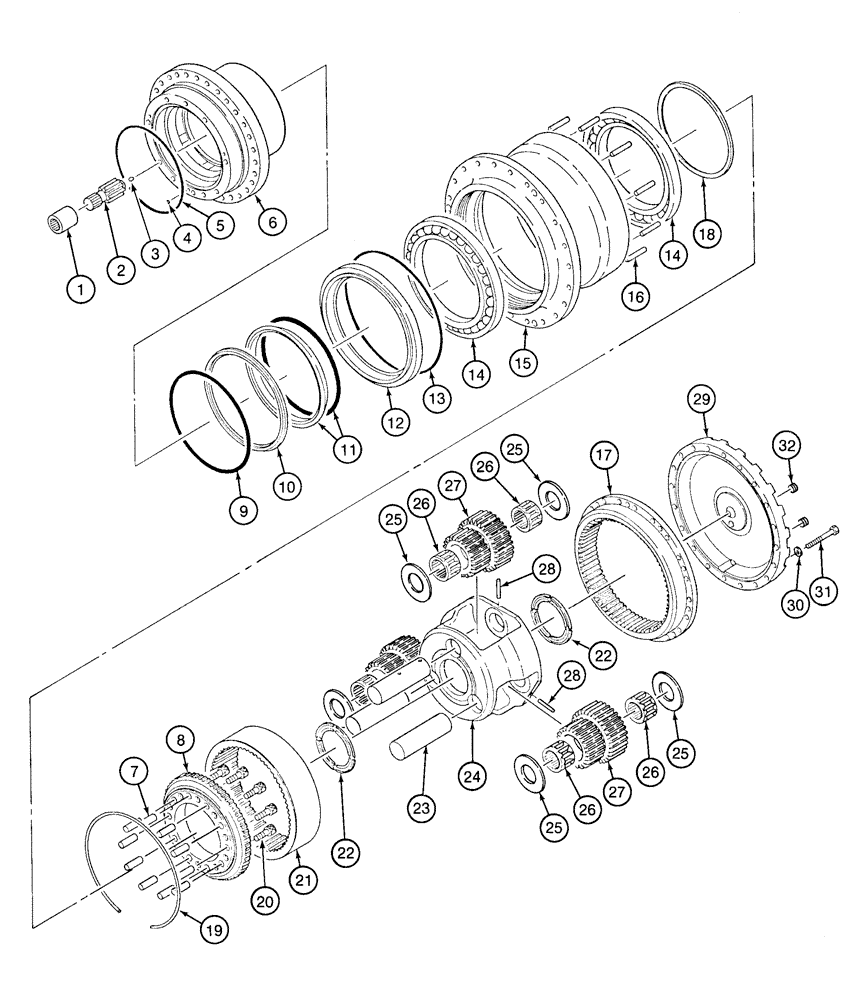

Запчасти Case 9020 (6-04) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

155817A1

TRANSMISSION

ASSEMBLY without track drive, motor final drive, Includes: Ref. 1 - 32

2шт.

1

155256A1

COUPLING

internal tooth

1шт.

2

155290A1

SUN GEAR

1шт.

3

155583A1

BALL

steel

1шт.

4

154455A1

O-RING

spindle, small

2шт.

5

154921A1

O-RING

spindle, large

1шт.

155822A1

SPINDLE

ASSEMBLY transmission, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

SPINDLE transmission

1шт.

7

155676A1

COTTER PIN

dowel, special, Serial Range: spindle-gear

10шт.

8

NSS

NOT SOLD SEPARAT

GEAR coupling

1шт.

9

154993A1

O-RING

spindle

1шт.

10

155587A1

SPACER

seal

1шт.

11

161318A1

SEAL KIT

KIT floating, replaces floating seal 153861A1

1шт.

12

155588A1

SEALING RING

RING hub

1шт.

13

158111A1

O-RING

hub

1шт.

14

156125A1

BEARING, BALL,230 mm ID x 300 mm OD x 35 mm

ball hub

2шт.

155821A1

HUB ASSY.

transmission, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

HUB transmission

1шт.

16

155675A1

PIN

special, straight hub to coupling gear

10шт.

17

NSS

NOT SOLD SEPARAT

GEAR ring

1шт.

18

155582A1

SPACER

special

1шт.

19

155598A1

RING, SNAP

RING SNAP retaining

1шт.

21

155288A1

RING

GEAR

1шт.

20

863-16030

HEX SOC SCREW,M16 x 30mm, Cl 12.9

hex socket, 16 - 2.0 x 30 mm, class 12.9

10шт.

21

155288A1

RING

GEAR

1шт.

22

155375A1

BEARING SET,80 mm ID x 102 mm OD x 5.7 mm

thrust

2шт.

23

155367A1

SHAFT

cluster gear

3шт.

24

155677A1

CARRIER

cluster gear

1шт.

25

158113A1

COLLAR

spring seat

6шт.

26

158112A1

NEEDLE BEARING,40mm ID x 60mm OD x 40mm W

needle, caged internal, cluster

6шт.

27

155289A1

GEAR

cluster

3шт.

28

155597A1

COTTER PIN

lock shaft

3шт.

29

156352A1

COVER

final drive

1шт.

30

156189A1

LOCK WASHER

lock

20шт.

31

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

20шт.

32

151033A1

PLUG

hex socket, special port

3шт.
