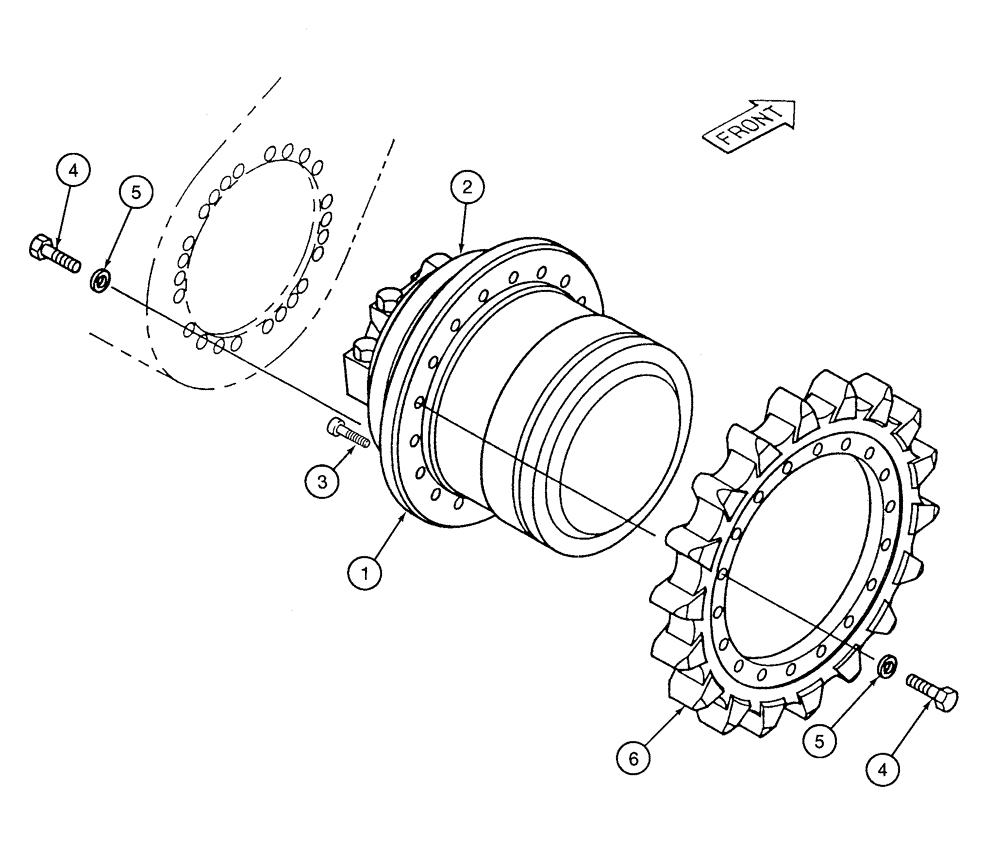

Запчасти Case 9020 (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN

158046A1

MOTOR

ASSEMBLY track drive, replaces track drive motor assembly 150047A1, Includes: Ref. 1 - 3

2шт.

1

155817A1

TRANSMISSION

ASSEMBLY without track drive motor parts, list Figure 6-4

1шт.

2

158399A1

MOTOR

ASSEMBLY track drive parts, list Figure 6-6 and 6-8

1шт.

3

863-16040

HEX SOC SCREW,M16 x 40mm, Cl 12.9

hex socket, 16 - 2.0 x 40 mm, class 12.9

9шт.

4

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

90шт.

5

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

90шт.

6

150051A1

SPROCKET ASSY.

track drive

2шт.
