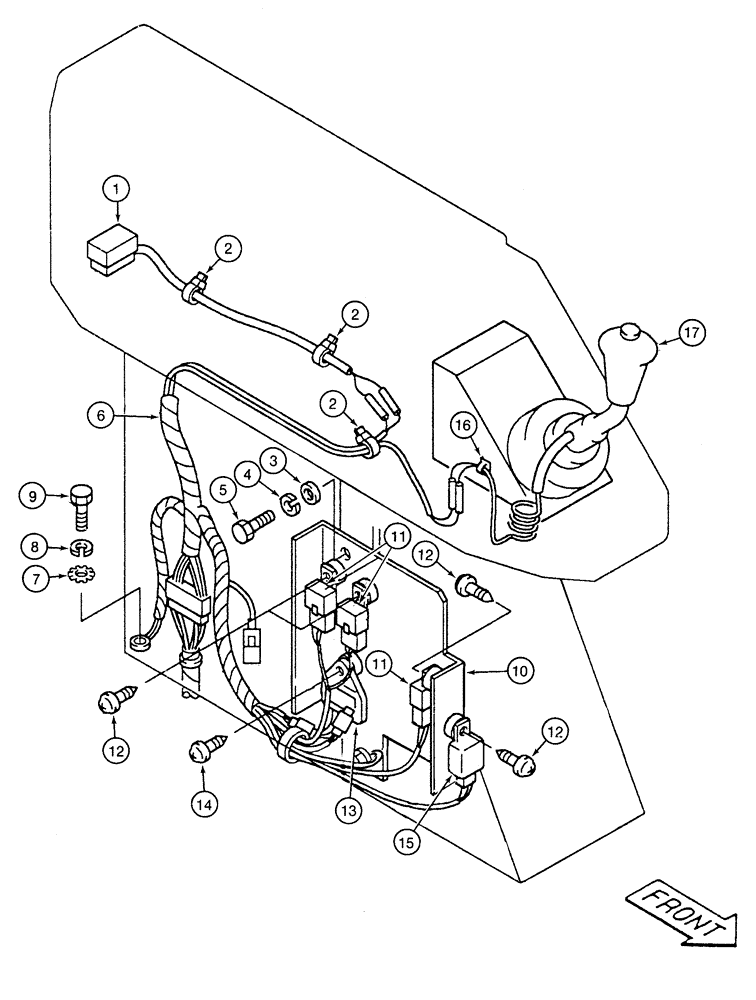

Запчасти Case 9020 (4-18) - LEFT HAND CONSOLE AND HARNESS (04) - ELECTRICAL SYSTEMS

1

150857A1

SWITCH

limit

1шт.

2

150067A1

MOUNTING CLIP

tie

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

6

152075A1

HARNESS

left-hand console

1шт.

7

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

8

892-11010

LOCK WASHER,M10

1шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

10

152768A1

BOX

BRACKET mounting

1шт.

11

152711A1

RELAY

electrical

3шт.

12

152098A1

CAPTIVE WASHER SCREW,Phil Pan Hd, M5 x 10mm

pan head, special

4шт.

13

152492A1

RELAY

electrical

1шт.

14

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

pan head, relay retaining

1шт.

15

152706A1

RELAY

electrical

1шт.

16

150563A1

CLIP

wire

1шт.

17

151613A1

KNOB

control, left hand

1шт.
