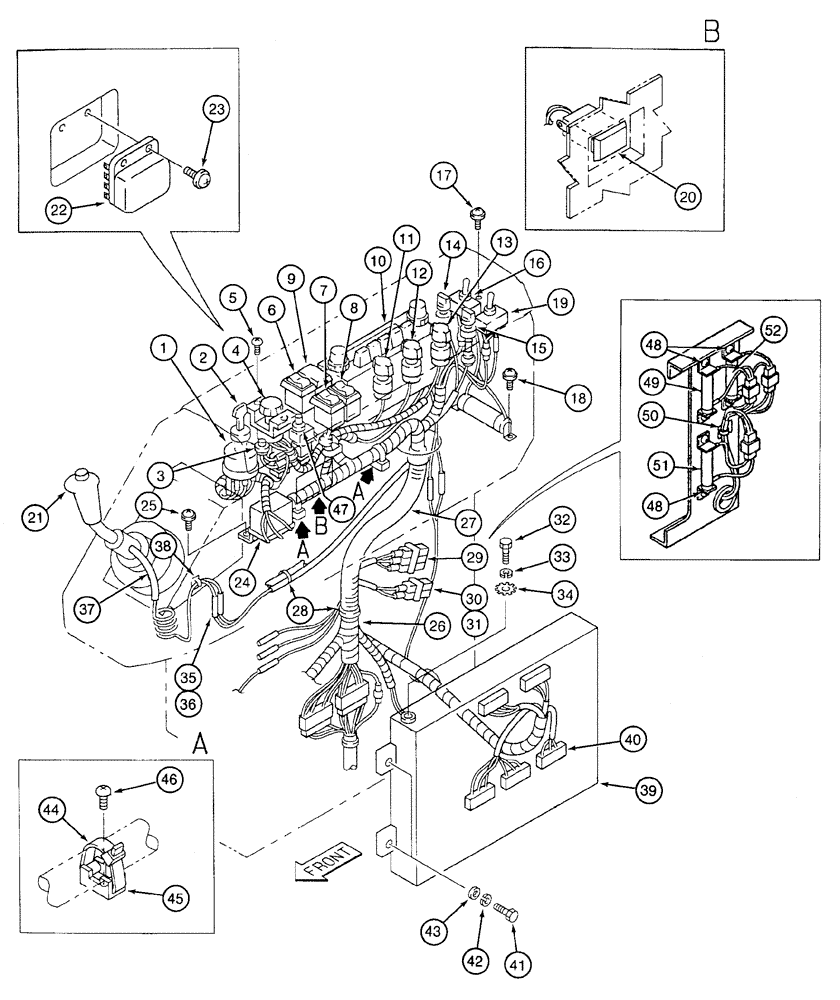

Запчасти Case 9020 (4-14) - RIGHT HAND CONSOLE AND HARNESS (04) - ELECTRICAL SYSTEMS

150973A1

SWITCH

ASSEMBLY ignition, Includes: Ref. 1 and 2

1шт.

1

150981A1

ASSEMBLY

ignition

1шт.

2

150979A1

IGNITION KEY

switch

2шт.

Comes as a set of two keys. If you order 1 pc. you will get a set of two.

1шт.

3

150788A1

SWITCH

push button

1шт.

4

151573A1

SWITCH

engine throttle

1шт.

5

150875A1

SCREW,Phil Truss Hd, M4 x 12mm

special, switch mounting

2шт.

6

152496A1

SWITCH

rocker cushion control

1шт.

7

152132A1

SWITCH

rocker attachment control

1шт.

8

152187A1

SWITCH

rocker travel alarm

1шт.

9

151728A1

CAP

COVER switch location

1шт.

10

159339A1

RADIO

AM/FM, 24 volt, replaces 158794A1 and 150376A1

1шт.

11

152672A1

SWITCH

rotary windshield wiper and washer

1шт.

12

150640A1

SWITCH

rotary lamp

1шт.

Knob for switch is NSS

1шт.

13

151848A1

SWITCH

rotary heater fan

1шт.

Knob for switch is NSS

1шт.

14

151858A1

SWITCH

rotary, hydraulic mode selection

1шт.

Knob for switch is NSS

1шт.

15

151853A1

SWITCH

rotary deceleration

1шт.

16

151839A1

SWITCH

backup, bypass

1шт.

17

151668A1

SCREW,Phil Pan Hd, M3 x 8mm, W/ Wshr

special, pan head

4шт.

18

151677A1

SCREW,Phil Pan Hd, M4 x 8mm, W/ Wshr

special, pan head

2шт.

19

150646A1

SWITCH

toggle, manual throttle

1шт.

20

152677A1

SWITCH

rocker, free swing

1шт.

21

151616A1

KNOB

control, right hand controller

1шт.

22

150793A1

BOX, FUSE

1шт.

Per 9030 OPS Manual, fuse box contains 3-10 AMP fuses and 5-15 AMP fuses. Fuses are STD glass tube type.

1шт.

23

152102A1

CAPTIVE WASHER SCREW,Phil Pan Hd, M6 x 20mm

pan head, special

2шт.

24

150806A1

RELAY

horn

1шт.

25

152099A1

CAPTIVE WASHER SCREW,Phil Pan Hd, M6 x 12mm

pan head, special

1шт.

26

150293A1

HARNESS

right-hand console

1шт.

27

150440A1

PLASTIC-RUBBER TUBE

SLEEVE corrugated, 39-3/8 inch (1000 mm) long

1шт.

28

150067A1

MOUNTING CLIP

tie

1шт.

29

150369A1

DIODE

electrical, right hand console harness

3шт.

Per Larry Chapman check of part. This is a diode with 2 spade terminals, one vertical and one horizontal, and has manufacture # 7321-9362-70 and 3A on it.

1шт.

30

150949A1

RESISTOR

right hand, console harness

1шт.

31

150952A1

CONDENSER

right hand, console harness

1шт.

32

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

33

892-11010

LOCK WASHER,M10

1шт.

34

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

35

150089A1

TERMINAL CONNECTOR

electrical

1шт.

36

150094A1

TERMINAL CONNECTOR

electrical

1шт.

37

151031A1

TUBE,3.6 mm ID, 200 mm Length

vinyl, 7-7/8 inch (200 mm) long

1шт.

38

150563A1

CLIP

wire

1шт.

158832A1

CONTROL

ASSEMBLY electrical system replaces, all previous controllers, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

CONTROLLER electrical system

1шт.

40

158833A1

PRINTED CIRCUIT BOAR

MICROPROCESSOR ROM (read only memory), replaces 152956A1 and 157161A1

1шт.

41

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

4шт.

42

892-11008

LOCK WASHER,8mm ID

4шт.

43

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

44

150496A1

MOUNTING CLIP

tie, 250 mm, long

1шт.

45

150860A1

COLLAR

BRACKET tie strap support

2шт.

46

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

Clip bracket mounting

2шт.

47

153059A1

SWITCH

push button, cold start

1шт.

48

151668A1

SCREW,Phil Pan Hd, M3 x 8mm, W/ Wshr

special

6шт.

49

158017A1

RESISTOR

electrical

1шт.

50

150712A1

CLIP

equipment mounting

1шт.

51

158018A1

RESISTOR

electrical

1шт.

52

158778A1

RESISTOR

harness

1шт.

53

159338A1

RESISTOR

FILTER noise radio, used with early model radios, not shown

1шт.
