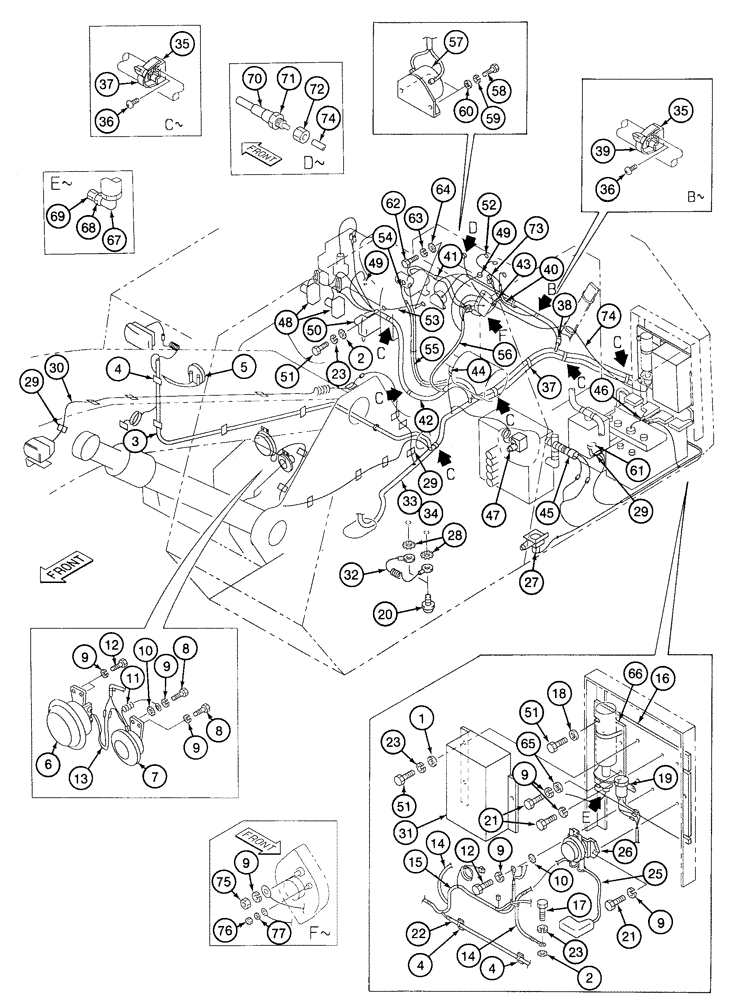

Запчасти Case 9020 (4-06) - MAIN ELECTRICAL WIRING AND BATTERY CABLES (04) - ELECTRICAL SYSTEMS

1

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

3шт.

2

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

3

150283A1

TUBE

SLEEVE corrugated, 78-3/4 inch (2000 mm) long

1шт.

4

150712A1

CLIP

tube support

1шт.

5

152111A1

SENSOR

fuel level

1шт.

6

151739A1

HORN

electrical

1шт.

7

152169A1

HORN

electrical

1шт.

8

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

2шт.

9

892-11008

LOCK WASHER,8mm ID

138шт.

10

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

11

150061A1

HARNESS

WIRE ground horn

1шт.

13

150698A1

HARNESS

WIRE horn

1шт.

14

150388A1

TUBE,13 mm ID, 17.5 mm OD, 300 mm Length

GUARD harness

2шт.

15

150398A1

LOOM

GUARD overflow hose

1шт.

16

150296A1

BRACKET

relay mounting

1шт.

17

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

18

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

3шт.

19

150070A1

RELAY

safety

1шт.

20

152100A1

CAPTIVE WASHER SCREW,Phil Pan Hd, M6 x 16mm

special relay mounting

2шт.

21

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

7шт.

22

150270A1

TUBE

SLEEVE corrugated, 39-3/8 inch (1000 mm) long

1шт.

23

892-11010

LOCK WASHER,M10

5шт.

24

150749A1

NEG BATTERY CABLE

1шт.

25

150707A1

NEG BATTERY CABLE

1шт.

26

150663A1

RELAY

battery

1шт.

27

153470A1

VALVE

ASSEMBLY solenoid parts, list Figure 8-53

1шт.

28

893-11006

LOCK WASHER,Ext Tooth, M6

2шт.

29

150563A1

CLIP

wire

1шт.

30

150819A1

HARNESS

WIRE work lamp on boom

1шт.

31

151251A1

COVER

relay

1шт.

32

150246A1

HARNESS

WIRE ground

1шт.

33

150291A1

HARNESS

main electrical

1шт.

34

150782A1

PLASTIC-RUBBER TUBE

SLEEVE corrugated, 98-7/16 inch (2500 mm) long

1шт.

35

150860A1

COLLAR

BRACKET tie strap support

10шт.

36

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

Clamp bracket mounting

10шт.

37

150071A1

MOUNTING CLIP

STRAP tie

1шт.

38

150067A1

MOUNTING CLIP

tie

1шт.

39

150496A1

MOUNTING CLIP

tie, 250 mm long

1шт.

40

150236A1

TUBE

SLEEVE corrugated, 11-13/16 inch (300 mm) long

1шт.

41

152660A1

PLASTIC-RUBBER TUBE

GUARD harness

1шт.

42

152372A1

TUBE

GUARD harness

1шт.

43

150232A1

TUBE,7mm ID x 10mm OD x 150mm L

SLEEVE corrugated, 6 inch (150 mm) long

1шт.

44

150675A1

SENSOR

SWITCH air restriction indicator

1шт.

45

150912A1

SWITCH

pressure hydraulic system

1шт.

46

150738A1

NEG BATTERY CABLE

1шт.

47

150844A1

VALVE

ASSEMBLY solenoid, parts list Figure 8-55

1шт.

48

150501A1

VALVE

ASSEMBLY solenoid swing brake and two speed travel, parts list Figure 8-57

2шт.

49

150974A1

SENSOR

temperature

2шт.

50

150425A1

VALVE

ASSEMBLY solenoid, parts list Figure 8-39

1шт.

51

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

7шт.

52

1983238C1

SENSOR,1/2" - 14

engine coolant temperature, replaces senders 152416A1 and J924072

1шт.

53

152481A1

HARNESS

WIRE ground

1шт.

54

151227A1

NEG BATTERY CABLE

1шт.

55

150406A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 1500 mm Length

SLEEVE corrugated, plastic, special, 59 inch (1500 mm) long

1шт.

56

152366A1

TUBE

GUARD cable

1шт.

57

162218A1

ALARM

travel, replaces 151829A1

1шт.

58

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

59

892-11006

LOCK WASHER,M6

2шт.

60

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

61

150032A1

LIMIT SWITCH

1шт.

62

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

63

892-11012

LOCK WASHER,M12

1шт.

64

30574R1

LOCK WASHER,Ext Tooth, M12

internal tooth lock, 12 mm

1шт.

65

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Bracket

3шт.

66

L126094

VALVE

ASSEMBLY solenoid cold start, parts list Figure 4-26, Includes: Ref. 67 - 69

1шт.

67

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD

1шт.

68

222-650

SLEEVE,1/8" Tube, Comp

Tapered

1шт.

69

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

hex, 1/8" tube OD

1шт.

70

A172900

NOZZLE CAP

ASSEMBLY atomizer, parts list Figure 4-26, Includes: Ref. 71 and 72

1шт.

71

222-650

SLEEVE,1/8" Tube, Comp

Tapered

1шт.

72

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

hex, 1/8" tube OD

1шт.

73

L126191

THERMOSTATIC SWITCH

circuit breaking, includes lead wires

1шт.

74

116992A2

TUBE,0.125 mm OD

nylon, 106 inch (2693 mm) long, cut from L60539X bulk tube, replaces 116992A1

1шт.

75

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

76

825-1405

NUT,M5, Cl 8

1шт.

77

892-11005

LOCK WASHER,M5

1шт.

L60539X

TUBE

bulk, nylon, 1/8 (3) ID x 168 inch (4267 mm) long

1шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
