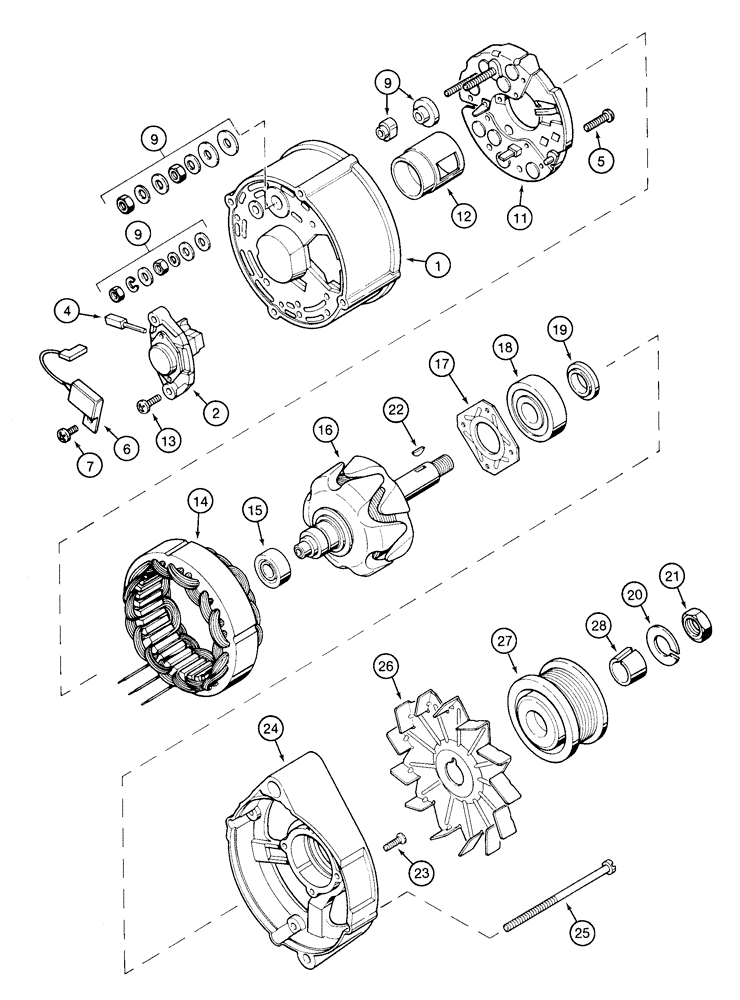

Запчасти Case 9020 (4-02) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

A187916

ALTERNATOR,24V, 45A

ASSEMBLY engine, Includes: Ref. 1 - 25

1шт.

A187916GV

ALTERNATOR

Value

1шт.

AR187916

REMAN-ALTERNATOR

45A 24V

1шт.

AC187916

CORE-ALTERNATOR

Return Number

1шт.

87297236

REMAN-ALTERNATOR

REMANUFACTURED 24 VOLT, 45 AMP ALTERNATOR

1шт.

87297237

CORE-ALTERNATOR

Return Number, 24 VOLT, 45 AMP ALTERNATOR

1шт.

1

A187996

HOUSING

collector ring end

1шт.

2

A187998

REGULATOR

voltage, Includes: Ref. 4

1шт.

4

A187999

BRUSH, COMMUTATOR

BRUSH ASSEMBLY alternator component parts not serviced separately

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

with washer, rectifier bridge retaining

2шт.

6

3079134R1

CAPACITOR

alternator

1шт.

7

1964969C1

SCREW

Special, capacitor retaining

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET hardware, terminal

1шт.

11

A187997

RECTIFIER

BRIDGE rectifier alternator

1шт.

12

A187899

INNER SHIELD

SHIELD alternator

1шт.

13

A187504

SCREW

hex flange, special voltage regulator retaining

2шт.

14

A188000

STATOR

ASSEMBLY alternator component parts, not serviced separately

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

ball rotor, collector ring end

1шт.

16

A187502

ROTOR ASSY.

alternator component parts, not serviced separately

1шт.

17

A187901

FIXING PLATE

PLATE bearing retaining drive end cover

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

ball rotor, drive end

1шт.

3078897R1

SET OF PARTS

KIT rotor retaining, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

RING spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY pulley retainer, not used in A187916 alternator

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW bearing retaining plate

4шт.

24

A191103

COVER

drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

slotted, special

4шт.

26

221425R1

FAN

alternator, not included with alternator assembly, order separately

1шт.

27

J908560

PULLEY

drive not included with alternator assembly, order seperately

1шт.

28

J908563

RETAINER

pulley not included with alternator assembly, order separately

1шт.
