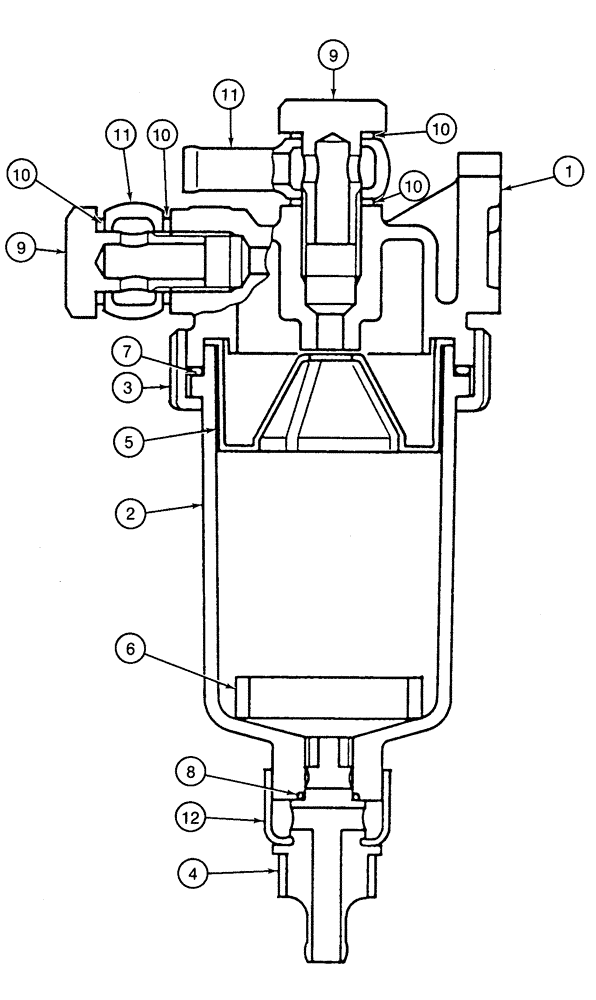

Запчасти Case 9020 (3-16) - WATER SEPARATOR ASSEMBLY (03) - FUEL SYSTEM

151071A1

WATER TRAP

SEPARATOR ASSEMBLY, Includes: Ref. 1 - 12

1шт.

1

156289A1

FILTER HEAD

water separator

1шт.

2

156240A1

FILTER BOWL

HOUSING water separator

1шт.

3

156184A1

RING NUT

type

1шт.

4

155467A1

PLUG, DRAIN

1шт.

5

156291A1

PLATE

baffle

1шт.

Ref# 6 - This is actually a red ring that serves as a float within this assembly. The illistration is showing a cross section of the part.

1шт.

6

156290A1

FLOAT

SEPARATOR water/fuel

1шт.

7

155175A1

O-RING

housing

1шт.

8

155174A1

O-RING

drain cap

1шт.

9

156185A1

BANJO BOLT

special

1шт.

10

155297A1

GASKET

GASKET banjo fitting

2шт.

11

156292A1

FITTING

banjo-type

1шт.

12

155353A1

PLUG

CAP drain

1шт.
