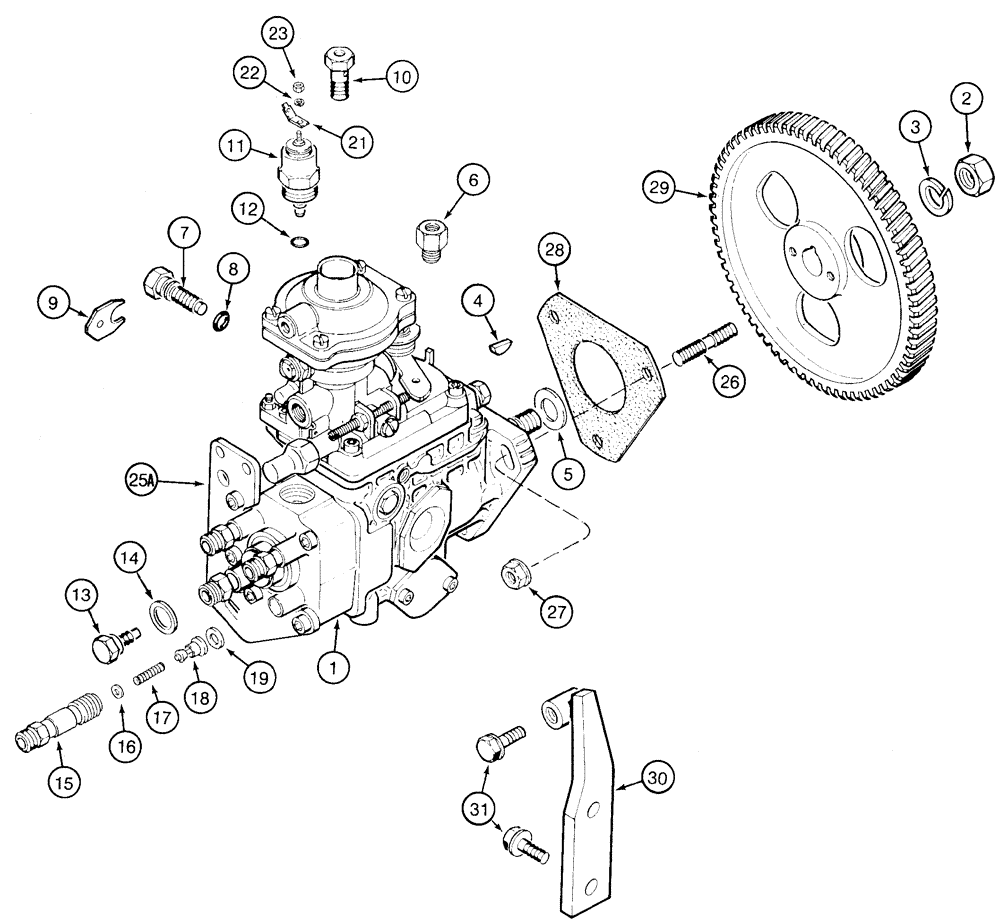

Запчасти Case 9020 (3-12) - FUEL INJECTION PUMP AND DRIVE, 4TA-390 ENGINE (03) - FUEL SYSTEM

1

J929745

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY injection, new replaces, J917520 pump assembly, Includes: Ref. 2 - 25A

1шт.

1

JR929745

REMAN-INJECTION PUMP

Pump Assembly, fuel injection, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly replaces JR917520 pump assembly, Includes: Ref. 2 - 25A

1шт.

1

JC929745

CORE-INJECTION PUMP

Return Part Number

1шт.

1

JC917499

CORE-INJECTION PUMP

Return Part Number, use this part number to return pump core for credit, when using a remanufactured assembly, Includes: Ref. 2 - 25A

1шт.

2

J903738

NUT

hex, special, 14 mm - 2.0

1шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

Replaces 92-11056

1шт.

4

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pump gear replaces J902332

1шт.

5

J920393

SEAL

shaft

1шт.

6

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

tube

1шт.

7

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

timing lock

1шт.

8

J904785

O-RING,8 mm ID x 2.5 mm

timing lock screw

1шт.

9

J904786

PLATE

timing lock

1шт.

10

J905465

BANJO BOLT

banjo, overflow

1шт.

11

A77797

SOLENOID

shut down, 24 volt component parts, not serviced separately

1шт.

12

J903577

SEAL

solenoid

1шт.

13

J903572

BLEED SCREW,M8 x 1 x 23.10mm

vent

1шт.

14

3053133R1

SEALING RING,M8 x 11.5 x 1

gasket, vent screw

1шт.

15

J910794

FITTING

bypass delivery valve

6шт.

16

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

special

6шт.

17

J910796

SPRING

delivery valve

6шт.

18

J910795

BY-PASS VALVE

delivery

6шт.

19

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

delivery valve

6шт.

21

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

Male

1шт.

22

J907481

WASHER

lock, special

1шт.

23

J907480

NUT

special

1шт.

24

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

low idle, stop

1шт.

25

J904783

NUT

low idle, screw

1шт.

25a

J905696

SUPPORT

BRACKET pump support

1шт.

26

J902501

STUD

STUD pump mounting, 8 mm - 1.25 x 48 mm

3шт.

27

J900589

NUT

hex flange, special, 8 mm

3шт.

28

J914389

GASKET

pump mounting

1шт.

29

J920594

PINION

GEAR pump drive

1шт.

30

J905313

LEVER

BRACE fuel pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.
