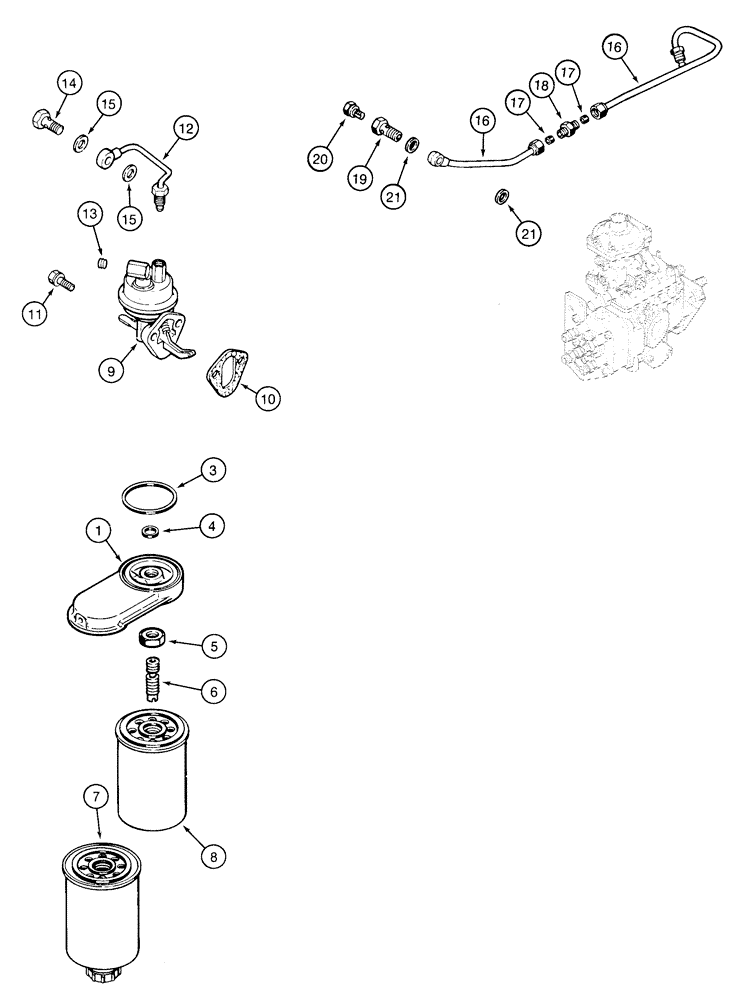

Запчасти Case 9020 (3-10) - FUEL FILTER AND LIFT PUMP, 4TA-390 ENGINE (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

hex, special 16 mm - 2.0

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter, replaces J903845 adapter

1шт.

7

J925274

FILTER, FUEL

primary

1шт.

8

J903640

FILTER, FUEL

secondary

1шт.

9

J904374

PUMP

ASSEMBLY lift, fuel

1шт.

10

J914304

GASKET

mounting, fuel transfer pump

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Fuel lift pump to block

2шт.

12

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

ASSEMBLY fuel supply fuel lift pump, to fuel filter inlet in cylinder head

1шт.

13

221-841

PLUG

hex socket, 1/4 inch PT fuel inlet

1шт.

14

J903035

BANJO BOLT

hex, 12 - 1.5 x 24 mm fuel filter, to lift pump tube

1шт.

15

J918191

PACKING RING

WASHER sealing, special 12 x 18 x 1 mm banjo connectors

2шт.

16

J918640

FUEL TUBE

fuel supply, two-piece, Includes: Ref. 17 and 18

1шт.

17

222-103

SLEEVE,5/16" Tube

2шт.

18

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER compression, 5/16 inch tube O.D.

1шт.

J905860

BANJO BOLT

ASSEMBLY banjo hex, special, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex, special

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW hex, special, vent

1шт.

21

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.
