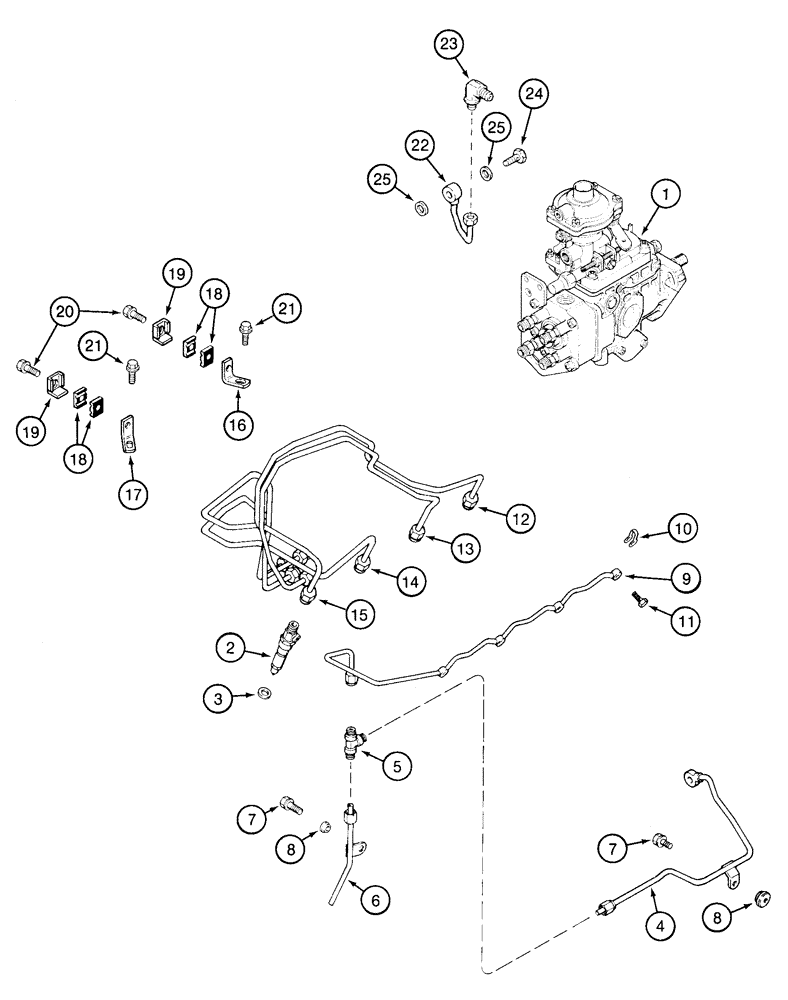

Запчасти Case 9020 (3-08) - FUEL INJECTION SYSTEM, 4TA-390 ENGINE (03) - FUEL SYSTEM

1

J929745

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY injection, new parts list Figure 3-12, replaces J917520 pump assembly

1шт.

1

JR929745

REMAN-INJECTION PUMP

1шт.

1

JC929745

CORE-INJECTION PUMP

Return Number

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY fuel, see Figure 3-15

4шт.

3

J906659

SEAL

injector nozzle, 7 mm injector tip, see 3-14, Ref. 2

4шт.

4

J905701

FUEL TUBE,4.76 mm OD

fuel drain injection pump to tee

1шт.

Fuel tubes, Refs. 4 and 6, bolt to tappet cover, see Figure 2-34, Ref. 21.

1шт.

5

222-121

TEE,3/16", Flex Tubing

Fuel drain tubes (Remove and discard nuts and sleeves before assembly)

1шт.

6

J905692

FUEL TUBE

fuel return tee to fuel tank

2шт.

Fuel tubes, Refs. 4 and 6, bolt to tappet cover, see Figure 2-34, Ref. 21.

1шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Fuel tube brace through tappet cover to cylinder block

2шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Fuel tube brace through tappet cover to cylinder block

2шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Fuel tube brace through tappet cover to cylinder block

2шт.

8

J900267

SEAL

cover bolt

2шт.

8

J900267

SEAL

cover bolt

2шт.

9

J909695

FUEL TUBE

TUBE manifold, fuel drain tee to fuel tank return

1шт.

10

J903380

SEAL

connector

4шт.

11

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special, Fuel drain manifold

4шт.

12

J904204

FUEL TUBE,2 mm ID x 6.4 mm OD x 701 mm L

fuel injector, No. 1 cylinder

1шт.

13

J904205

FUEL TUBE,2 mm ID x 6.4 mm OD x 701.5 mm L

fuel injector, No. 2 cylinder

1шт.

14

J904206

FUEL TUBE,2 mm ID x 6.4 mm OD x 701 mm L

fuel injector, No. 3 cylinder

1шт.

15

J904207

FUEL TUBE,2 mm ID x 6.4 mm OD x 701 mm L

fuel injector, No. 4 cylinder

1шт.

16

J919294

SUPPORT

BRACKET fuel tube

1шт.

17

J919292

SUPPORT

BRACKET fuel tube

1шт.

18

J917746

CLAMP

fuel tube

4шт.

19

CURJ904711

CLAMP

BRACKET fuel tube

2шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

Replaces J917712 bolt and J903723 flat washer

2шт.

21

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special, Brackets to cylinder head

2шт.

22

J910004

FUEL TUBE,4.76 mm OD x 101.9 mm L

injection pump aneroid

1шт.

23

J910265

ELBOW

male adapter

1шт.

24

J924724

BANJO BOLT

banjo, special aneroid tube

1шт.

25

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing replaces, J903728

2шт.
