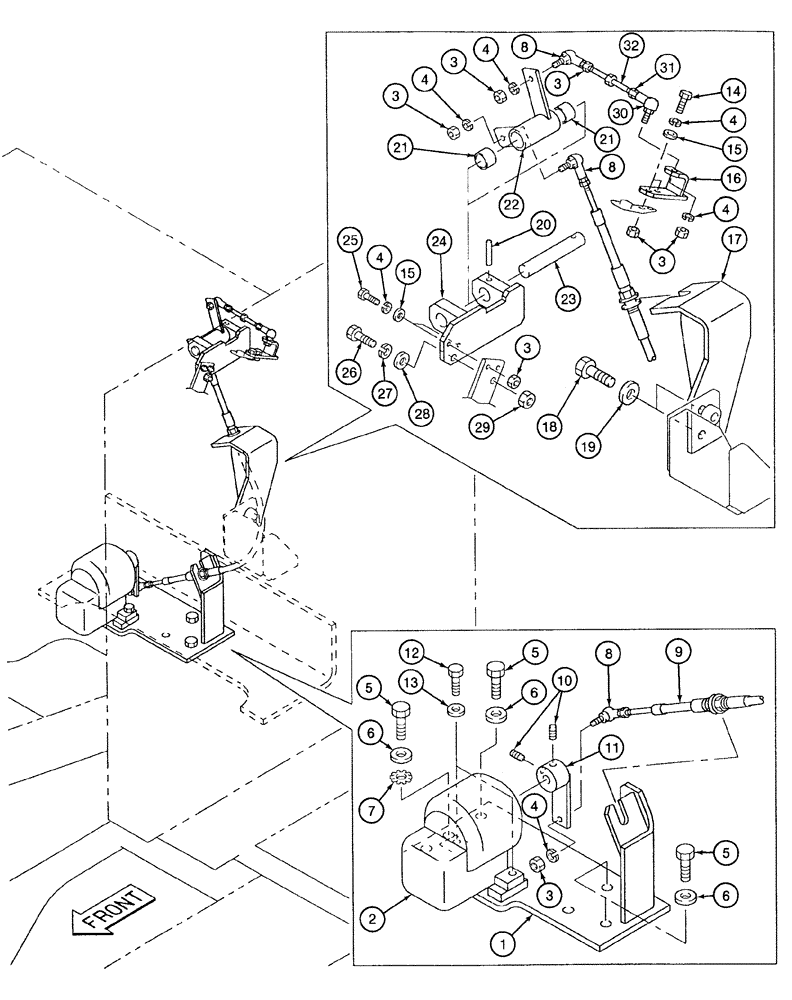

Запчасти Case 9020 (3-06) - THROTTLE AND FUEL SHUTOFF CONTROLS (03) - FUEL SYSTEM

1

151450A1

BRACKET

mounting, throttle motor

1шт.

2

152920A1

MOTOR

throttle

1шт.

152920A1R

REMAN-ELECTRIC MOTOR

9020 (2/93-)

1шт.

152920A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

3

829-1406

NUT,Hex, M6 x 1, Cl 10.9

9шт.

4

892-11006

LOCK WASHER,M6

8шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

6

150900A1

WASHER

flat, 12 mm, replaced by 150900A1

4шт.

6

150900A1

WASHER

flat, 12 mm, replaces 157141A1

4шт.

7

30574R1

LOCK WASHER,Ext Tooth, M12

internal tooth lock, 12 mm

1шт.

8

150054A1

BALL JOINT

throttle cable

3шт.

9

151457A1

CABLE PULLING GRIP

control

1шт.

10

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

2шт.

11

151454A1

LEVER

throttle control at motor

1шт.

12

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

13

150594A1

WASHER

flat, 10.5 x 18 x 3.2 mm

2шт.

14

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

16

157142A1

CONTROL LEVER

1шт.

17

150299A1

BRACKET

throttle, cable support

1шт.

18

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

2шт.

19

150811A1

WASHER

flat, special, 12 mm

2шт.

20

838-1632

LOCK PIN,6mm OD x 32mm L, Slotted

roll

1шт.

21

151272A1

BUSHING

bellcrank

2шт.

22

150298A1

LINK ASSY.

BELLCRANK throttle, control

1шт.

23

151507A1

PIN

pivot bellcrank, retaining

1шт.

24

157143A1

BRACKET

pivot pin, mounting

1шт.

25

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

27

892-11008

LOCK WASHER,8mm ID

1шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

30

150045A1

BALL JOINT

1шт.

31

829-12406

NUT,M6, Cl 8 5, LH

hex, left-hand threads, 6 mm - 1.0, class 10

1шт.

32

151446A1

ROD

threaded, ball joint connecting

1шт.

26

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.
