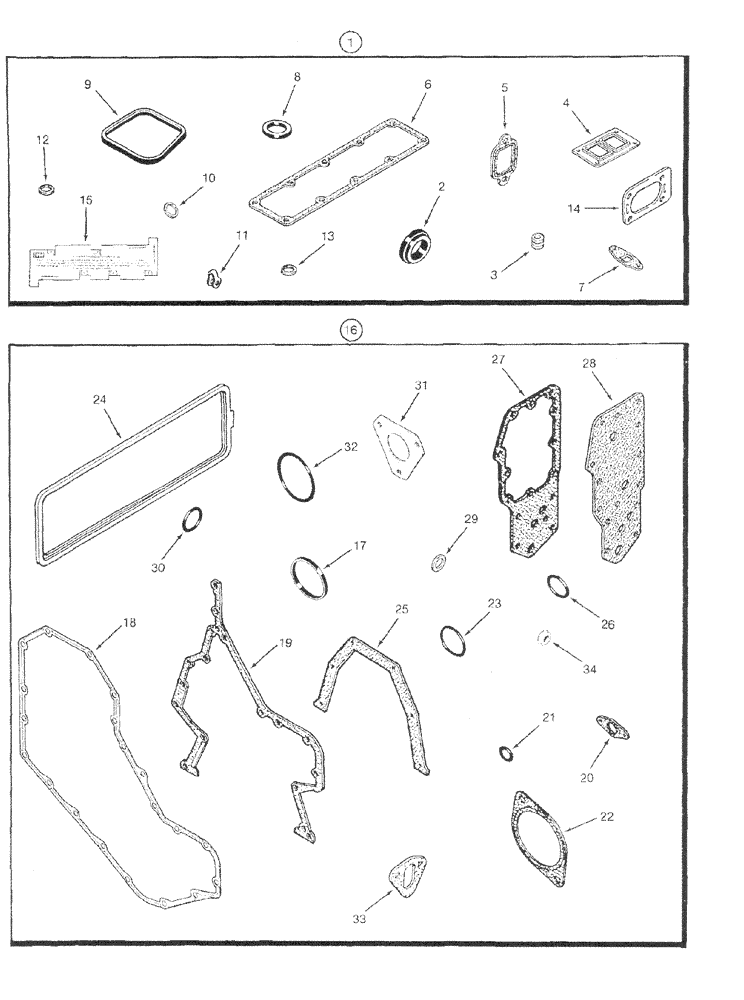

Запчасти Case 9020 (2-44) - ENGINE GASKET KITS, 4TA-390 ENGINE, VALVE GRIND, CYLINDER BLOCK (02) - ENGINE

1

A77792

GASKET KIT

valve grind, Includes: Ref. 2 - 15

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-26.

1шт.

2

J923331

GASKET

thermostat housing

1шт.

3

J901097

SEAL

valve

8шт.

4

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

6

J914028

GASKET

intake manifold

1шт.

7

J914388

GASKET

turbo oil drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap, not used this application

1шт.

9

J902666

GASKET

SEAL rocker arm cover

4шт.

10

J900808

SEAL

injector nozzle, 9 mm injector tip not used in this application

4шт.

11

J903380

SEAL

connector fuel drain manifold tube

4шт.

12

J906659

SEAL

injector nozzle, 7 mm injector tip

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING, Serial Range: body-nut

4шт.

14

J914856

GASKET,1.02mm Thk

air crossover connection

1шт.

15

J823921

GAUGE

cylinder head, bolt length

1шт.

16

A77671

GASKET KIT

engine block, Includes: Ref. 17 - 34

1шт.

For complete engine overhaul, order (1) each of valve grind kit, cylinder block kit, oil pan kit, Figure 2-24, front and rear crankshaft seal kit Figure 2-38 and required cylinder head gasket, Figure 2-26.

1шт.

17

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

18

J914385

GASKET,1.02mm Thk

front cover

1шт.

19

J916131

GASKET

gear housing

1шт.

20

J905595

GASKET

timing pin housing, not used in this application

1шт.

21

J913994

O-RING

sealing, timing pin

1шт.

22

J919601

GASKET

access, cover plate

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to block

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to block

1шт.

25

J914386

GASKET

rear cover, retainer crankshaft

1шт.

24

J922078

GASKET

tappet cover

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID water inlet connection

1шт.

27

J918256

GASKET

cooler core, oil

1шт.

28

J918257

GASKET

filter head

1шт.

29

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug oil pan

1шт.

30

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm ID

1шт.

31

J914389

GASKET

pump mounting

1шт.

32

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

33

J914304

GASKET

mounting, fuel transfer pump

1шт.

34

J900267

SEAL

cover bolt

4шт.
