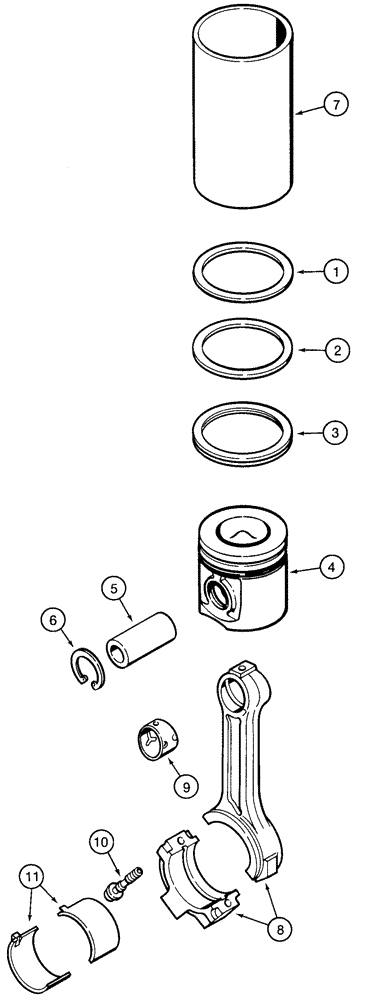

Запчасти Case 9020 (2-42) - PISTONS AND CONNECTING RODS, 4TA-390 ENGINE, CONNECTING RODS (02) - ENGINE

A77733

PISTON

KIT standard, Includes: Ref. 1 - 6

4шт.

A77727

PISTON RING SET

KIT standard, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize (Stamped 8816)

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap pin

2шт.

A77734

PISTON

KIT 0.5 mm, oversize, Includes: Ref. 1 - 6

4шт.

A77728

PISTON RING SET

KIT 0.5 mm, oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize (Stamped 88161)

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap pin

2шт.

A77735

PISTON

KIT 1.00 mm oversize, Includes: Ref. 1 - 6

4шт.

A77729

PISTON RING SET

KIT 1.00 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize (Stamped 88161)

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap pin

2шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair (when liner is installed, use A77733 standard piston kit)

1шт.

J925232

ROD, CONNECTING

ASSEMBLY connecting new, replaces J901569 rod assembly, Includes: Ref. 8 - 10

4шт.

JR925232

ROD

Assembly connecting, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly replaces JR901569, Includes: Ref. 8 - 10

4шт.

JC925232

CORE-ROD CONNECTING

Core-Connecting Rod Return Number use this part number to return connecting rod for credit, when using a remanufactured assembly, Includes: Ref. 8 - 10

4шт.

84145405R

REMAN-CONNECTING ROD

9020 (2/93-), Reman For New PN J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod Return Number, Connecting Rod

4шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

9

J901085

BUSHING

Connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

hex, special

2шт.

11

A77465

BEARING SET

KIT upper and lower set standard

4шт.

11

A77466

BEARING SET

KIT upper and lower set, 0.25 mm undersize

4шт.

11

A77467

BEARING LINER

KIT upper and lower set, 0.50 mm undersize

4шт.

11

A77468

BEARING SET

KIT upper and lower set, 0.75 mm undersize

4шт.

11

A77469

BEARING SET

KIT upper and lower set, 1.00 mm undersize

4шт.
