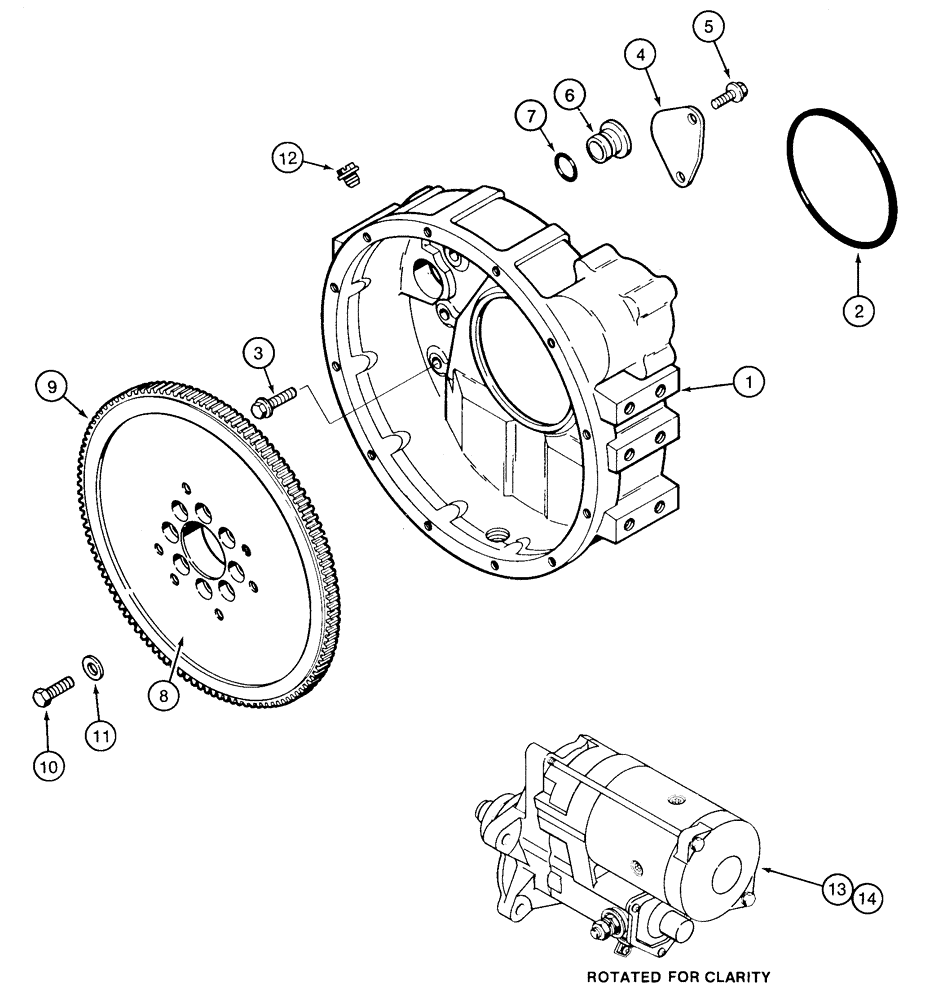

Запчасти Case 9020 (2-40) - FLYWHEEL AND HOUSING, 4TA-390 ENGINE (02) - ENGINE

1

J903282

HOUSING

flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

Flywheel housing to block

8шт.

4

J908095

PLATE

cover

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

hex flange, self tapping, 8 - 1.25 x 21 mm plate retaining

2шт.

6

J910248

PLUG

flywheel housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

8

J907466

FLYWHEEL

ASSEMBLY engine, Includes: Ref. 9

1шт.

9

J905427

GEAR

ring, flywheel

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, special flywheel bolt

8шт.

12

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

13

1987566C1

STARTER MOTOR,24V, 5.5kW

ASSEMBLY engine parts, list Figure 4-4

1шт.

13

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

13

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

13

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

14

J903834

12 PT SCREW,M10 x 1.5 x 35mm, Cl 10.9

special, 12 point starter to flywheel housing

3шт.
