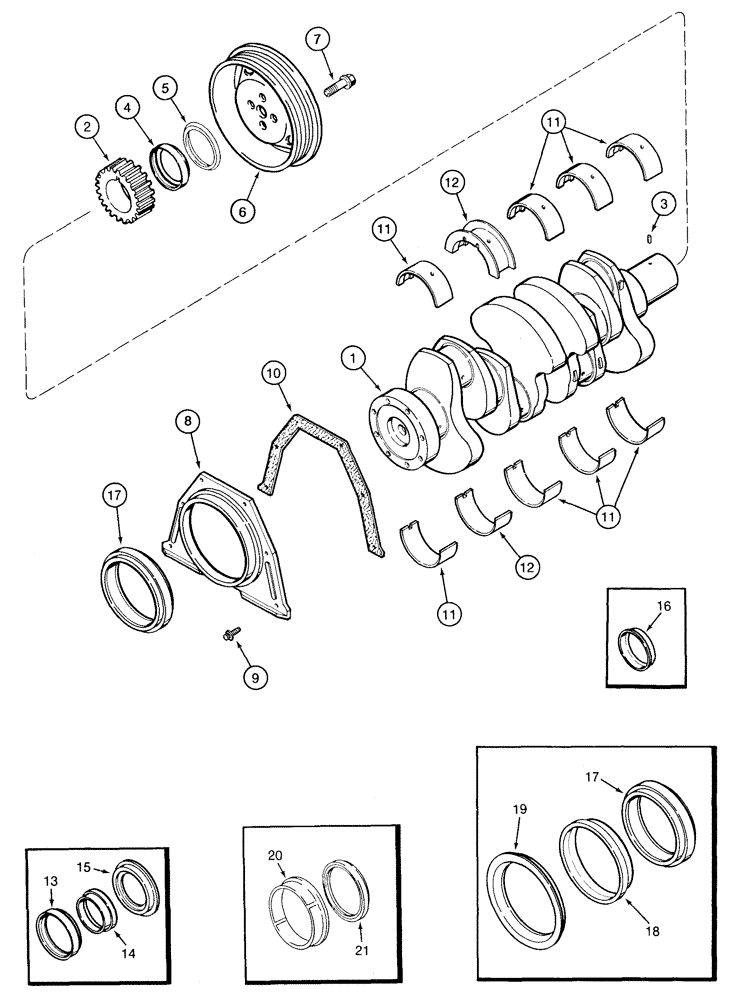

Запчасти Case 9020 (2-38) - CRANKSHAFT, 4TA-390 ENGINE (02) - ENGINE

JR908031

CRANKCASE

engine, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly for service order J918323 crankshaft assembly, Ref. 1, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

9020 (2/93-), Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

RETURN NUMBER use this part number to return crankshaft for credit, when using a remanufactured assembly, Includes: Ref. 2 and 3

1шт.

1

J918323

CRANKSHAFT

ASSEMBLY engine, new, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

9020 (2/93-), Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J919681

PINION

GEAR crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order J904353 kit below

1шт.

5

J926430

SHAFT SEAL

dust, crankshaft, service repair only

1шт.

6

J958258

DAMPER

PULLEY crankshaft vibration damper

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange, special, 12 - 1.25 x 36 mm

4шт.

8

J921043

REAR COVER

seal, rear cover

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Heavy

6шт.

10

J914386

GASKET

rear cover retainer

1шт.

11

A77405

CRANKSHAFT BEARING

main, upper and lower set standard

4шт.

11

A77472

BEARING SET

main, upper and lower set, 0.25 mm undersize

4шт.

11

A77474

BEARING SET

main, upper and lower set, 0.50 mm undersize

4шт.

11

A77476

BEARING SET

main, upper and lower set, 0.75 mm undersize

4шт.

11

A77478

BEARING SET

main, upper and lower set, 1.0 mm undersize

4шт.

12

A77406

CRANKSHAFT BEARING

main thrust, upper and lower set standard

1шт.

12

A77473

THRUST BEARING

main thrust, upper and lower set, 0.25 mm undersize

1шт.

12

A77475

THRUST BEARING

main thrust, upper and lower set, 0.50 mm undersize

1шт.

12

A77477

THRUST BEARING

main thrust, upper and lower set, 0.75 mm undersize

1шт.

12

A77479

THRUST BEARING

main thrust, upper and lower set, 1.00 mm undersize

1шт.

12

A77841

THRUST BEARING

main thrust, upper and lower set, 0.50 mm undersize, 0.50 mm oversize thrust

1шт.

12

A77840

THRUST BEARING

main thrust, upper and lower set 1.00 mm undersize, 1.00 mm oversize thrust

1шт.

J904353

GASKET KIT

oil seal, crankshaft front, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

14

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

16

J906080

PACKAGE, REPAIR

SLEEVE wear, crankshaft front

1шт.

A77809

GASKET KIT

oil seal, crankshaft rear, replaces J909410, Includes: Ref. 17 - 19; Tool No Longer Included in Kit, Available from OTC

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE installation

1шт.

19

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

J906081

SLEEVE

KIT wear, crankshaft rear, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.
