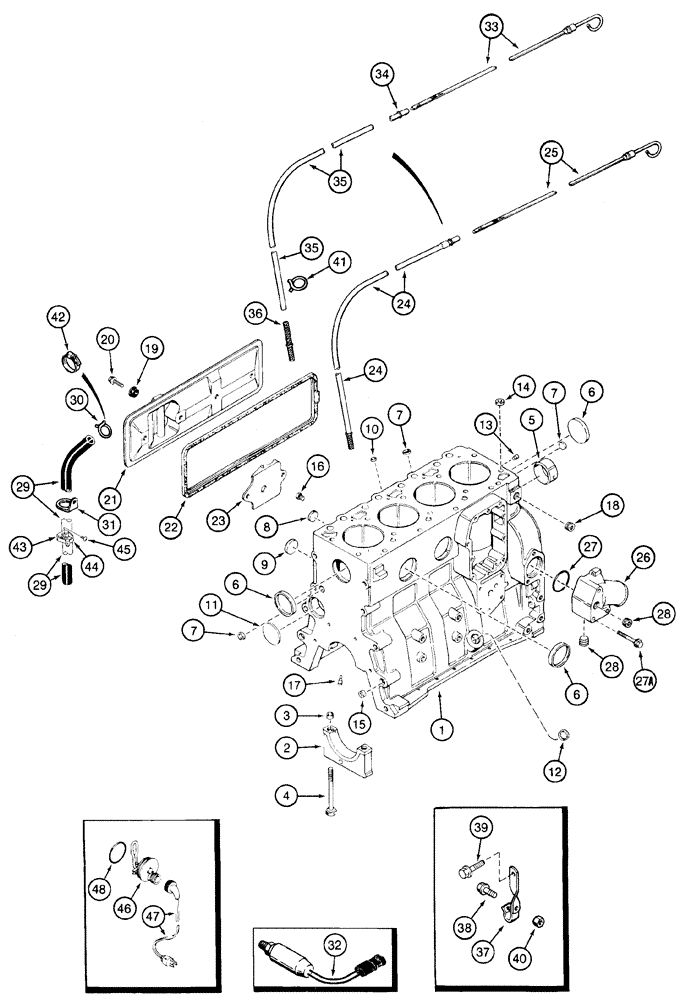

Запчасти Case 9020 (2-32) - CYLINDER BLOCK, 4TA-390 ENGINE, ENGINE BLOCK HEATER (02) - ENGINE

1989157C1

ENGINE ASSEMBLY

ENGINE ASSY complete, 4TA-390, includes all parts except fan, air cleaner, muffler and exhaust pipe, for service order 1989092C2 basic engine below, Includes: Ref. 1 - 8

1шт.

1989188C1R

REMAN-REPLACEMENT EN

Remanufactured

1шт.

4TA-390C

CORE-REPLACEMENT ENG

Return Number

1шт.

1989092C3R

REMAN-BASIC ENGINE

Reman Basic Engine, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler

1шт.

1989092C3C

CORE-BASIC ENGINE

Return Number

1шт.

1989092C2

BASIC ENGINE

ASSEMBLY, Basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel & housing , oil fill & dipstick, fuel injection pump, injectors & lines, front pulley,belt tensioner,turbocharger & aftercooler

1шт.

AR77806

SKELETON ENGINE

BLOCK ASSEMBLY short, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 8

1шт.

AC77758

CORE-ENGINE

Return Number

1шт.

A77806

SKELETON ENGINE

BLOCK ASSEMBLY short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 8

1шт.

Order J920399 hardware kit when ordering A77806 short block kit or J916254 stripped block.

1шт.

1

J916254

BLOCK ASSY.

stripped, engine, Includes: Ref. 2 - 8

1шт.

Order J920399 hardware kit when ordering A77806 short block kit or J916254 stripped block.

1шт.

2

J900967

BEARING CAP

CAP main bearing

5шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm O.D.

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

main bearing cap, special

10шт.

5

REF

INSTRUCTION

BUSHING camshaft, front, see Figure 2-30, Ref. 2

1шт.

6

A77782

PLUG

expansion, 58 mm O.D.

4шт.

7

J900956

PLUG

expansion, 18 mm O.D.

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J802641

PACKAGE, REPAIR

KIT block hardware, Includes: Ref. 9 - 18

1шт.

Order J920399 hardware kit when ordering A77806 short block kit or J916254 stripped block.

1шт.

9

J900958

PLUG

expansion, 32 mm O.D.

1шт.

10

J900955

PLUG

expansion, 10 mm O.D.

1шт.

11

172599

PLUG,Exp, 2 3/8"

expansion, Welch, 60 mm O.D.

1шт.

12

J920706

PLUG

expansion, 22 mm OD, not used in this application, Ref. 15, Figure 2-19, J903744 turbocharger oil drain tube is installed in this port, replaces A77439 plug

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long locating

2шт.

14

J902343

DOWEL

RING dowel, 16 mm O.D.

2шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm O.D.

2шт.

16

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT (1) not used in this application, Ref. 32, Figure 2-35, 1546461C2 engine oil pressure switch is installed in this oil port

2шт.

17

J919002

NOZZLE CAP

piston cooling (4 used in this application)

4шт.

18

A77429

PLUG

hex socket, 1/2 inch PT

1шт.

19

J900267

SEAL

cover bolt

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

21

J925680

COVER

tappet, replaces J916441 cover

1шт.

22

J922078

GASKET

tappet cover

1шт.

23

NSS

NOT SOLD SEPARAT

BAFFLE tappet cover, for service order Ref. 21

1шт.

24

J279238

TUBE

dipstick oil, one-piece, replaces J922886 tube, no longer used, order Refs. 33-36, and Ref. 41 shown on this figure

1шт.

25

J907708

DIPSTICK

engine oil no longer used, order Refs. 33-36 and Ref. 41 shown on this page

1шт.

26

J903103

MANIFOLD

water inlet

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID

1шт.

27a

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

3шт.

28

A77429

PLUG

hex socket, 1/2 inch PT

2шт.

29

1981643C1

HOSE

31-1/2 inch (800 mm) long engine breather

1шт.

30

J904230

CLAMP,25.4mm

spring, breather hose to tappet cover

1шт.

31

J909670

CLIP

retaining breather hose to torque converter access cover screw, may be replaced by Ref. 43, 44 and 45

1шт.

32

1546461C2

SWITCH

oil pressure, 10 psi installed in the No. 1 oil port on the injection pump side of engine, replaces 1546461C1 switch

1шт.

33

J914731

DIPSTICK,1194mm L

engine oil, replaces dipstick J907708

1шт.

34

J905802

FITTING,9.53 mm OD x 39 mm L

CAP oil dipstick tube

1шт.

35

J905801

TUBE

oil dipstick

1шт.

36

J279239

TUBE

oil dipstick, replaces A77645 tube

1шт.

37

J905804

BRACKET

BRACE tube

1шт.

38

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

Dipstick, tube to tube brace

1шт.

39

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Retains tube brace to Ref. 20, J914486 crossover connection on Figure 2-18

1шт.

40

825-1408

NUT,M8, Cl 8

1шт.

41

214-1308

HOSE CLAMP,#8, 1/2", Spring

Retains dipstick tube to tube brace

1шт.

42

157916A1

CLAMP

special breather hose

1шт.

43

150860A1

COLLAR

tie strap support

1шт.

44

150067A1

MOUNTING CLIP

tie

2шт.

45

158254A1

SCREW,Phil Pan Hd, M6 x 10mm

pan head, special support bracket

1шт.

A77634

KIT

engine block heater, Includes: Ref. 46 - 48

1шт.

46

NSS

NOT SOLD SEPARAT

HEATER engine block, 120 volt

1шт.

47

J905113

CABLE

engine block heater, 6 feet long

1шт.

48

J910517

O-RING

heater, sealing

1шт.
