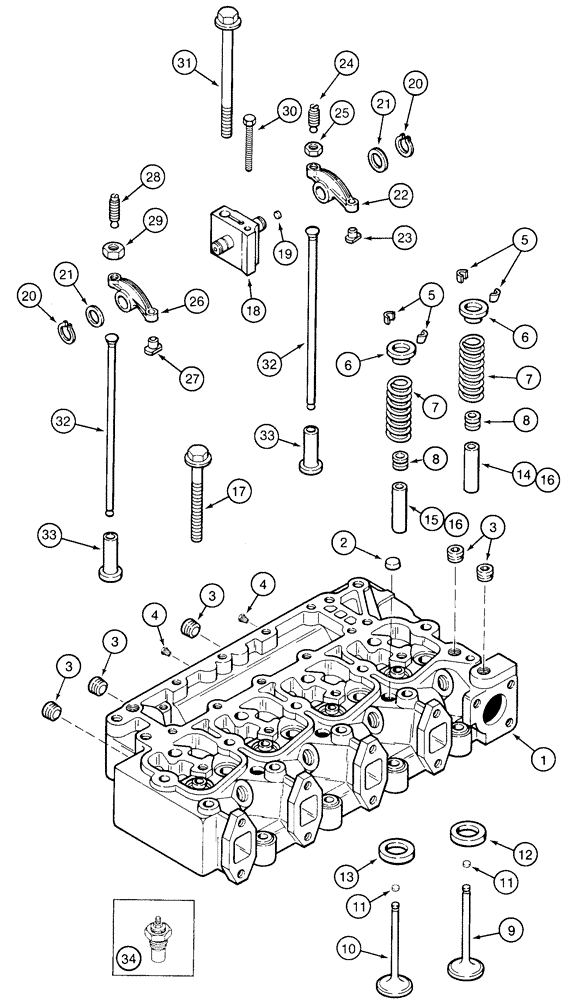

Запчасти Case 9020 (2-28) - CYLINDER HEAD AND VALVE MECHANISM, 4TA-390 ENGINE (02) - ENGINE

JR920611

REMAN-CYLINDER HEAD

HEAD ASSEMBLY cylinder, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 10

1шт.

JC920611

CORE-CYLINDER HEAD

RETURN NUMBER use this part number to return head for credit, when using a remanufactured assembly, Includes: Ref. 1 - 10

1шт.

J920611

HEAD (CYLINDER)

HEAD ASSEMBLY new, with valves, Includes: Ref. 1 - 10

1шт.

1

J920005

HEAD (CYLINDER)

HEAD ASSEMBLY new, without valves, Includes: Ref. 2

1шт.

2

A77783

PLUG

expansion, 21 mm O.D. (one removed to install aftercooler drain tube, Ref. 9, Figure 2-17)

3шт.

3

A77429

PLUG

hex socket, 1/2 inch PT (one removed to install Ref. 34, 1983238C1 coolant temperature sender)

5шт.

4

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

5

CASJ900250

RETAINER

valve

16шт.

6

J900299

RETAINER

valve spring

8шт.

7

J900276

VALVE SPRING

8шт.

8

J901097

SEAL

valve

8шт.

9

J920867

VALVE

intake

4шт.

10

J920868

VALVE

exhaust

4шт.

11

J280911

WEAR PAD

service repair, only for valve stem tip

4шт.

12

J906854

SEAT, VALVE

insert, intake valve, service repair only

4шт.

13

J904105

SEAT, VALVE

insert, exhaust valve, service repair only

4шт.

14

J904408

GUIDE

valve, intake, service repair only, 14 mm O.D.

4шт.

These parts are semi-finished valve guides.

1шт.

15

J904409

GUIDE

valve, exhaust, service repair only, 14 mm O.D.

4шт.

These parts are semi-finished valve guides.

1шт.

16

J906206

GUIDE

valve, intake and exhaust, service repair only, 11 mm O.D.

8шт.

These parts are semi-finished valve guides.

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Cylinder head, 70 mm long

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm long

10шт.

18

J910814

SUPPORT

AND SHAFT ASSEMBLY rocker arm, Includes: Ref. 19

4шт.

19

J907555

PLUG

rocker arm shaft, 1/4-18 PT

1шт.

20

J900242

SNAP RING

retaining, rocker arm

8шт.

21

J900245

WASHER

thrust, rocker arm

8шт.

22

J910811

ROCKER

ARM ASSEMBLY intake, Includes: Ref. 23 - 25

4шт.

23

NSS

NOT SOLD SEPARAT

INSERT arm

1шт.

24

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

25

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

26

J910810

ROCKER

ARM ASSEMBLY exhaust, Includes: Ref. 27 - 29

4шт.

27

NSS

NOT SOLD SEPARAT

INSERT arm

1шт.

28

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

29

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

30

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

31

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Rocker arm and cylinder head, 180 mm long

4шт.

32

J923262

PUSH ROD

rocker arm

8шт.

33

J925031

TAPPET

valve, push rod, replaces J907240 tappet

8шт.

34

1983238C1

SENSOR,1/2" - 14

engine coolant, temperature installed front side of cylinder head behind fuel lines, replaces J924072 switch

1шт.
