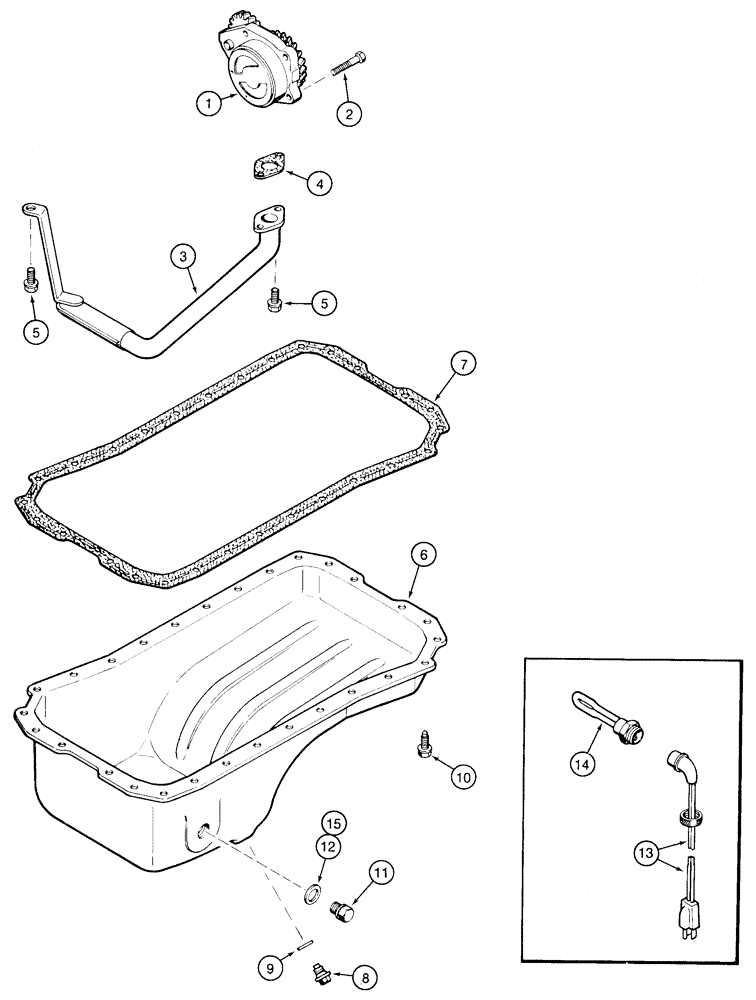

Запчасти Case 9020 (2-24) - OIL PUMP AND OIL PAN, 4TA-390 ENGINE, ENGINE OIL HEATER (02) - ENGINE

1

J926202

PUMP, ENGINE OIL

oil, engine, new, replaces J924719

1шт.

JR926202

PUMP

ASSEMBLY oil, remanufactured, North America only replaces JR918211 pump assembly

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Full Thd

4шт.

3

J905206

TUBE,1" OD

suction, oil with screen

1шт.

4

J914383

GASKET

mounting, oil suction tube

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL oil

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET oil pan, order A77673, kit shown below

1шт.

8

J924147

PLUG,M18 x 1.5

hex magnetic, special, 18 mm - 1.5, replaces J911638

1шт.

9

J920773

SEALING WASHER

drain plug

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J924148

PLUG,M22 x 1.5

hex magnetic, special, 22 mm - 1.5 heater hole, replaces J904386

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

A77673

GASKET KIT

oil pan includes: Ref. 4, 7 and 9

1шт.

A77490

KIT

heater, engine oil, also order item 15, J902425 washer, Includes: Ref. 13 and 14

1шт.

13

J905113

CABLE

engine block heater, 6 feet long

1шт.

14

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.
