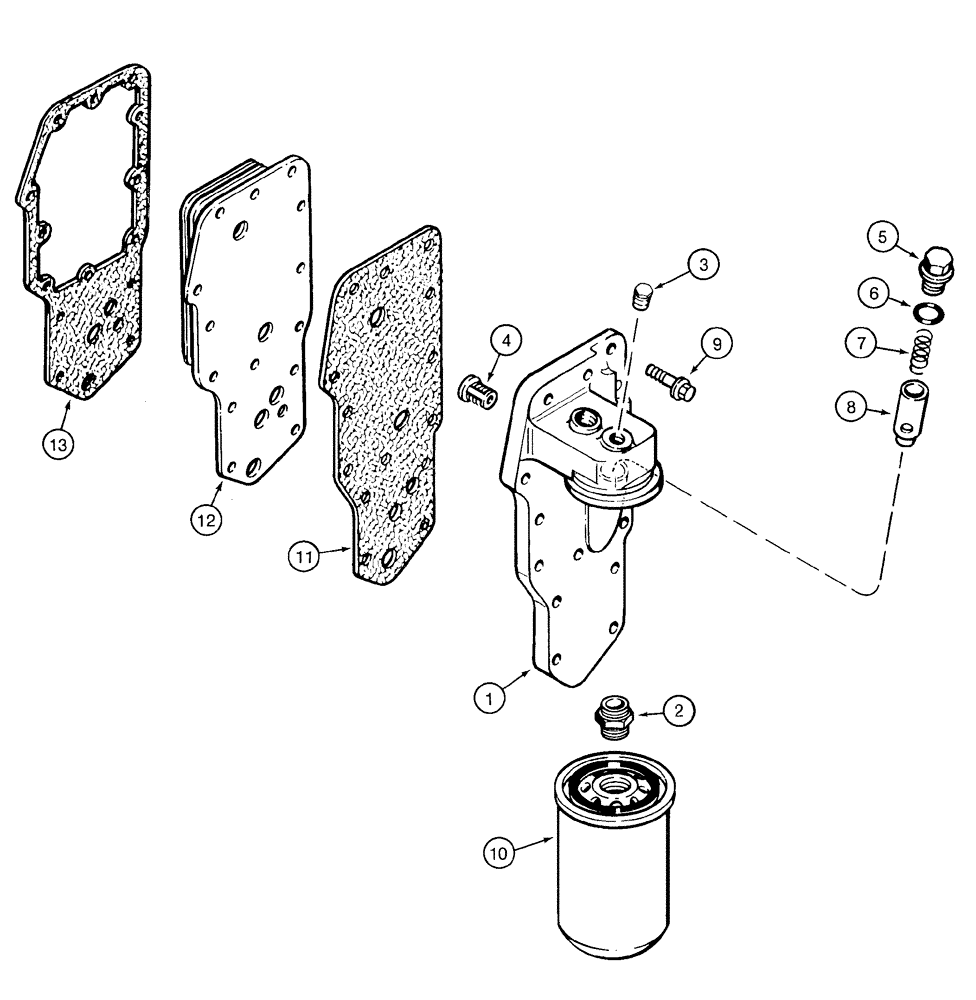

Запчасти Case 9020 (2-22) - OIL FILTER AND COOLER, 4TA-390 ENGINE (02) - ENGINE

J918954

HEAD

ASSEMBLY oil filter and cooler, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD oil filter and cooler

1шт.

2

J909355

ADAPTER

filter head

1шт.

3

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

1шт.

4

J927622

VALVE, PRESSURE RELI

EF relief, pressure, replaces J902338

1шт.

5

J915787

PLUG

threaded

1шт.

6

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

sealing

1шт.

7

J925009

SPRING

compression, replaces J918427

1шт.

8

J918428

PLUNGER

regulator, pressure

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

engine oil, cartridge

1шт.

11

J918257

GASKET

filter head

1шт.

12

J921557

COOLER

CORE oil

1шт.

13

J926760

GASKET

oil cooler core, replaces J918256

1шт.
