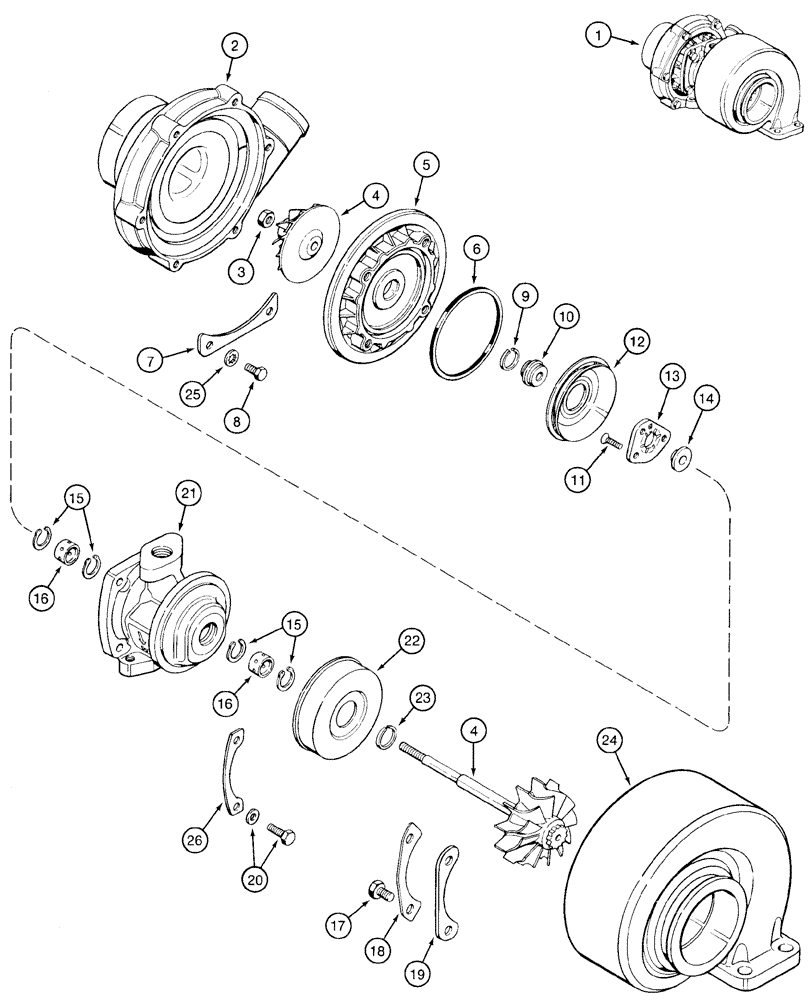

Запчасти Case 9020 (2-20) - TURBOCHARGER, 4TA-390 ENGINE (02) - ENGINE

1

J919129

TURBOCHARGER

ASSEMBLY engine, new production only, order J802290 turbocharger kit shown below, replaces J919135 turbocharger assembly, Includes: Ref. 2 - 26

1шт.

1

JR908293

REMAN-TURBOCHARGER

Turbocharger Assembly\r\n Engine, Remanufactured, Component parts shown on this figure do not apply to the remanufactured assembly no longer available, for service order J802290 turbocharger kit, Includes: Ref. 2 - 26

1шт.

1

JC908293

CORE

Return Part Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT hex, lock

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY turbocharger

1шт.

5

NSS

NOT SOLD SEPARAT

DIFFUSER compressor

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL diffuser

1шт.

Part of J545652

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE diffuser clamping

3шт.

8

NSS

NOT SOLD SEPARAT

SCREW cap

6шт.

Part of J545652

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL split ring, compressor

1шт.

Part of J545652

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW flat head Torx

3шт.

Part of J545652

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

Part of J545652

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING snap, retaining

4шт.

Part of J545652

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING impeller shaft

2шт.

Part of J545652

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT plate retaining

4шт.

18

NSS

NOT SOLD SEPARAT

PLATE lock, turbine housing

2шт.

Part of J545652

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE clamping, turbine housing

2шт.

20

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY hex, lock, includes washer

4шт.

Part of J545652

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING turbine bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL piston ring, turbine

1шт.

Part of J545652

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING turbocharger

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER lock

6шт.

Part of J545652

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE lock, turbine

2шт.

J802290

TURBOCHARGER

KIT - turbocharger, includes: Ref. 1

1шт.

JR802290

REMAN-TURBOCHARGER

9020

1шт.

JC535381

CORE-TURBOCHARGER

Return Part Number

1шт.

J545652

PACKAGE, REPAIR

KIT - overhaul, turbocharger, includes: Ref. 6, 8, 9, 11, 13, 15, 16, 17, 18, 20, 23 and 25, replaces J904772 kit

1шт.
