(2-16) - MANIFOLDS, 4TA-390 ENGINE, EXHAUST MANIFOLD, INTAKE AFTERCOOLER

Запчасти Case 9020 (2-16) - MANIFOLDS, 4TA-390 ENGINE, EXHAUST MANIFOLD, INTAKE AFTERCOOLER (02) - ENGINE

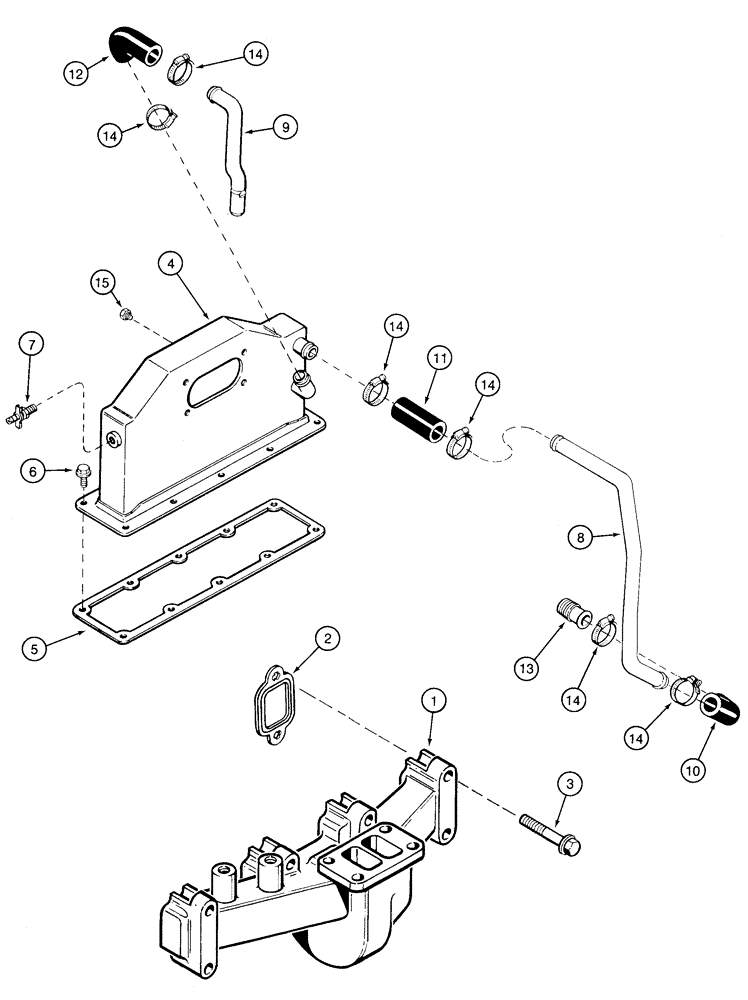

Схема запчастей Case 9020 - (2-16) - MANIFOLDS, 4TA-390 ENGINE, EXHAUST MANIFOLD, INTAKE AFTERCOOLER (02) - ENGINE
7
9
5
14
3
6
14
14
10
15
13
14
14
2
11
8
14
12
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J901635

MANIFOLD

exhaust

1шт.

2

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

8шт.

4

J919805

AFTERCOOLER

air intake

1шт.

5

J914028

GASKET

intake manifold

1шт.

6

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

hex flange, special aftercooler to cylinder head

10шт.

7

J909394

COCK, DRAIN

VALVE

1шт.

8

J914855

TUBE,0.75" OD

aftercooler return

1шт.

9

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

aftercooler drain

1шт.

10

J918607

HOSE,43.20 mm

To Supply Tube

1шт.

11

J918611

HOSE,18.50 mm ID x 63.00 mm

To Aftercooler

1шт.

12

J918608

HOSE,18.50 mm ID x 69.50 mm

4-1/2 inch, (115 mm) long, to drain tube

1шт.

13

J907167

SPLINED COUPLING

block to hose, to supply hose

1шт.

14

J918163

CLIP

spring, Serial Range: type-tubes

6шт.

15

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

1шт.
