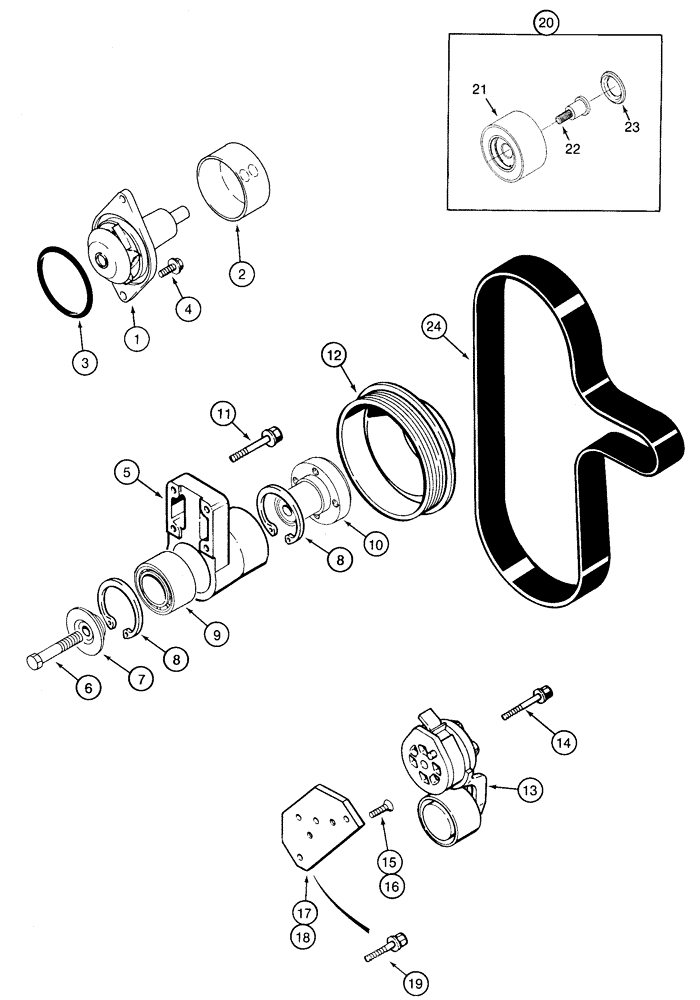

Запчасти Case 9020 (2-12) - WATER PUMP SYSTEM, 4TA-390 ENGINE (02) - ENGINE

A77703

PUMP, WATER

KIT, Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

9020

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J913433

BRACKET

fan pulley, Includes: Ref. 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

BOLT hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

fan hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

ball

1шт.

10

J911924

HUB

fan

1шт.

11

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

12

J914462

PULLEY,163mm OD

fan, 1.1 to 1 ratio

1шт.

13

J918944

BELT TENSIONER

belt

1шт.

14

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

Heavy

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap, Special, Used with Ref. 17, J919985, bracket only

2шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap, Special, Used with Ref. 18, J925207, bracket only

2шт.

17

J919985

SUPPORT

BRACKET belt tensioner, no longer used, for service order Ref. 18, J925207, bracket and Refs. 16 and 19

1шт.

18

J925207

SUPPORT

BRACKET belt tensioner

1шт.

19

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Used with Ref. 18, J925207, bracket only

1шт.

20

A77817

KIT

KIT belt tensioner pulley, used to replace, pulley of J918944, Ref. 13, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

PULLEY belt tensioner

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT pulley

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL bolt

1шт.

24

J911557

V-BELT,27.92mm W x 1422.4mm L, 8 Ribs

Fan

1шт.
