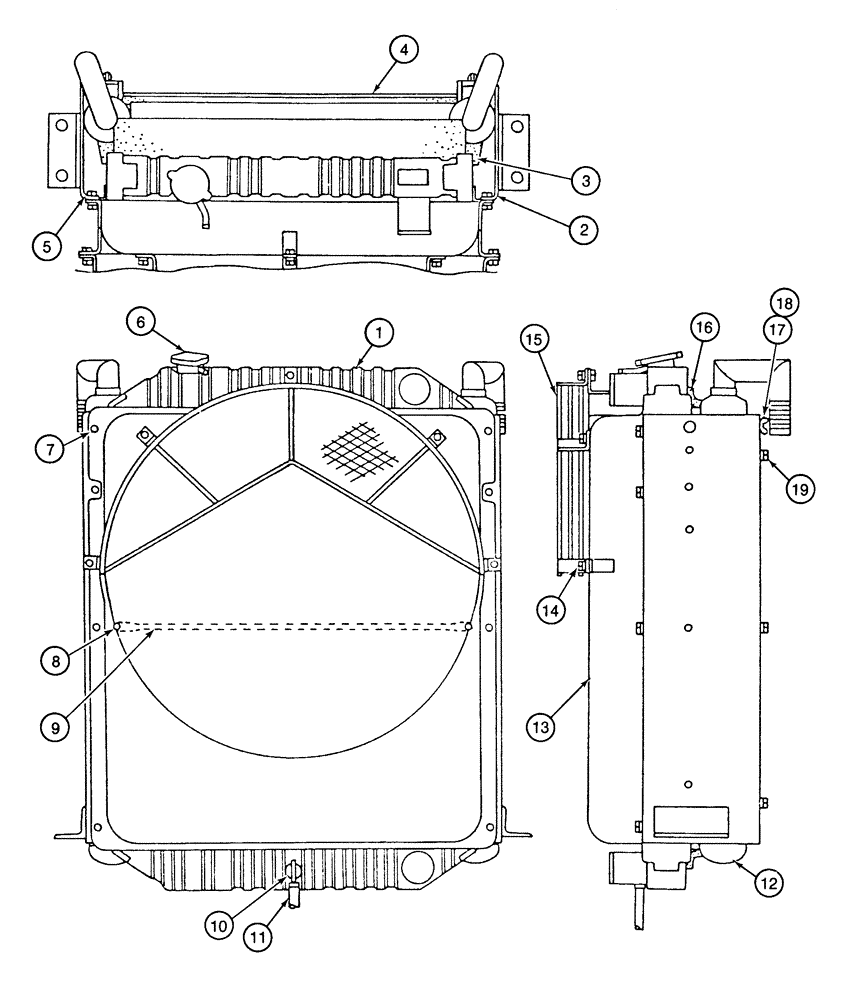

Запчасти Case 9020 (2-10) - RADIATOR ASSEMBLY (02) - ENGINE

150212A1

RADIATOR

ASSEMBLY engine and hydraulic oil cooling, Includes: Ref. 1 - 19

1шт.

1

156438A1

RADIATOR

CORE engine, cooling

1шт.

2

156441A1

BRACKET

radiator core, support rear

1шт.

3

156706A1

COVER

side

1шт.

4

150224A1

GRILLE

SCREEN radiator, special wire gauze

1шт.

5

156440A1

BRACKET

radiator core, support front

1шт.

6

156685A1

CAP

radiator

1шт.

7

156799A1

SPECIAL BOLT,Sems

hex, special with captive washer

8шт.

8

157226A1

BOLT

hex, special with captive washer

2шт.

9

156598A1

ROD

radiator brace

1шт.

10

156686A1

BREATHER ASSY.

ADAPTER coolant, drain hose

1шт.

11

156687A1

HOSE

11-13/16 inch (300 mm) long

1шт.

12

156439A1

CORE

hydraulic oil cooling

1шт.

13

156443A1

SHROUD

radiator

1шт.

14

156933A1

BOLT

hex, self-locking fan guard retaining, with captive washer

5шт.

15

150218A1

GUARD

fan, replaces 156444A1

1шт.

16

156702A1

PACKING

PAD insulation

2шт.

17

156606A1

BOLT,Wing, M6

special, wing head type, Replaces 156690A1

2шт.

18

892-11006

LOCK WASHER,M6

2шт.

19

156442A1

BOLT

hex, self-locking with captive washer

6шт.
