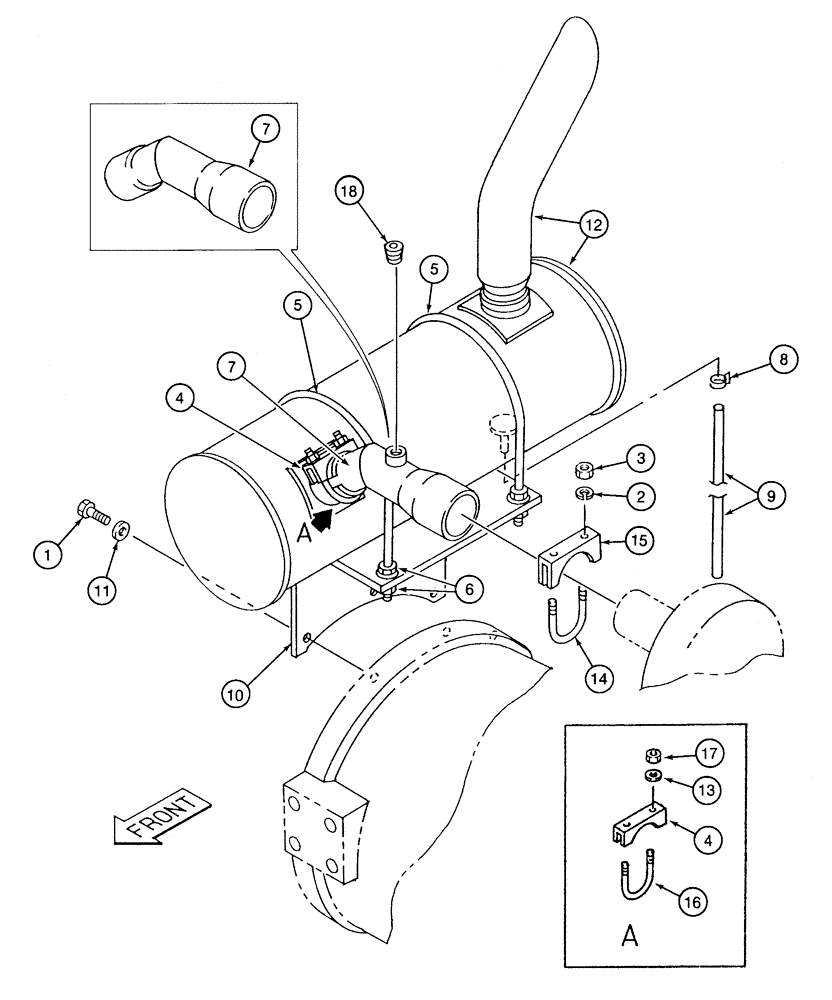

Запчасти Case 9020 (2-08) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

2

892-11010

LOCK WASHER,M10

2шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

4

158238A1

CLAMP

saddle, replaces clamp 151199A1

1шт.

5

151341A1

U-BOLT,M8 x 1.25 x 210mm W x 206.50mm L

BOLT "U"

2шт.

6

150469A1

FLANGE NUT

hex flange, special

8шт.

7

151338A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST with test port, replaced by 158237A1

1шт.

7

158237A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST without test port, replaces 151338A1

1шт.

8

151367A1

COLLAR

adjustable at muffler

1шт.

9

150657A1

TUBE

drain muffler

1шт.

10

151334A1

SUPPORT

muffler mounting

1шт.

11

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

3шт.

12

158236A1

MUFFLER

exhaust, replaces 150947A1

1шт.

13

153081A1

WASHER

flat, special

2шт.

14

156694A1

U-BOLT,M10 x 86mm W x 80mm L

BOLT "U"

1шт.

15

156695A1

SUPPORT

CLAMP saddle

1шт.

16

157786A1

U-BOLT

BOLT "U"

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

18

150990A1

PLUG

pipe test port, installs in exhaust pipe 151338A1

1шт.
