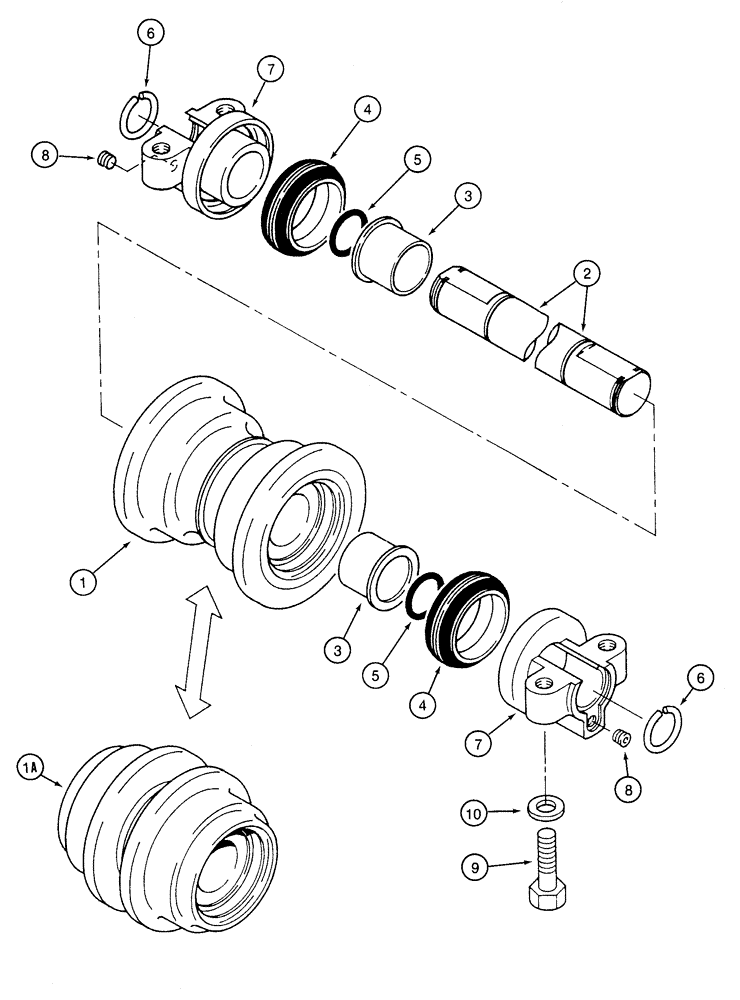

Запчасти Case 9020 (5-12) - TRACK ROLLERS (11) - TRACKS/STEERING

152170A1

ROLLER ASSY.

track, with outer flanges, Includes: Ref. 1 - 8

10шт.

152181A1

ROLLER ASSY.

track, with inner flanges, Includes: Ref. 1 - 8

4шт.

1

152173A1

SHIFTER ROLLER

HUB track roller, outer flanges

1шт.

1a

152183A1

SHIFTER ROLLER

HUB track roller, inner flanges

1шт.

2

152045A1

WHEEL SHAFT

roller

1шт.

3

152570A1

BUSHING

Roller

2шт.

4

152729A1

OIL SEAL,81.5mm ID x 104.8mm OD x 29mm Thk

ASSEMBLY face, includes two rings and two seals

2шт.

5

154625A1

O-RING

roller shaft

2шт.

6

150709A1

WIRE

wire shaft, retaining

2шт.

7

152048A1

COLLAR

BRACKET mounting, track roller

2шт.

8

150821A1

PLUG

special

2шт.

9

827-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

replaces 828-16065 Hex, M16 x 65, 10.9

56шт.

10

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

flat, special, 16 mmI, replaces 150991A1

56шт.
