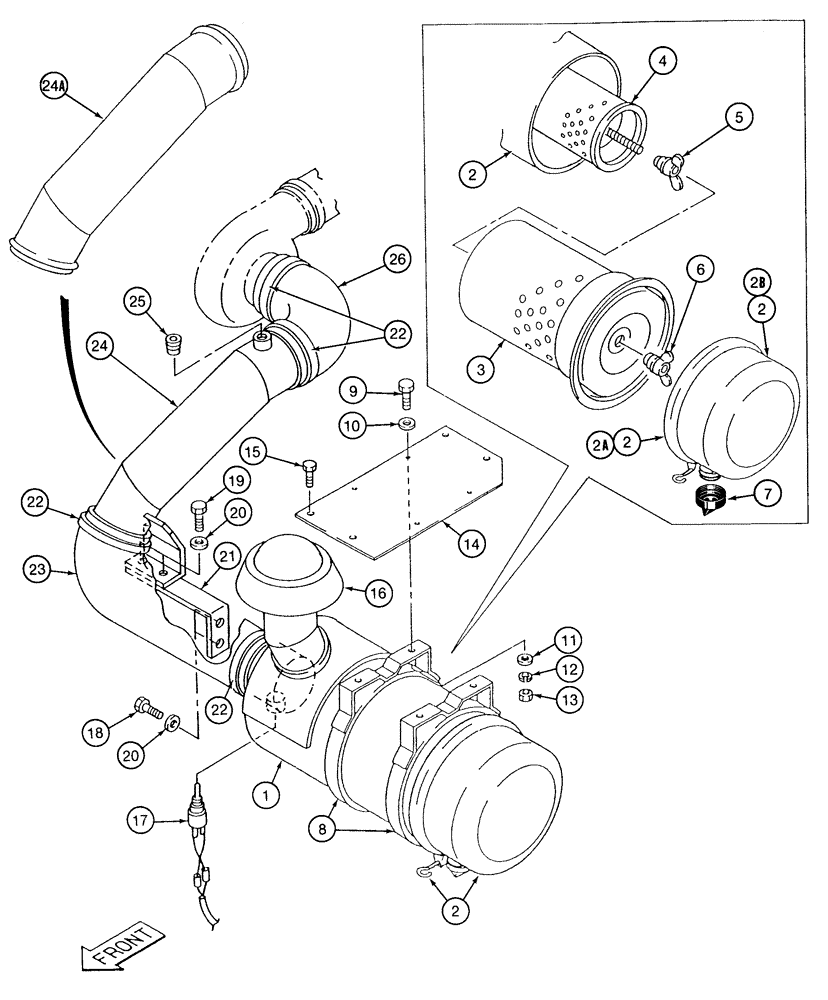

Запчасти Case 9020 (2-06) - AIR CLEANER SYSTEM (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
151166A1
AIR CLEANER
ASSEMBLY, Includes: Ref. 2 - 7
1шт.
150832A1
AIR CLEANER
HOUSING ASSEMBLY, Includes: Ref. 2 - 7
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING air cleaner, includes end cap and clamp, Includes: Ref. 2A and 2B
1шт.
2a
R15731
CLAMP
air cleaner end cap
1шт.
2b
NSS
NOT SOLD SEPARAT
CAP end
1шт.
3
150478A1
ELEMENT
outer, primary
1шт.
4
150482A1
ELEMENT
inner, secondary
1шт.
5
156497A1
WING NUT
includes, gasket secondary element
1шт.
6
156497A1
WING NUT
includes, gasket primary element
1шт.
7
156669A1
VALVE
CUP dust air cleaner
1шт.
8
150118A1
BAND
CLAMP air cleaner mounting
2шт.
9
627-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd
4шт.
10
150409A1
WASHER
flat, special, 10.5 x 21 x 3.2 mm
4шт.
11
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
12
892-11008
LOCK WASHER,8mm ID
4шт.
13
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
4шт.
14
150122A1
BRACKET
PLATE air cleaner mounting
1шт.
15
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
Full threads
4шт.
16
150111A1
CAP
COVER air inlet, also called a rain cap
1шт.
17
150675A1
SENSOR
SWITCH air, restriction indicator
1шт.
19
627-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd
2шт.
20
150409A1
WASHER
flat, special, 10.5 x 21 x 3.2 mm
4шт.
21
150249A1
BRACKET
support, air inlet tube
1шт.
22
150902A1
COLLAR
adjustable
4шт.
23
150279A1
INTAKE AIR HOSE,76.20 mm ID x 240.00 mm
Formed, Air cleaner to engine
1шт.
24
150281A1
AIR INTAKE TUBE,2731, 236 mm Length
pipe, air inlet machines, prior to PIN 0004
1шт.
24a
158074A1
PIPE
air inlet machines, with PIN 0004 and after
1шт.
25
150990A1
PLUG
pipe, used with 150281A1 tube
1шт.
26
151349A1
INTAKE AIR HOSE,76.20 mm ID x 130.00 mm
7-7/8 inch (201 mm) long, Machines prior to PIN 0004
1шт.
26
158073A1
INTAKE AIR HOSE,76.20 mm ID
Machine with PIN 0004 and after
1шт.
Выбрано товаров: 31
