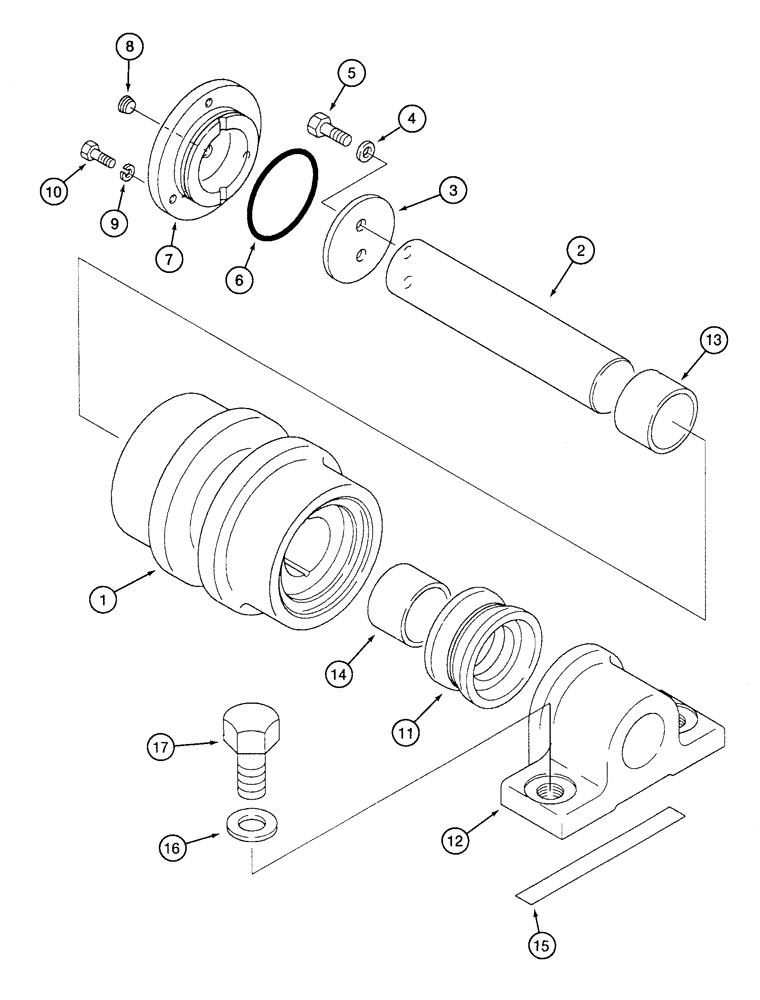

Запчасти Case 9020 (5-10) - TRACK CARRIER ROLLER (11) - TRACKS/STEERING

152204A1

ASSEMBLY

ROLLER carrier, track machines, Includes: Ref. 1 - 14, Serial Range: -199

4шт.

158774A1

ROLLER

ASSEMBLY carrier, track machines, Includes: Ref. 1 - 14, Start Serial: 199

4шт.

1

152207A1

ROLLER

carrier track machines, Serial Range: -199

1шт.

1

158775A1

ROLLER

carrier track machines, Start Serial: 199

1шт.

2

152213A1

SHAFT

carrier roller machines, Serial Range: -199

1шт.

2

158739A1

SHAFT

carrier roller machines, Start Serial: 199

1шт.

3

152230A1

PLATE

RETAINER shaft (thrust plate)

1шт.

4

150732A1

WASHER

special, 10 mm

2шт.

5

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

6

154667A1

O-RING

cover, replaces 150200A1

1шт.

7

152224A1

COVER

end, carrier roller

1шт.

8

150821A1

PLUG

special, carrier roller

1шт.

9

892-10008

LOCK WASHER,M8

3шт.

11

150359A1

SEAL

ASSEMBLY face carrier roller, includes two seals and two rings

1шт.

12

152219A1

BRACKET

mounting, carrier roller machines, Serial Range: -199

1шт.

12

158740A1

BRACKET

mounting, carrier roller machines, Start Serial: 199

1шт.

13

158776A1

BUSHING,46mm ID x 70mm OD x 42mm L

roller, cover end, fabricated

1шт.

14

158777A1

BUSHING,46mm ID x 50mm OD x 38mm L

carrier roller, bracket end, fabricated

1шт.

15

150009A1

SHIM

bracket height, 0.03 inch thick

1шт.

16

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

flat, special bracket, replaces 150996A1

8шт.

17

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

Full threads, Replaces 626-20050

8шт.

10

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Replaces 628-8030

3шт.
