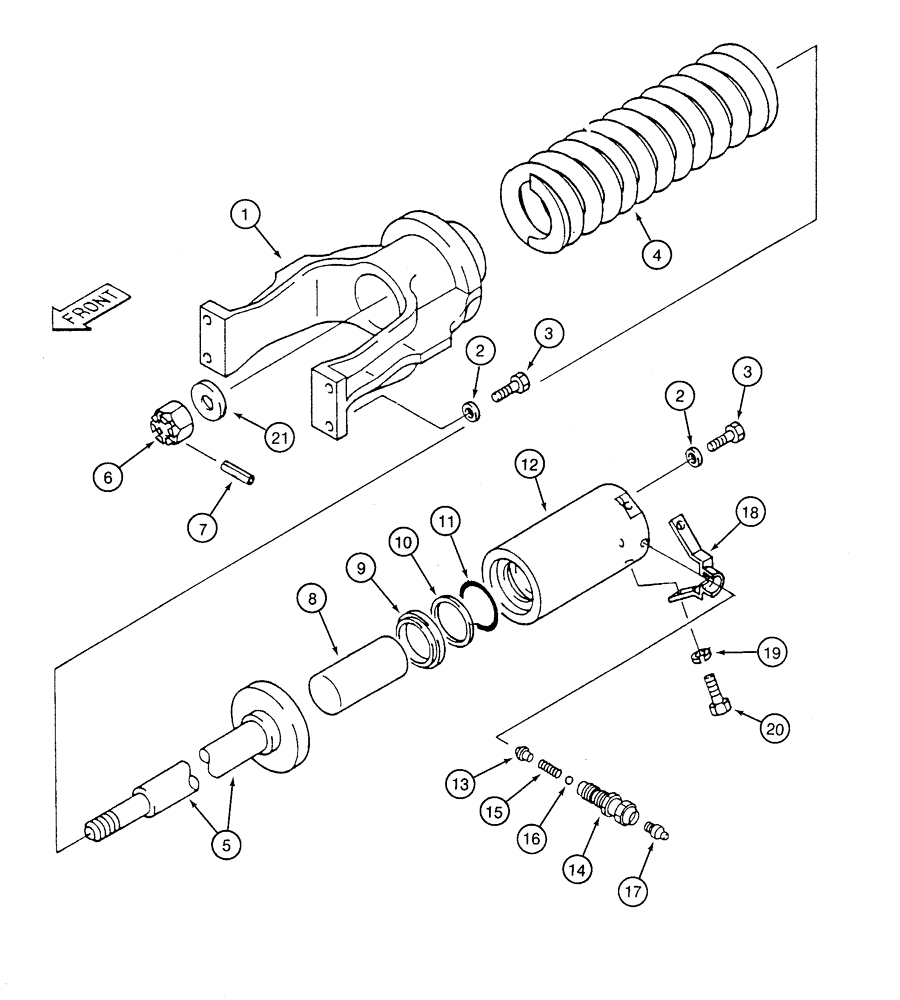

Запчасти Case 9020 (5-08) - TRACK ADJUSTER (11) - TRACKS/STEERING

1

152714A1

YOKE

UNIVERSAL JOINT YOKE track adjuster

2шт.

2

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

3

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Hex, M16 x 50, 10.9, Full Thd

12шт.

4

150069A1

SPRING

track tension

2шт.

5

150072A1

ROD

threaded, tension spring guide

2шт.

6

825-3048

SLOTTED NUT,M48 x 5, Cl 8

hex, slotted, 48 mm - 5 slotted

2шт.

7

738-1880

LOCK PIN,8mm OD x 80mm L, Slotted

roll, 8 x 80 mm

2шт.

152522A1

CYLINDER ASSY.

ASSEMBLY track adjuster, Includes: Ref. 8 - 20

2шт.

8

152256A1

PISTON ROD

1шт.

9

151686A1

SEAL,70mm ID x 84mm OD x 11mm Thk

wiper rod

1шт.

10

150276A1

BACK-UP RING

rod seal

1шт.

11

154668A1

O-RING

piston rod

1шт.

12

152525A1

CYLINDER

TUBE track adjuster

1шт.

150107A1

LUBE NIPPLE

ASSEMBLY check, Includes: Ref. 13 - 17

1шт.

13

150120A1

CAP

POPPET check valve

1шт.

14

150112A1

VALVE SEAT

BODY check valve

1шт.

15

150115A1

SPRING

check valve

1шт.

16

150897A1

BALL

check

1шт.

17

153630A1

LUBE NIPPLE

FITTING grease, straight

1шт.

18

150248A1

GUARD

BRACKET mounting, check valve

1шт.

19

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

2шт.

20

626-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

21

152586A1

SPACER

WASHER special, if used

1шт.
