(9-68) - DECALS, OPERATORS COMPARTMENT - ENGLISH LANGUAGE

Запчасти Case 9020 (9-68) - DECALS, OPERATORS COMPARTMENT - ENGLISH LANGUAGE (09) - CHASSIS

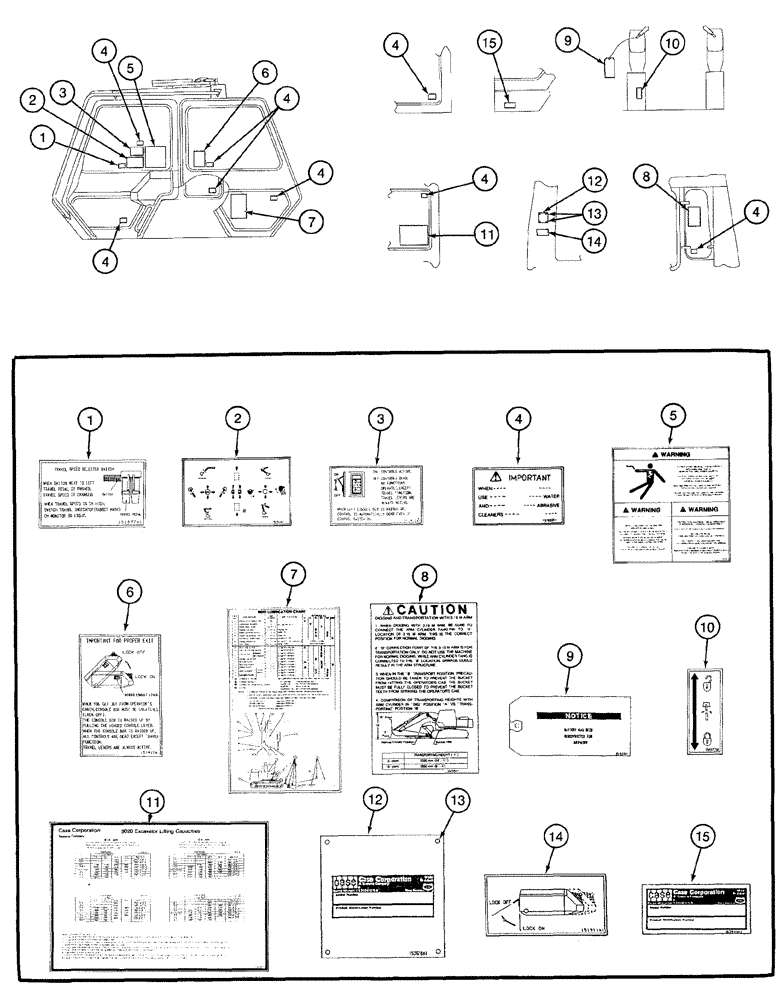

Схема запчастей Case 9020 - (9-68) - DECALS, OPERATORS COMPARTMENT - ENGLISH LANGUAGE (09) - CHASSIS
4
5
6
4
15
12
3
15
2
4
14
7
13
3
1
9
8
11
5
1
10
8
4
11
4
7
4
9
13
4
2
6
10
12
4
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

158536A1

DECAL

Travel Speed Selector Switch, replaces 151897A1

1шт.

2

151971A1

LABEL

DECAL control pattern

1шт.

3

151902A1

LABEL

DECAL control, on/off On - Off

1шт.

4

158411A1

DECAL

Important, when cleaning cab windows, replaces 151933A1

8шт.

5

158410A1

DECAL

Warning, electrocution can result from contact, replaces 156409A1

1шт.

6

151917A1

LABEL

DECAL Important for proper exit, lock on/lock off

1шт.

7

158533A1

DECAL

lubrication chart, replaces 156451A1

1шт.

8

150208A1

LABEL

DECAL Warning, digging and transportation with, 3.15 m arm

1шт.

9

151937A1

ADHESIVE STRIP

TAG maintenance

1шт.

10

151927A1

DECAL

DECAL swing lock

1шт.

11

156448A1

LABEL

DECAL 9020 Excavator lifting capacities

1шт.

12

153928A1

DECAL

PLATE Product Identification Number inside cab; includes manufacturer, model number and PIN

1шт.

13

151586A1

RIVET

blind

2шт.

14

151911A1

LABEL

DECAL slide lever, lock on/lock off

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE Product Identification Number outside cab, welded on front of center section of turntable; includes model number and PIN

1шт.
